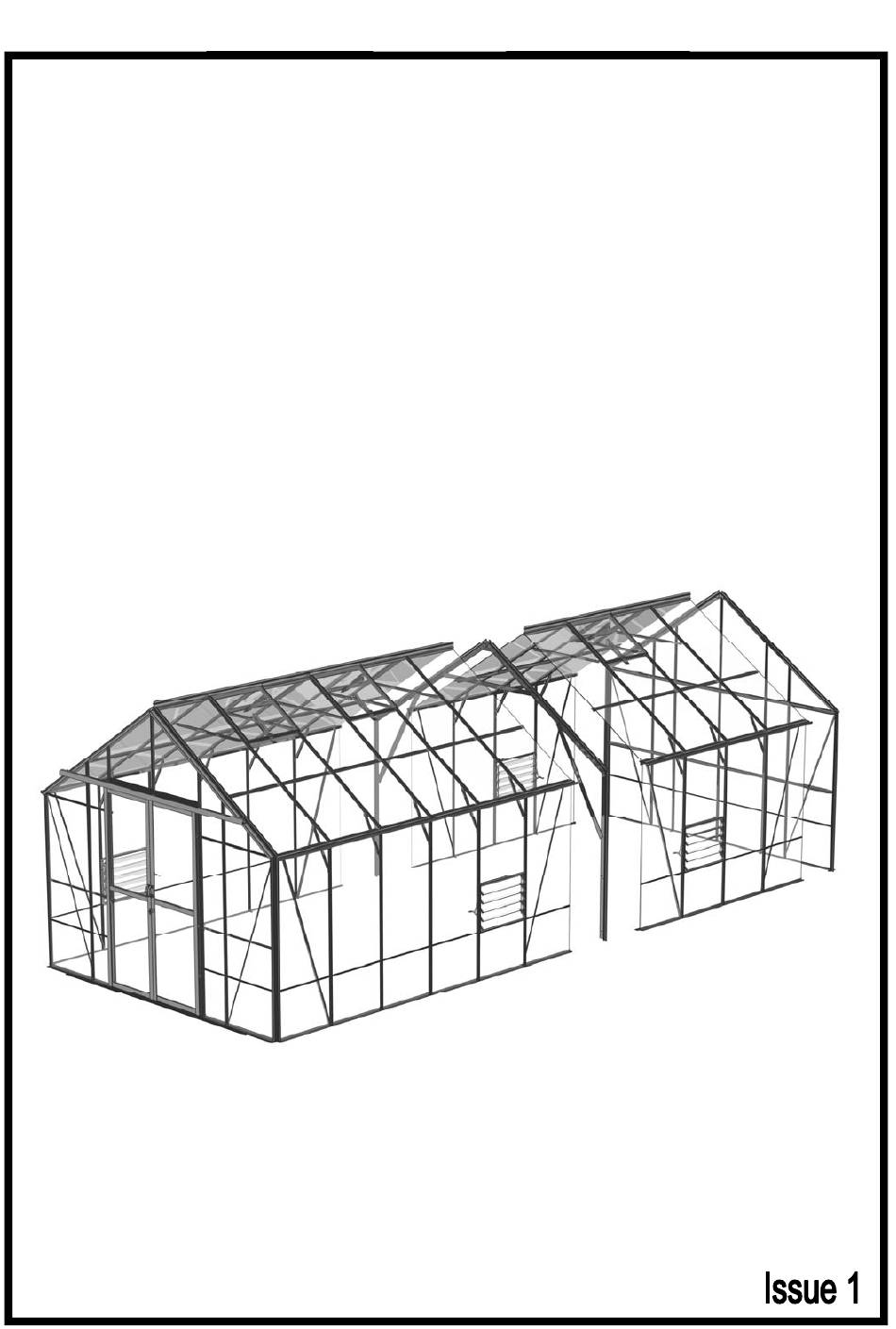

  • Page 1 Model HE-NAS EXT8 10ft X 8ft Extension Assembly Instructions...
  • Page 2 Thank you for purchasing your new Hercules greenhouse. We recommend you familiarise yourself with the instructions and read all safety information before you commence assembly. This instruction manual is also available online at www.greenhousepeople.co.uk in our technical help section should you need to reprint it. Should you require any addi- tional advice you can always call us on 01782 388811.
  • Page 3 Base Preperation For buildings larger than 12 foot long just add 620mm for every 2 foot increase in size. OPTION 1 - Slab Base Recommended 3’ X 2’ Slab (910mm X 610mm) 2” thickness (50mm) 5 : 1 OPTION 2 - Brick Plinth For buildings larger than 12 foot long just add 620mm for every 2 foot increase in size.
  • Page 4 Part Size Section Profile 8 x 10 Extension (mm) Base bracket Diagonal 1,742 Bracing Cill 8' 2,480 Extension Side 1,670 Glazing Gutter 8' 2,480 Extension Cill Extension Bracket P800 Gutter Extension Bracket Ridge Extension Plate Eaves Extension Plate A-Frame 1,179 Brace Side Bar 1,628...
  • Page 5 Part Size Section Profile 8 x 10 Extension (mm) Roof 1,872 Glazing Ridge 8' 2,480 Extension Ridge Extension Bracket Ridge Cantilever Eaves Cantilever P702 Hanging 2,508 Basket Rail 8' Extension IMPORTANT Make sure you insert all the bolts needed into the glazing bars.
  • Page 6 Side Assembly P800 Right hand side Part Size 576 2 576 2 576 2 Quantity Number (mm) 588 1 588 1 588 1 1742 2508 1670 Partition 2508 If you have a partition consider its location at this 576 (M6) stage.
  • Page 7 IMPORTANT Make sure you insert all the bolts needed into the glazing extra bars. Aslo bolts remember to for your insert the louvre glazing rubber. These can not be fitted later.
  • Page 9: Frame Assembly

    Frame Assembly Main building side Main building front IMPORTANT Do not fix the greenhouse to the base untill the greenhouse is fully glazed.
  • Page 10 576 6 IMPORTANT Do not fix the greenhouse to the base untill the greenhouse is fully glazed. 576 1 588 4 576 1 576 1 588 4 576 1...
  • Page 11 IMPORTANT Make sure you insert all the bolts needed into the glazing bars. Aslo remember to insert the glazing rubber. These can not be fitted later. Internal View Internal View...
  • Page 12: A-Frame Assembly

    A-Frame Assembly Front View Rear View...
  • Page 13 Front View Rear View...
  • Page 16 Rear View...
  • Page 17 Rear View Rear View Main building rear...
  • Page 18 Front View Internal View...
  • Page 19: Roof Assembly

    Roof Assembly P702 Front View Internal View...
  • Page 20 Front View IMPORTANT Make sure you insert all the bolts needed into the glazing bars. Aslo remember to insert the Vent Location glazing You need to decide at this point rubber. These where you want you’re roof vent. can not be Insert an extra bolt (576) into the fitted later.
  • Page 21 Internal View Internal View...
  • Page 22 Front View Internal View...
  • Page 23 If you are fitting hanging basket bars to a building with an extension you will need to do the following. The main building’s hanging basket bar will need to be cut down with a hacksaw to attach to the glazing bar in front of the A-frame. The extensions hanging basket bar is already notched out so that it can be clamped between the roof bar brace of the A-frame and the roof glazing bar.
