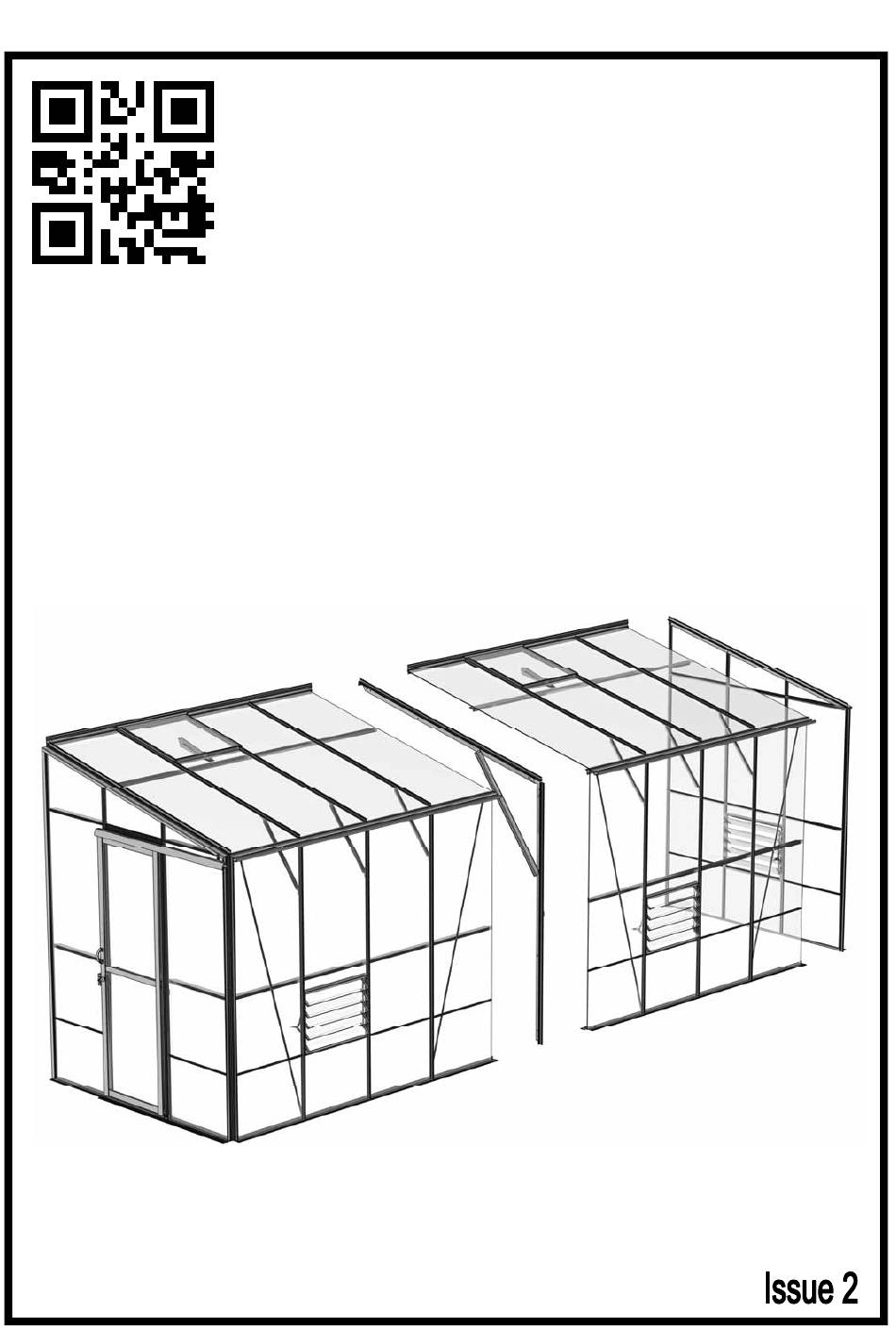

- Page 1 HE-HAS 6ft Deep Extension Assembly Instructions...
- Page 2 Thank you for purchasing your new Hercules greenhouse. We recommend you familiarise yourself with the instructions and read all safety information before you commence assembly. This instruction manual is also available online at www.greenhousepeople.co.uk in our technical help section should you need to reprint it. Should you require any addi- tional advice you can always call us on 01782 388811.
- Page 3 Base Preperation Base Preperation For buildings larger than 12 foot long just add 620mm to measurement ‘B’ for every 2 foot increase in size. Recommended 3’ X 2’ Slab (910mm X 610mm) 2” thickness (50mm) 5 : 1 For buildings larger than 12 foot long just add 620mm to measurement ‘B’...
- Page 4 Part Size Section Profile 6 x 8 Extension (mm) Base bracket Diagonal 2038 Bracing Cill Extension Bracket Gutter Extension Bracket Front 1979 Glazing Bar Gutter 8’ 2480 Extension Cill 8’ 2480 Extension A-Frame 1937 Brace Side Bar 1895 Brace Roof Bar 1022 Brace 10'W Eaves...
- Page 5 Part Size Section Profile 6 x 8 Extension (mm) Eaves Cantilever Hanging 2,508 Basket Rail 8' Extension Roof 1935 Glazing Ridge 8’ 2480 Extension...
- Page 6 Front Assembly 576 3 576 3 576 4 588 1 588 1 Part Size IMPORTANT Number (mm) Quantity Make sure you insert all 2038 the bolts 2480 needed into the glazing 2480 bars. Aslo remember to insert the 1979 glazing 576 (M6) rubber.
- Page 7 extra bolts for your louvre...
- Page 8 Frame Assembly Main building front Main building gable IMPORTANT Make sure you insert all the bolts needed into the glazing bars. Aslo remember to insert the glazing IMPORTANT rubber. These Do not fix the greenhouse can not be to the base untill the fitted later.
- Page 10 A-frame Assembly Part Size Number (mm) Quantity 1022 1937 1895 1979 1935 579 (M6) 588 (M6) 588 7 IMPORTANT Make sure you insert all the bolts needed into the glazing bars. Aslo remember to insert the glazing IMPORTANT rubber. These Do not fix the greenhouse can not be to the base untill the...
- Page 13 588 6...
- Page 16 Extension front...
- Page 18 Main building gable Main building ridge...
- Page 20 Extension ridge Roof Assembly Part Size Number (mm) Quantity 2508 1935 2480 576 (M6) 579 (M6)
- Page 21 Hanging Basket Rail and Cantilevers Remember to insert extra bolts into the roof glazing bars before attaching them to the gutters. Vent Location You need to decide at this point where you want your roof vent. Insert an extra bolt (576) into the glazing bar (924) either side of the vents...
- Page 22 Clear Silicone...
- Page 23 Internal View Return to the main instruction book, section 5, page 16...
- Page 24 The Greenhouse People Unit 19, Blythe Park Cresswell Stoke-on-Trent Staffordshire ST11 9RD 01782 388811...
