Introduction

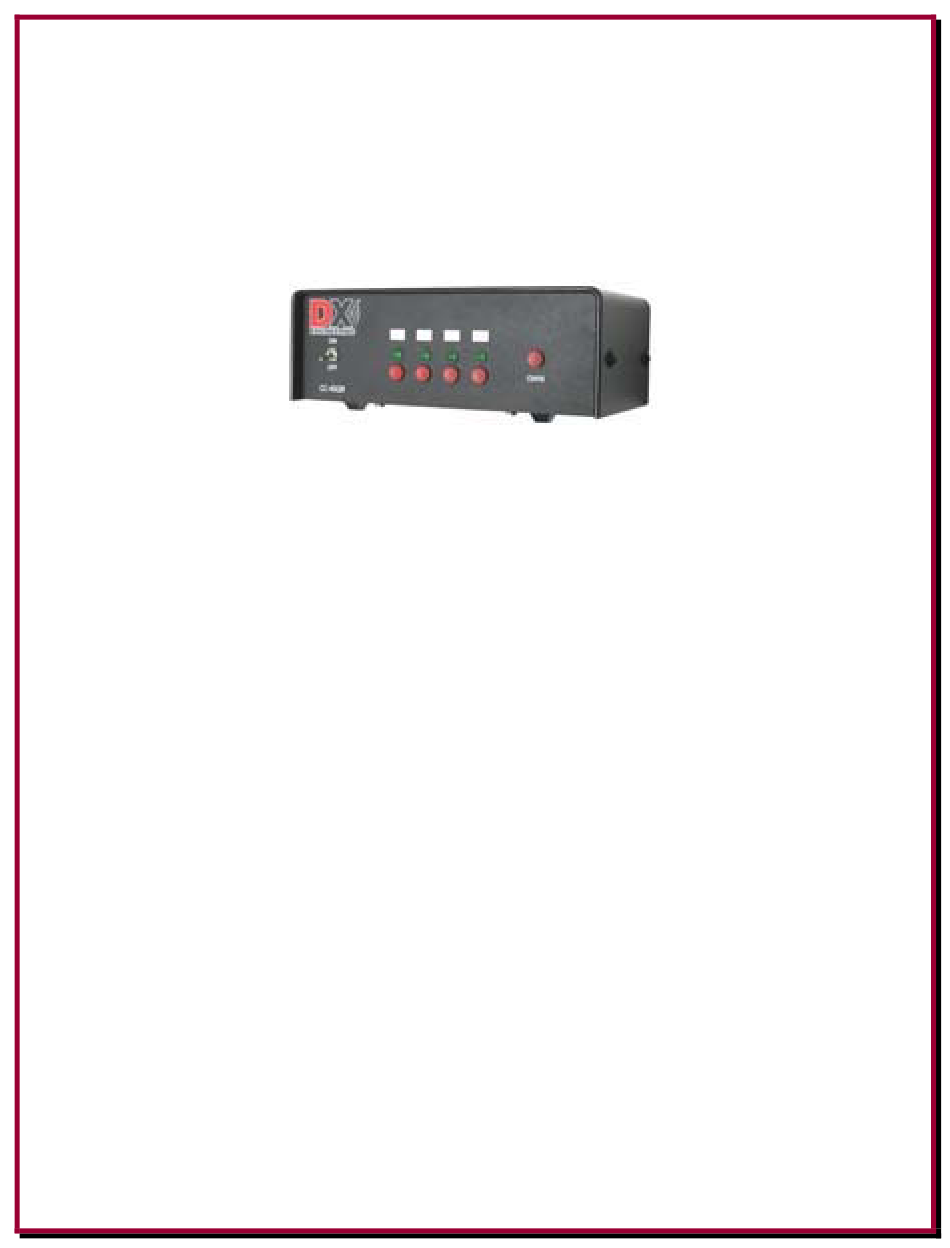

This is the replacement control console for the DXE-TFS4-series Hybrid Four-Square Controllers.
The DX Engineering Four-Square Control Console four directional momentary contact switches,
an Omni switch, and four green LED's (light emitting diodes) to show the systems current transmit
and receive direction.

Features

Drop in control replacement for other vertical antenna transmit four square systems providing
instant switching to one of four directions.
Antenna pattern directional selection switches and indicators
• One green LED illuminates to indicate which single direction has been selected. All four
LEDs are illuminated when OMNI is selected.
• Momentary contact push button switches below each LED select a single direction,
providing instant switching of directions without rotating a switch through unwanted
positions.
• White notepad blocks for writing the direction corresponding to each switch position.
• When OMNI is pushed, all four antennas are selected to produce an omnidirectional antenna
pattern and all four LEDs are illuminated. The omnidirectional option in the DXE-CC-
4SQR Control Console is only functional when using the control console with DX
Engineering Transmit Four Square systems.
When pushed again, the controller will return to last selected direction.
While in the OMNI mode, a new direction may be selected immediately by pushing its
corresponding switch.
