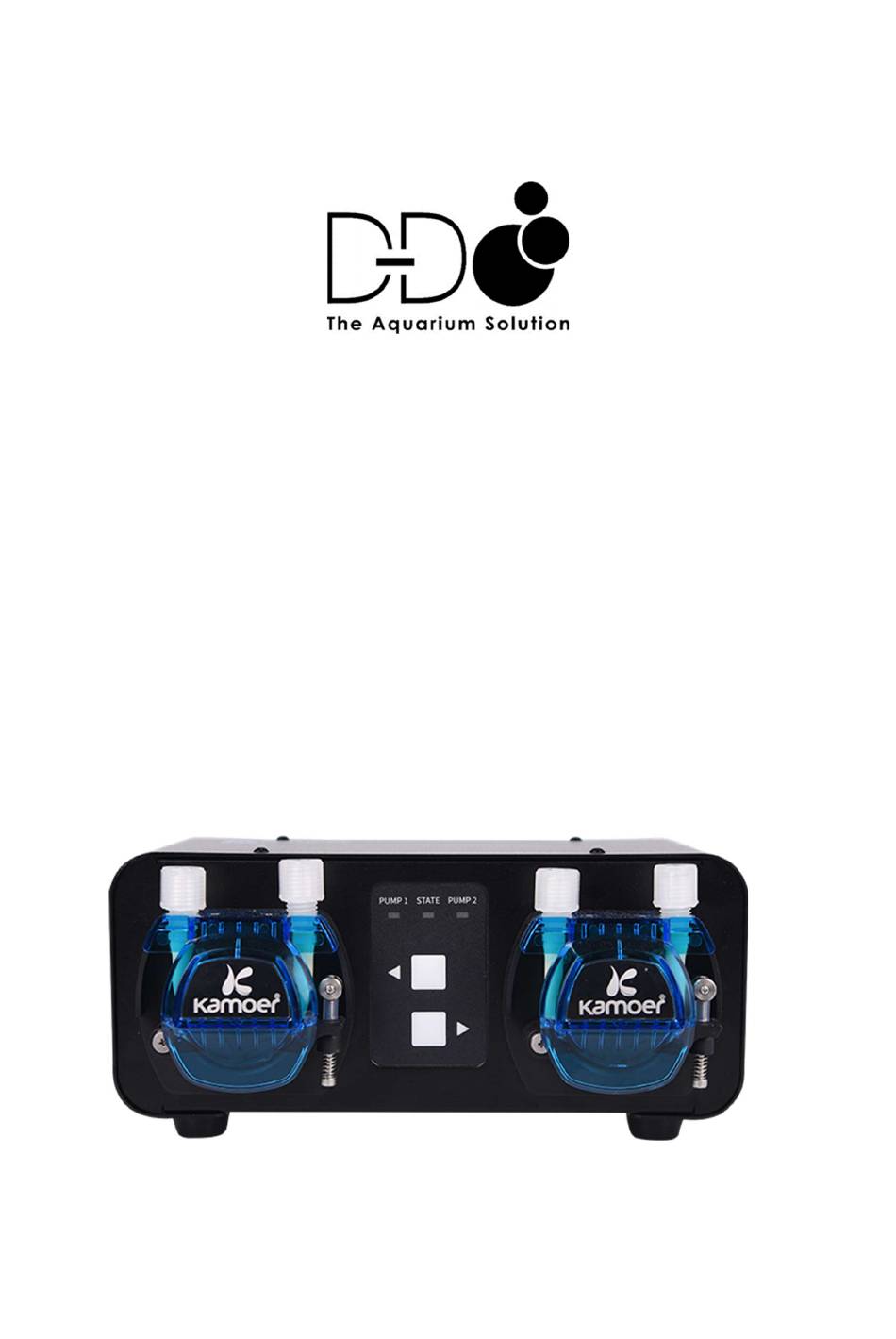

- Page 1 WATER CHANGE PUMP USER MANUAL...
- Page 2 Index Product Information Introduction Product Features Unpacking Product Layout Status lights Installation Pipework and sensor diagrams Installing the App Controlling the pump Direct connection Connection through a router Programming the Pump Main program settings page Setting an auto water change program Testing the water change plan volumes Performing a manual water change Setting container volumes...
-
Page 3: Product Information
Product information Introduction The X2S is a two channel app controlled water change pump. Through the App users can set the pump to perform regular automated water changes or if required a manual change at the press of a button. This unit also comes equipped with an automated top up system to replace water lost through evaporation and an emergency sensor to prevent overfilling. - Page 4 Product Layout 1. Waste water outlet 2. Waste water inlet 3. Clean water outlet 4. Clean water inlet 5. Left pump status indicator 6. Power/Wi-Fi Status indicator 7. Right pump status indicator 8. Left Pump manual button 9. Right pump manual button 1.
-
Page 5: Installation
The ‘Pump 1’ and ‘Pump 2’ status lights indicate if the pump heads are running. When the pump head is running the corresponding indicator will be on and when the pump stops the indicator will switch off. Installation The X2S pump heads are self-priming. When there is big difference between the inlet and the outlet height, siphoning may occur. - Page 6 Make sure the app is closed and open the Wi-Fi settings page on the mobile device. The Kamoer X2S pump should appear in the list of available devices. Select the pump and connect using the password “a12345678”.
- Page 7 Connection through a router Connect the power supply to the X2S and make sure that your mobile device is connected to the home Wi-Fi network. Please note the device does not support 5G Wi-Fi and cannot use a 5G Wi-Fi hotspot. If your internet supplier’s router is running a mixed mode 2.4ghz/5ghz Wi-Fi network please check their online instructions, website or support forum to de-synchronise the bands into two separate 2.4 and 5ghz networks before attempting to connect the pump.
-
Page 8: Programming The Pump
Programming the pump Main device settings page After selecting the device from the available list in the app home page the device settings page will be shown. In this you can a. Auto Change: This is the main device page used for setting up the automatic water change program. - Page 9 Setting up an auto water change program a. Selected run times. b. Start time for the next water change program. c. Percentage of the tank volume to be changed. d. Volume of water to be changed. e. Total volume of the aquarium. Frequency of water change program e.g.
- Page 10 is set to perform a total water change of 1.8 litres over 6 of the available time slots. As a result, at the beginning of each time slot the X2S will perform a 300ml water change. Please note that the maximum pump speed of each head is approximately 300ml per minute, so the maximum volume of water exchange is approximately 17.5 Litres per time slot, to allow for the removal of water and then refilling.
- Page 11 activate if the finishing water level is lower than the original. This will make accurate calculations difficult for this procedure. Once the heads have been calibrated and the pump is in position with all the tubing connected you will need to perform a test run. Even though the pump heads have been calibrated the performance can vary slightly due to hose lengths and other external factors.
- Page 12 Performing a manual water change To change water in the aquarium system manually via the app select the ‘Manual Change’ icon at the bottom of the device settings page. In this page the pump heads can be operated manually. Before performing a manual water change ensure the inbuilt freshwater auto top up has been disabled in the settings page and reset when finished.
- Page 13 Container Volumes The app can monitor the volume of water in the clean water and wastewater containers. a. Container settings page. b. Wastewater container. c. Clean water container. d. Total volume of wastewater container. e. Total volume of clean water container. Settings page to activate container monitoring.
- Page 14 Settings Page a. Settings page – Tap on the gear symbol to enter the settings page. b. Work Mode / Dosing Mode – The X2S can be used as a water change device (Work Mode) or set to run as a twin head dosing pump (Dosing Mode) for the addition of additives.
- Page 15 Pump head calibration When the pump is initially set up, pump tubes have been replaced, or if the unit has been in service for a period of time it is worth calibrating pump heads to ensure accuracy. To calibrate open the app and select the device. Tap the ‘Setting’...
- Page 16 Once the pump has stopped remove the outlet hose from the measuring cylinder and stand the measuring cylinder on a flat level surface. Use the scale on the side to determine the volume of liquid. Enter the volume of liquid collected in ml by tapping in the space next to “Enter volume”. Select calibration complete at the bottom of the page and the pump will calculate the flow rate from the time and volume you have entered.
-
Page 17: Warranty
WARRANTY: Should any defect in material or workmanship be found within 12 months of the date of purchase D-D The Aquarium Solution Ltd undertakes to repair, or at our decision, replace the defective part free of charge. Our policy is one of continual technical improvement and we reserve the right to...
