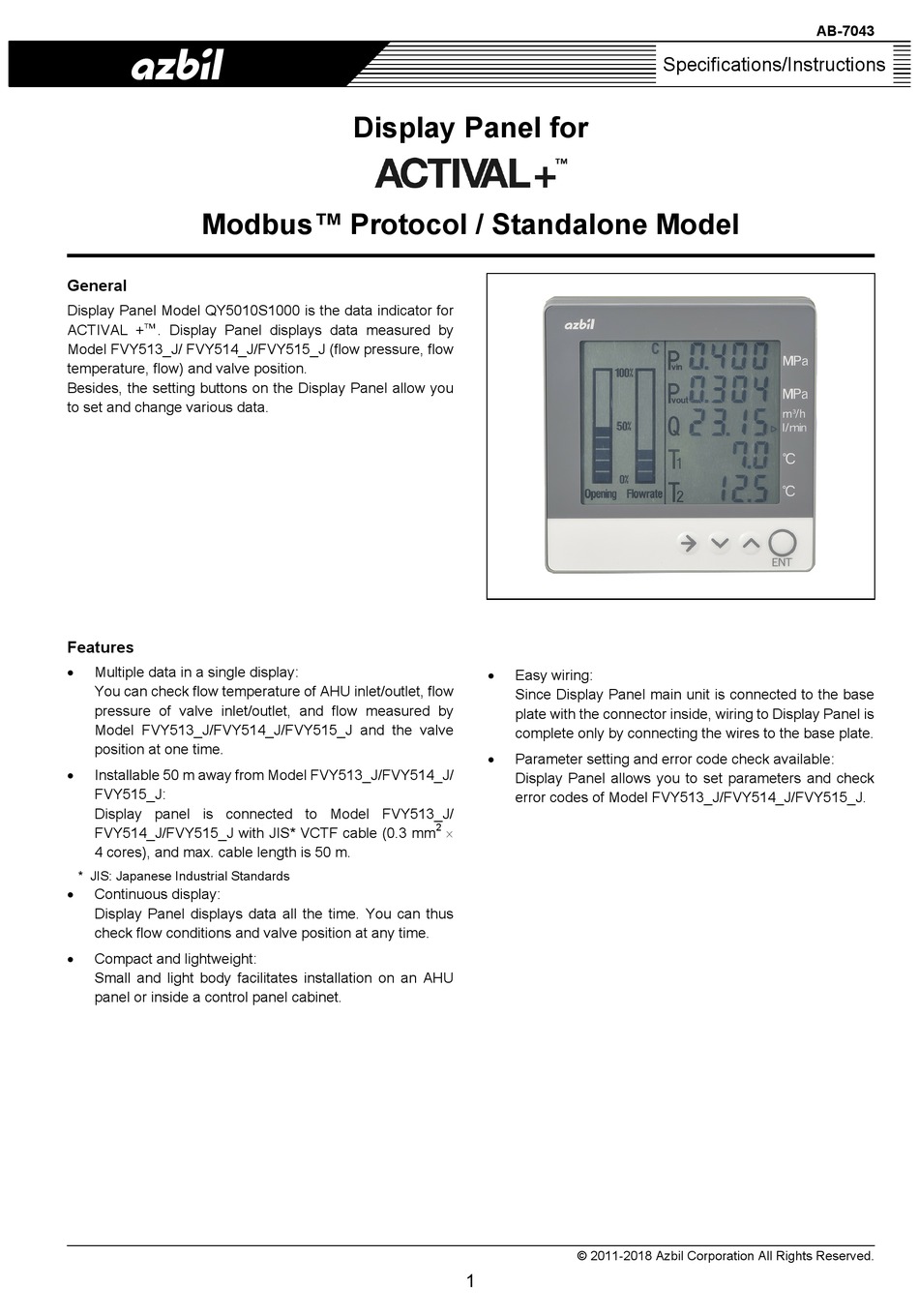

Modbus™ Protocol / Standalone Model
General
Display Panel Model QY5010S1000 is the data indicator for
ACTIVAL +. Display Panel displays data measured by
Model FVY513_J/ FVY514_J/FVY515_J (flow pressure, flow
temperature, flow) and valve position.
Besides, the setting buttons on the Display Panel allow you
to set and change various data.
Features
Multiple data in a single display:
You can check flow temperature of AHU inlet/outlet, flow
pressure of valve inlet/outlet, and flow measured by
Model FVY513_J/FVY514_J/FVY515_J and the valve
position at one time.
Installable 50 m away from Model FVY513_J/FVY514_J/
FVY515_J:
Display panel is connected to Model FVY513_J/
FVY514_J/FVY515_J with JIS* VCTF cable (0.3 mm
4 cores), and max. cable length is 50 m.
* JIS: Japanese Industrial Standards
Continuous display:
Display Panel displays data all the time. You can thus
check flow conditions and valve position at any time.
Compact and lightweight:
Small and light body facilitates installation on an AHU
panel or inside a control panel cabinet.
Display Panel for
Easy wiring:
Since Display Panel main unit is connected to the base
plate with the connector inside, wiring to Display Panel is
complete only by connecting the wires to the base plate.
Parameter setting and error code check available:
Display Panel allows you to set parameters and check
error codes of Model FVY513_J/FVY514_J/FVY515_J.
2
1
Specifications/Instructions
© 2011-2018 Azbil Corporation All Rights Reserved.
AB-7043

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVAL+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Azbil ACTIVAL+

  • Page 1 Display Panel displays data all the time. You can thus check flow conditions and valve position at any time.  Compact and lightweight: Small and light body facilitates installation on an AHU panel or inside a control panel cabinet. © 2011-2018 Azbil Corporation All Rights Reserved.
  • Page 2: Safety Instructions

    Azbil Corporation will not bear any responsibility for the results produced by the operators. Warnings and Cautions ...
  • Page 3: Specifications

    AB-7043 Model Number Model number Description QY5010 Base model number of Display Panel for Model FVY513_J/FVY514_J/FVY515_J S1000 Power supplied from Model FVY513_J/FVY514_J/FVY515_J Specifications Item Specification 12 V DC  1 V (supplied from Model FVY513_J/FVY514_J/FVY515_J Power supply Power consumption Max. 0.1 VA ...
  • Page 4: Outside Dimensions

    AB-7043 Dimensions Outside dimensions 24.5 Base plate Case Figure 1. Outside dimensions (mm) Mounting dimensions of the base plate Mounting holes Hook to remove the case Cable conduit from the base plate Figure 2. Mounting dimensions of the base plate (mm)
  • Page 5: Parts Identification

    AB-7043 Parts Identification Case Insertion guide (male) Insertion guide (female) Base plate Face plate Hook to remove the case Figure 3. Parts identification from the base plate...
  • Page 6 AB-7043 Items to be displayed on LCD Analog values such as pressure, flow, and temperature are displayed on the LCD. Setting buttons set/change various parameters and display error description (when an error occurs). Be sure to enable the parameter setting (Parameter 60) before changing any parameters.
  • Page 7: Parameter Setting Screen

    AB-7043  Parameter setting screen Press and hold the [ENT] button to switch to the parameter setting screen from the analog values display screen. Display area Display item Display area 1 indicating the parameter setting screen Parameter number Display area 2 Current setpoint set for the parameter shown in the display area 2.
  • Page 8: Wiring And Installation

    AB-7043 Wiring and Installation  WARNING Before wiring or maintenance, be sure to turn off the power to the product.  Failure to do so might cause electric shock or device failure. Wiring 1) Press the hook on the bottom of the base plate and detach the case. ...
  • Page 9: Installation

    AB-7043 Installation IMPORTANT:  Do not install this product in an atmosphere containing corrosive gas or explosive gas.  Do not install this product in a location exposed to direct sunlight. Direct sunlight accelerates LCD degradation.  Waterproof box (optional) is required for the product to be installed outdoors. Ask our sales personnel for the waterproof box.
  • Page 10 AB-7043 4) Arrange the cable connected to Display Panel. Cautions for arranging the cable:  Do not pull the cable.  To prevent water from flowing down to Display Panel through the cable, let the cable sag, as Fig. 12 shows. ...
  • Page 11: Maintenance

    AB-7043 If Display Panel needs to be installed in a ceiling, install it near the ceiling access panel. Mount Display Panel in a dustproof box to install in a dusty area in a ceiling. Ceiling access Ceiling Details of A Figure 14.
  • Page 12 EMCD: EN 61326-1 Class A, Table 2 (for use in an industrial electromagnetic environment) RoHSD: EN 50581 ACTIVAL and ACTIVAL + are trademarks of Azbil Corporation in Japan or in other countries. Modbus™ is a trademark and the property of Schneider Electric SE, its subsidiaries and affiliated companies.
