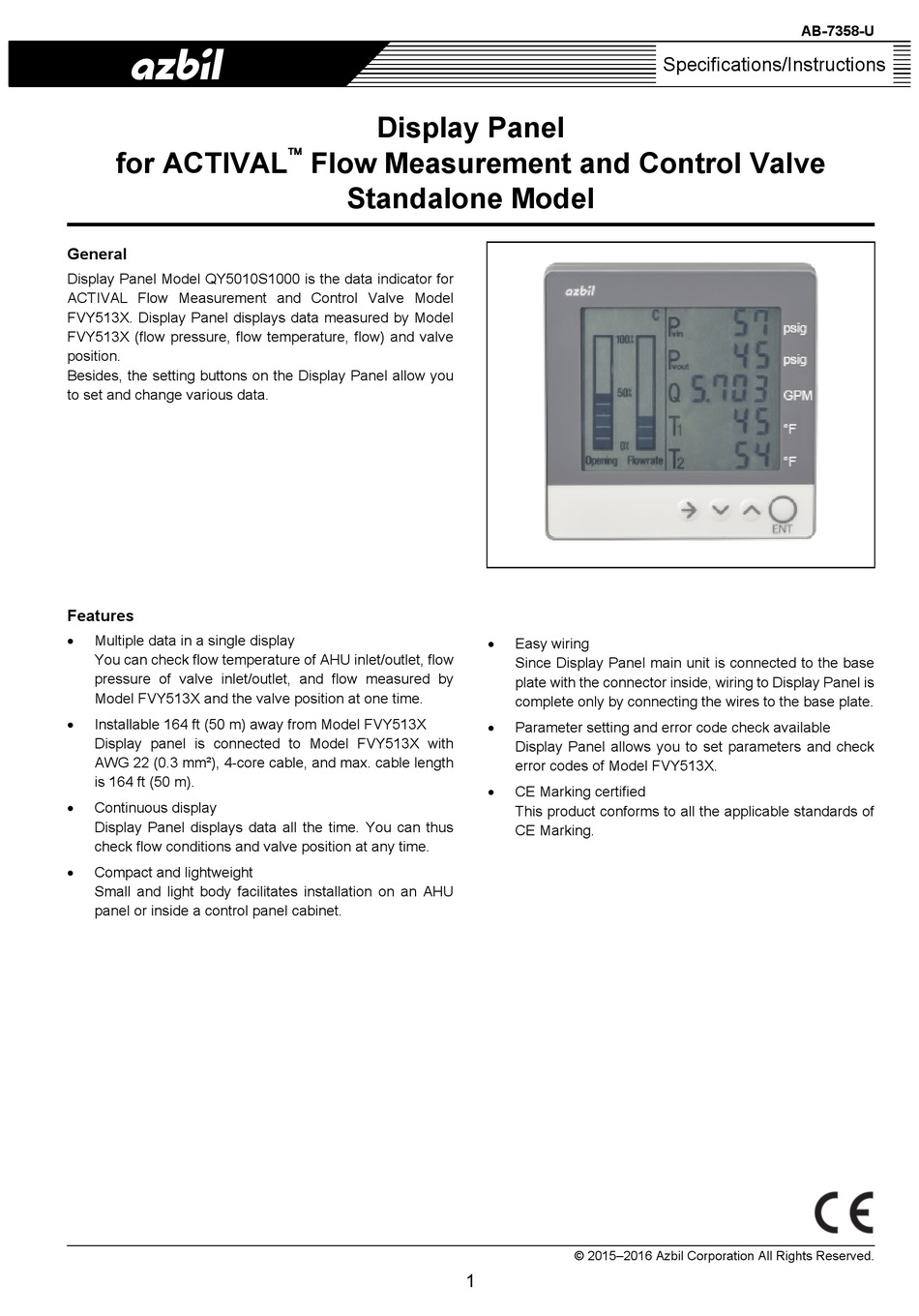

Azbil QY5010S1000 Specifications & Instructions

for ACTIVAL
General

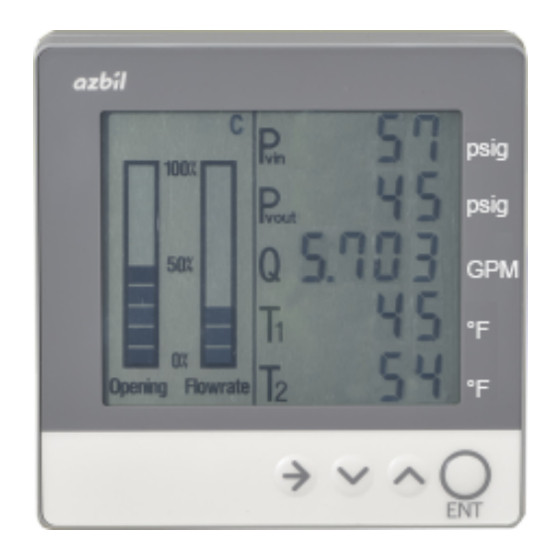

Display Panel Model QY5010S1000 is the data indicator for
ACTIVAL Flow Measurement and Control Valve Model
FVY513X. Display Panel displays data measured by Model
FVY513X (flow pressure, flow temperature, flow) and valve
position.
Besides, the setting buttons on the Display Panel allow you
to set and change various data.
Features

Multiple data in a single display
You can check flow temperature of AHU inlet/outlet, flow
pressure of valve inlet/outlet, and flow measured by
Model FVY513X and the valve position at one time.

Installable 164 ft (50 m) away from Model FVY513X
Display panel is connected to Model FVY513X with
AWG 22 (0.3 mm²), 4-core cable, and max. cable length
is 164 ft (50 m).

Continuous display
Display Panel displays data all the time. You can thus
check flow conditions and valve position at any time.

Compact and lightweight
Small and light body facilitates installation on an AHU
panel or inside a control panel cabinet.
Display Panel

Flow Measurement and Control Valve
Standalone Model

Easy wiring
Since Display Panel main unit is connected to the base
plate with the connector inside, wiring to Display Panel is
complete only by connecting the wires to the base plate.

Parameter setting and error code check available
Display Panel allows you to set parameters and check
error codes of Model FVY513X.

CE Marking certified
This product conforms to all the applicable standards of
CE Marking.
© 2015–2016 Azbil Corporation All Rights Reserved.
1
AB-7358-U
Specifications/Instructions
