Summary of Contents for ADE VITALIS Series

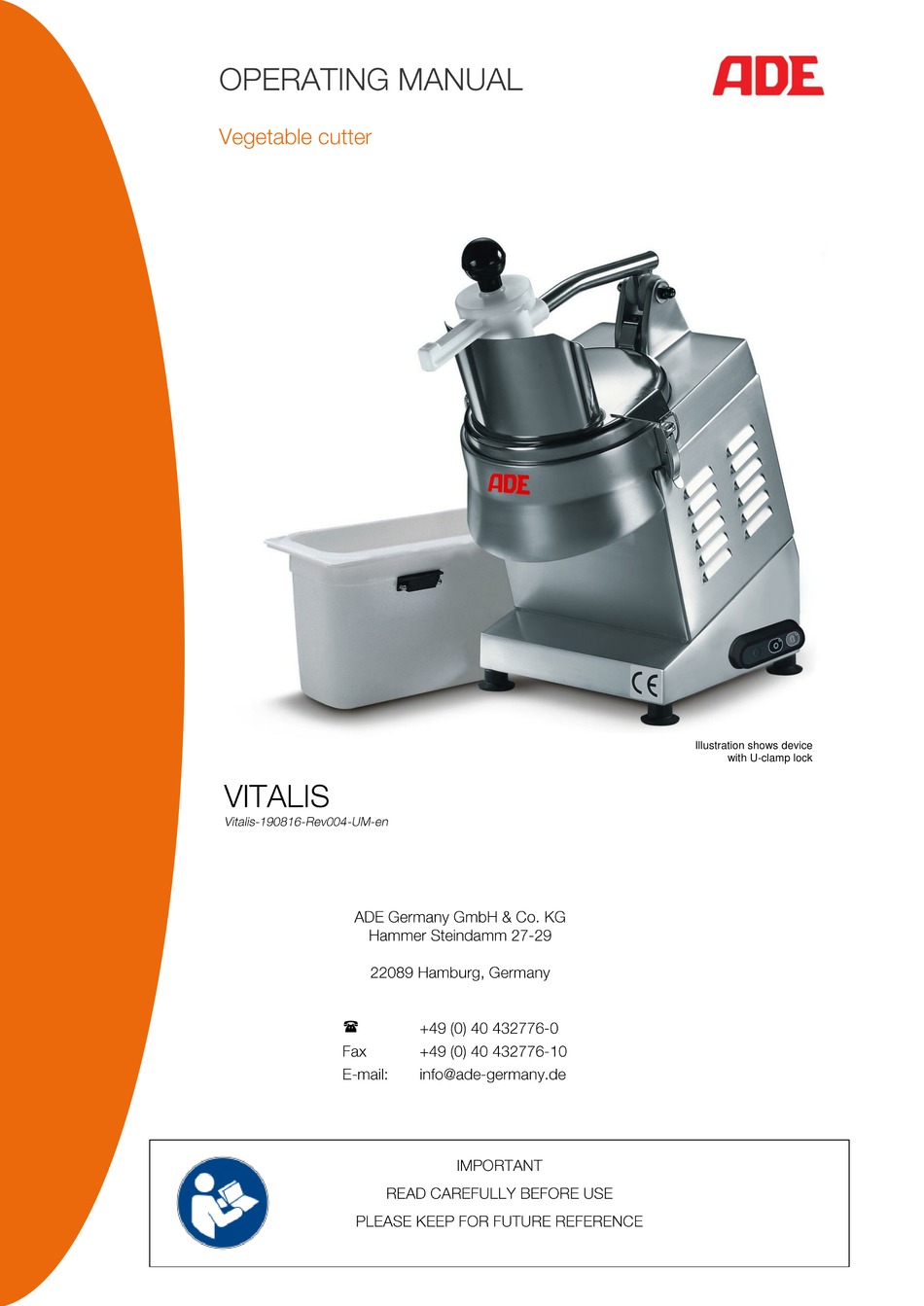

- Page 1 Illustration shows device with U-clamp lock ...
- Page 2 Table of Contents...
-
Page 3: Safety Instructions
INTRODUCTION Before operating the device, read through the entire operating manual carefully and strictly follow the safety instructions. In any case, careful work is indispensable. Safety is also in the hands of those who work with the device during the intended service life. The operating staff must be properly trained and provided with safety instructions at regular intervals. -
Page 4: Intended Use
Electrical safety precautions The vegetable cutter is equipped with various sensors for the operator's safety: Retaining device: Stops the machine when the retaining device is folded up and enables automatic restart when the retaining device is pushed down: Lid: Stops the machine when the lid is removed, for example, for the disc change. Voluntary power- on by pressing the “I”... - Page 5 The delivery includes: Vegetable cutter Pusher Collecting pot with magnetic sensor Discharge shovel User manual incl. declaration of conformity Discs must be ordered separately and are not included! Setting up the machine Requirements for proper operation: The ambient/room temperature must be between +5°C and +35°C. The relative humidity must not exceed 75%.
-
Page 6: Description Of The Device
DESCRIPTION OF THE DEVICE Structure of the device PUSHER RETAINING DEVICE HOUSING U-CLAMP LOCCK EJECTION CHUTE POWER CORD BASE ON/OFF BUTTON FEET LOCKING SCREW FOR LOCKING THE LID Description of the controls The device is equipped with the listed controls required to enable the main functions. A) “I”... - Page 7 START-UP If the device is used for the first time, remove the protective film before enabling the operation and clean thoroughly from any remaining construction materials. Checking the operability Check the operability several times using the following procedure: Press the “I” start button and then the “O” stop button and make sure that the machine is turned on or off by means of the corresponding control lamps (on the control).
- Page 8 FILLING AND CUTTING During operation, a correct posture should be taken to avoid accidents. The body must always be perpendicular to the worktop. Make sure that no body parts come into direct contact with the running device. Position the collecting pot under the ejection chute so that the magnetic sensor is positioned close to the housing.
- Page 9 If a larger collecting pot is to be used (e.g. GN pots), the VITALIS vegetable cutter must be operated with the optional ejection chute (not included). In this case, the ejection chute must be installed under the outlet opening. To install, pull the screws through the screw holes in the chute and push down the chute until it locks into place.
-
Page 10: Storage And Transport
WARRANTY ADE will repair or replace this product if it has failed within 1 year from the date of purchase (proof of purchase is required) due to poor workmanship or defective material. The above does not apply to all moving parts such as a power cord, collecting pot, pusher, discs, etc. Warranty does not apply to normal appearance of usage or sign of wear or any damages caused by accidents or misuse. -
Page 11: Technical Data
DISPOSAL Waste electrical equipment do not belong in household waste. Please dispose of defective or old devices according to the legal and country-specific regulations! TECHNICAL DATA Model VITALIS-230 VITALIS-400 Power 0.51 kW 0.51 kW Power supply 230 V/50 Hz 400 V/50 Hz Dimensions of the device* (WxDxH) 400 x 510 x 790 mm * with the retaining device open... -
Page 12: Optional Accessories
OPTIONAL ACCESSORIES Options: Ejection chute when using larger collecting pots H4498-002 Disc holder, enamelled, for 5-6 discs (depending on the disc) H4501-0621 Disc range (not included): A smooth cutting discs (e.g. for potatoes, onions, small radish, turnips, radish, cabbage, parsley, cucumbers, mushrooms, apples, pears, bananas, peppers, eggplants, artichokes, fennel, etc.) A1 = Cutting height 1 mm / 3 blades... - Page 13 − RoHS Directive 2011/65/EU in the currently valid versions. The declaration will be void if a change that was not agreed with us has been made on the machine. Hamburg, August 2019 ADE Germany GmbH & Co. KG Hammer Steindamm 27-29 D-22089 Hamburg...
-
Page 14: Circuit Diagrams
CIRCUIT DIAGRAMS VITALIS-230 V VITALIS-400V... - Page 15 EXPLOSION SIGNS...
-
Page 17: Spare Parts List
SPARE PARTS LIST DESCRIPTION ITEM NO. Collecting pot H4498-001 Ejection chute H4498-002 Discharge shovel H4498-003 Magnetic switch H4498-004 Ball handle for pusher H4498-005 Pusher, round H4498-006 Pusher for lever H4498-007 Switch assembly H4498-008 Magnet for collecting pot or ejection chute H4498-013 Adjustable foot H4498-011... - Page 20 Distributor:...
