Weka TK40 ANNA Operating Instructions Manual

Hide thumbs Also See for TK40 ANNA:

Operating instructions manual (179 pages)

Operating instructions manual (19 pages)

page of 15

/ 15
Bookmarks

Quick Links

Download this manual

TK40 ANNA

CSE16HF

BETRIEBSANLEITUNG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

OPERATING INSTRUCTIONS.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INSTRUCTIONS DE SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

ISTRUZIONI DI SERVIZIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

INSTRUCCIONES DE SERVICIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

BEDRIJFSHANDLEIDING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

BETJENINGSVEJLEDNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

BRUKSANVISNING .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

BRUKSANVISNING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

KÄYTTÖOHJE .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

INSTRUKCJA OBS£UGI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

WEKA Elektrowerkzeuge

Auf der Höhe 20, D 75387 Neubulach

Telephone: +49 7053 96816-0, Telefax: +49 7053 3138

Internet: www.weka-elektrowerkzeuge.de

Email: weka@weka-elektrowerkzeuge.de

Need help?

Do you have a question about the TK40 ANNA and is the answer not in the manual?

Questions and answers

Summary of Contents for Weka TK40 ANNA

Page 1 TK40 ANNA CSE16HF BETRIEBSANLEITUNG............1 OPERATING INSTRUCTIONS..
Page 2 S Y M B O L S Auf der Maschine - On the machine Betriebsanleitung vor Inbetriebnahm e sorgfältig durchlesen! Please read operators m anual carefully before putting the m achine into operation! Notice d’utilisation à lire attentivem ent avant la m ise en service de la m achine! Leggere la m anuale di istruzioni con attenzione prim a dell'utilizzo della m acchina! ¡Estas instrucciones se deben leer atentam ente antes de poner en m archa la m áquina! Voor de ingebruiknem ing gebruiksanwijzing a.u.b.

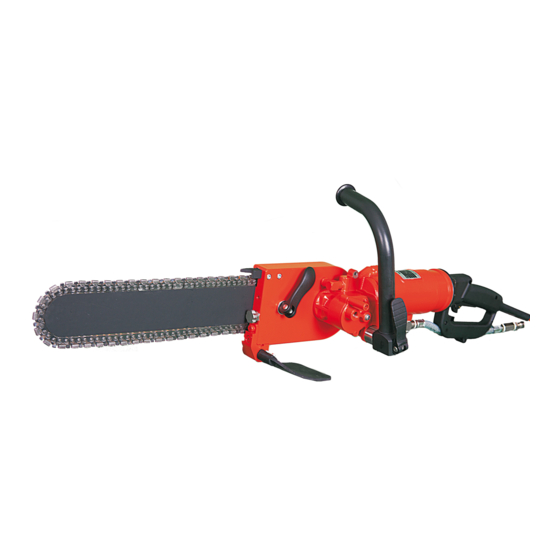

Page 5 OPERATING INSTRUCTIONS - DIAMOND CHAIN SAW TK40 Please read these instructions carefully before starting up the machine! In the W EKA diamond disc saw you have an outstanding quality product with which you will be very satisfied, provided you use it properly. G E N E R A L S A F E T Y P R E C A U T I O N S WARNING! Read all safety precautions and instructions.
Page 6 Avoid abnormal posture. Care for safe standing and keep the balance anytime. Do not work on a ladder. Thus you can control the electric tool better in unexpected situations. Wear suitable clothing. Do not wear wide clothing or jewelry. Keep hair, clothing and gloves away from moving parts.
Page 7 Chain saw and diamond chain Before starting check the chain saw for damage, loose or incorrectly mounted parts. The saw must not be used in the above case. Before starting the chain saw, check the cover and the splash guard for damage and correct assembly.
Page 8 Never get your hand near the rotating saw blade. The saw blade can touch your hand during a kickback. When sawing, always stand parallel to the bar. Do never stand directly behind the bar as the saw will move in the plane of the bar in case of a kickback. Never use the kickback area of the chain saw for cutting.
Page 9 Cutting Equipment Chain max. cutting Drive sprocket Chain speed at depth maximum motor speed 3/8" 3/8" 30 cm / 12" 320 mm 24 m/s 35 cm / 14" 3/8" 370 mm 3/8" 21 m/s 40 cm / 16" 3/8" 420 mm 3/8"...
Page 10 This can be obtained from a garden center or builders’ merchant made of plastics. A water coupling of brass of high quality can be received directly from WEKA. Use only clean water, as dirty water will considerably disturb the heat exchange on the cooling surface and thereby the motor can be totally damaged.
Page 11 Attention: Under full load there are at least 1 l of water per minute required. For cooling and cleaning the bar / chain during the operation of the chain saw, we recommend a larger water flow - see section 3.1 Technical data. Open the ball valve after use, so that the cooling gap can empty.
Page 12 All chains have the tendency to stretch under load. If the distance between the drive member and the sword is larger than 12 mm (1/2 "), the chain must be retensioned (see distance A). Raise the top of the bar by hand and close the eccentric lever to the vertical position. If the eccentric lever can not be closed, or only very difficult to close, slightly turn the eccentric lever back and try to close the eccentric lever again.
Page 13 (incorrect application and increased cutting of reinforcement shortens the life). Damaged cords and plugs have to be repaired or exchanged exclusively in an authorized repair station (www.weka-elektrowerkzeuge.de). If water runs out of the overflow-hole on the gear or on a different place, stop the machine immediately and let it be repaired in an expert workshop.
Page 14 G U A R A N T E E We will guarantee the WEKA chain saw for 12 months from the day of delivery. During this period we will rectify material and production defects free of charge. This warranty does not cover normal wear and tear, overloading, non-compliance with the operating instructions and intervention by unauthorized persons or the use of parts from other companies.
Page 15 We hereby declare under our sole responsibility that this product conforms with the following standards: EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3, EN62841-1 in accordance to the regulations of directive: 2006/42/EG, 2011/65/EU and 2014/30/EU. WEKA Elektrowerkzeuge Neubulach, 01.04.2016 Auf der Höhe 20 Wilhelm Wurster, Owner...
