Teisco Interface User Manual page 5

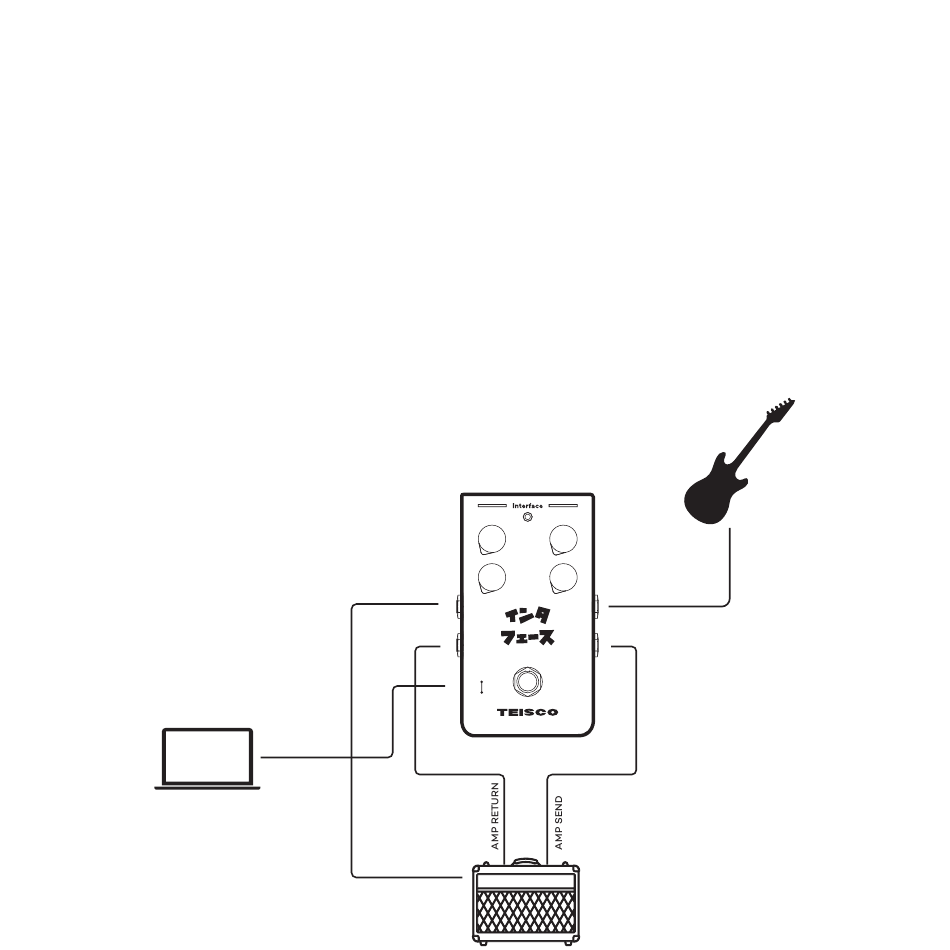

Teisco Interface 4-Cable Method (Using
Amp Send / Return)
The "4-Cable Method" is a flexible way of wiring
your effects to achieve optimum tone.
We recommend routing some effects (e.g.
drives, distortions, and compressors) before
your amp's preamp and other effects
(time-based ones like delays and reverbs) in
your amp's effects loop.
The Teisco Interface can single-handedly handle
both operations by running Channel A before
your amp, and Channel B in the effects loop.
Note: This only works with a single MONO
instrument input
DAW requirements:
Create 2 MONO tracks in DAW
Add plugins to each track as desired (e.g.
overdrive plugins to Track 1, time-based
plugins to Track 2)
Use these settings in your DAW:
Track 1: Input 1, Output 2
Track 2: Input 2, Output 1
AMP IN
