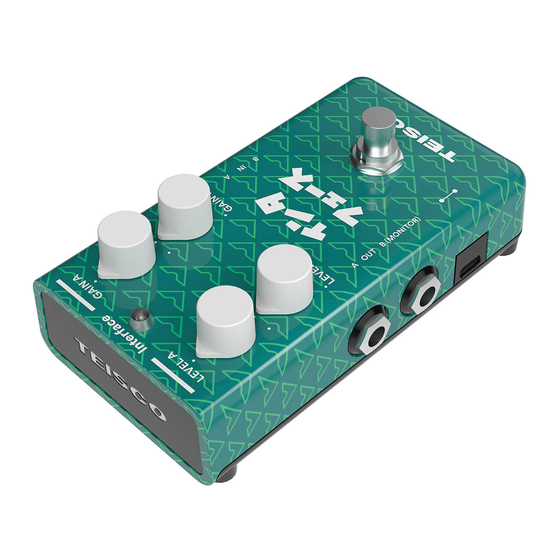

INTERFACE USER MANUAL
The Teisco Interface is compatible with devices that run
on Mac, Windows, iOS or Android.
Compatible Devices
MacBook (up to macOS Catalina)
iPhone (up to iOS 13)
*Requires Lightning to USB Camera Adapter
iPad Pro (up to iOS 13)
Laptop/PC (up to Windows 10)
*Recommended driver: WDM
Disclaimer: Results may vary for some Android mobile
devices. Audio latency issues may persist with some
Android operating systems.
Important Note
Due to its overall design, the Teisco Interface's Output A
is wired in reverse-stereo which may affect the output
routing in your DAW.
Track I/Os for your DAW:
Input A on the Teisco Interface = Input 1 on your DAW
Output A on the Teisco Interface = Output 2 on your DAW
Input B on the Teisco Interface = Input 2 on your DAW
Output B on the Teisco Interface = Output 1 on your DAW
For ease of use, we recommend trying out the sample
DAW Input and Output settings shown below.
Tried & Tested DAW Compatibility
This list represents music creation
software that works with the Interface:
Cakewalk by BandLab
Cubase 10
GarageBand 10
Logic Pro X
Pro Tools 2018*
Reaper 5
*Instructions for Pro Tools
1. Open Audio and MIDI Devices
2. Create aggregate device
3. Rename device
4. The Teisco interface should now
appear in Pro Tools as a playback engine
If your DAW or device is not on this list, it
might still work with the Interface!
Contact us at support@teisco.com if
you face compatibility issues.
Advertisement
Summary of Contents for Teisco Interface
- Page 1 Track I/Os for your DAW: you face compatibility issues. Input A on the Teisco Interface = Input 1 on your DAW Output A on the Teisco Interface = Output 2 on your DAW Input B on the Teisco Interface = Input 2 on your DAW...
- Page 2 Teisco Interface on a Pedalboard (MONO) DAW requirements: If it’s your first time using a recording interface, this is the best place to start. Create 1 MONO track in DAW Add plugins to the track as desired Connect your pedals or your guitar directly to the Teisco Interface’s input and connect the...
- Page 3 Teisco You may also run other pedals before or after Interface) the Teisco Interface for the desired effect. You can also run a mono input into the Teisco Track 1: Input 1+2, Stereo Out (if you’re Interface and process output in stereo.
- Page 4 ASAP, or if you’re just looking to clock in some silent practice, go ahead and use Create 1 STEREO track in DAW the Interface as a simple recording interface. Add plugins to the track as desired Use Output B for your headphones. You’ll need a Use these settings in your DAW: headphone jack adapter.
- Page 5 (time-based ones like delays and reverbs) in your amp’s effects loop. Use these settings in your DAW: The Teisco Interface can single-handedly handle Track 1: Input 1, Output 2 both operations by running Channel A before Track 2: Input 2, Output 1 your amp, and Channel B in the effects loop.
- Page 6 Teisco Interface with Two Instruments DAW requirements: The Teisco Interface is able to run two instruments, each with separate plugins. Both tracks can be recorded at the same time. Create 2 MONO tracks in DAW Add plugins to each track as desired...
- Page 7 Teisco Interface Running Direct and to The Teisco Interface can also route two DAW requirements: different signals on stage. Create 2 MONO tracks in DAW Send Channel A to your guitar amp and Channel Add plugins to each track as desired B to the mixer/monitor.
- Page 8 Teisco Interface for Wet / Dry Setups Use the Teisco Interface to send your dry signal DAW requirements: to your guitar amp, and your time-based “wet” effects to another amp or directly to the front Create 2 MONO tracks in DAW of house.
