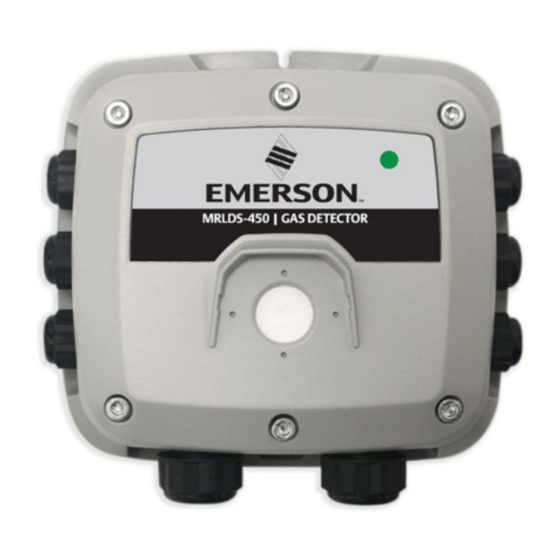

Emerson MRLDS-450 Installation Manual

Application in e2
Hide thumbs

Advertisement

Quick Links

MRLDS-450 Application In E2
Installation Guide
Note: Installing the MRLDS-450 requires version E2E 4.10F01 or
later. You must add a description file for version E2 3.10F01 or less.
New Installation: Uploading the MRLDS-450
Description File to E2
The MRLDS-450 requires adding a description file
(P/N 527-0754) and license key to E2 version 3.0X or later.
Contact Customer Service to obtain this information:
Email:
Solutions.CustomerService@Emerson.com
Phone: 770-425-2724 Option 4
Note: UltraSite32 software should be installed to perform a
description file upload.
Connect to E2 using UltraSite32
1. Launch UltraSite program and login.
2. View the Directory Level and then Site Level.
3. Right-click Site Level and click Connect.
4. Locate the E2 where the MRLDS_450.dsc will be installed.
5. Right-click the unit and select Upload Description File.
6. Click Browse to select the appropriate description file (5270754.dsc) file for MRLDS-450 from the
computer and click Open.
7. Click Upload. A window will display the description file was successfully imported. Click OK. The
description file should appear inside the window.
8. Once completed, disconnect from the E2 and reboot the E2 controller.
Note: Do not omit the step of rebooting the controller.
Document Part # 026-4419 Rev 0
©2020 Emerson Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emerson.com for the latest technical documentation and updates.
MRLDS-450
Page 1 of 6

Advertisement

loading

  Summary of Contents for Emerson MRLDS-450

  • Page 1 4. Locate the E2 where the MRLDS_450.dsc will be installed. 5. Right-click the unit and select Upload Description File. 6. Click Browse to select the appropriate description file (5270754.dsc) file for MRLDS-450 from the computer and click Open. 7. Click Upload. A window will display the description file was successfully imported. Click OK. The description file should appear inside the window.
  • Page 2: Device Setup

    Figure 1 - E2 Device and COMM Setup Document Part # 026-4419 Rev 0 Page 2 of 6 ©2020 Emerson Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emerson.com for the latest technical documentation and updates.
  • Page 3 Connected I/O Boards and Controllers. 2. Press to move to the C3: ECT tab. Highlight the MRLDS-450 application and enter the desired number of devices under Quantity up to a maximum of 15. Figure 2 - ECT Tab 3.
  • Page 4 Note: The MODBUS address must be the same as the address assigned on the device. Document Part # 026-4419 Rev 0 Page 4 of 6 ©2020 Emerson Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emerson.com for the latest technical documentation and updates.
  • Page 5 Figure 7 - MRLDS-450 Network Summary Screen Online Status Document Part # 026-4419 Rev 0 Page 5 of 6 ©2020 Emerson Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emerson.com for the latest technical documentation and updates.
  • Page 6: Viewing The Status
