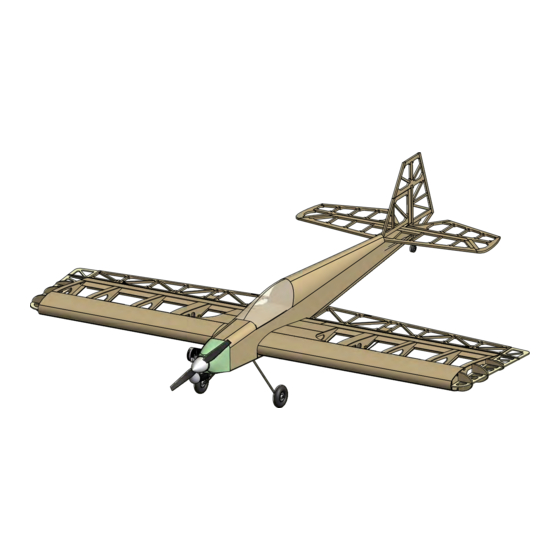

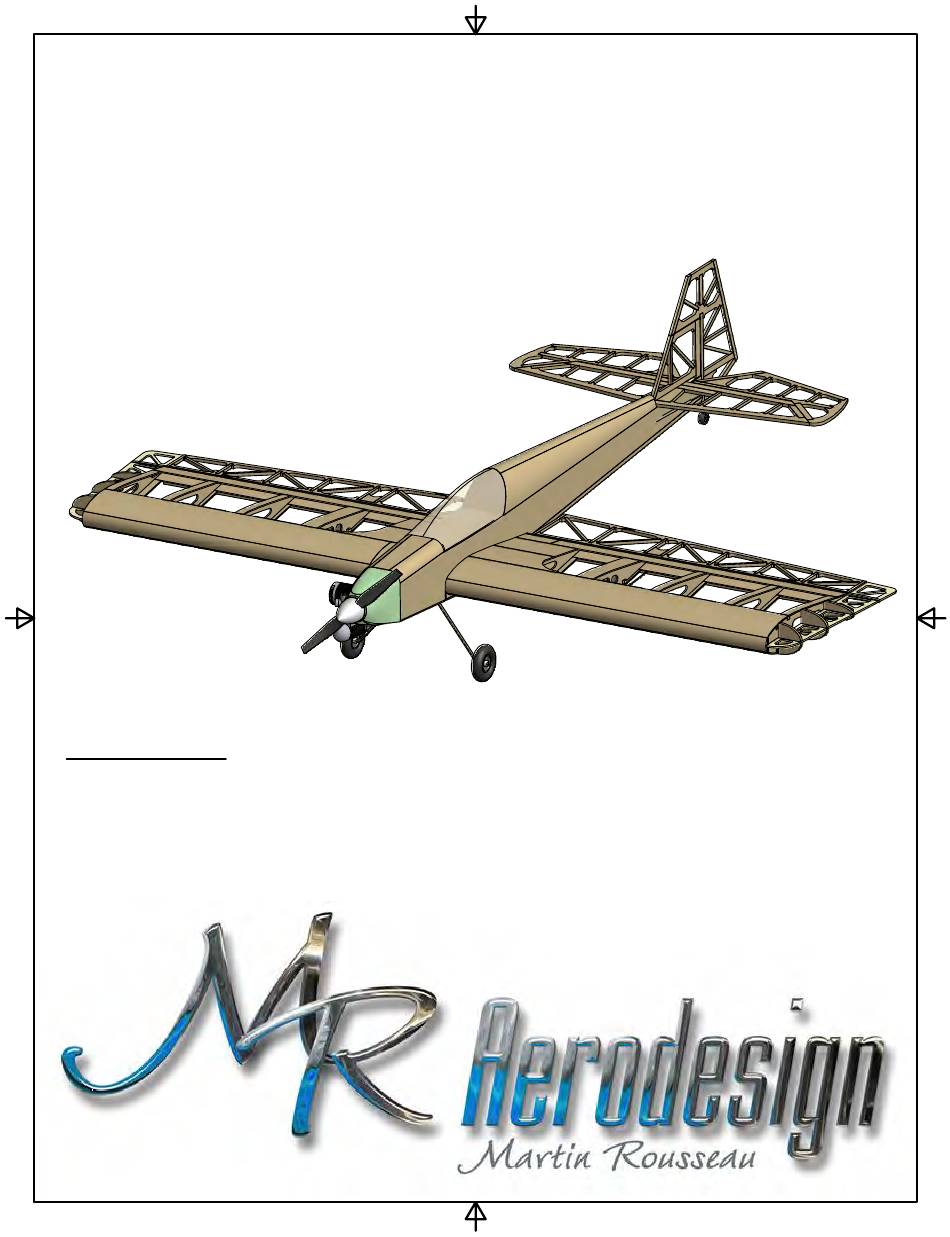

- Page 1 Aero 3D Dimension: Wing span : 68 1/8" (1730mm) Lenght : 61 5/16" (1557mm) Engine: .46@.60 (2 stroke) .70@.90 (4 stroke) Servo required: 5...
- Page 3 MR Aerodesign Aero 3D FUSELAGE Parts listing (For 1 ass'y) Part number Description Length DUB102 Ny-Steel Kwick Rod Ass'y DUB158 Steel landing gear strap DUB243 Wheel collar Ø7/32" DUB376 Tailwheel bracket DUB450RV Ø3" wheel FU-SH-1 Balsa 3/32" 6 11/16 in FU-SH-2 Balsa 3/32"...
- Page 4 MR Aerodesign Aero 3D FUSELAGE Ply 1/8" Step 1 FUDA Ply 1/8" Ply 1/8" Ply 1/4" FU10 Ply 1/8" Ply 1/8" Ply 1/8" Step 2 Ply 1/8" FU-ST-5 FU-ST-1 Balsa 1/4" x 1/4" Balsa 1/4" x 1/4" FU-ST-4 Balsa 1/4" x 1/4"...
- Page 5 MR Aerodesign Aero 3D FUSELAGE Step 4 Ply 1/8" FU-ST-9 Balsa 1/4" x 1/2" Hardwood 1/4" x 3/8" Ply 1/8" FUDA Ply 1/8" Step 5 FU-SH-2 Balsa 3/32" x 4" FU-ST-2 Balsa 1/4" x 1/4" FU6B Ply 1/8" Step 6 FU-SH-2 Balsa 3/32"...
- Page 6 MR Aerodesign Aero 3D FUSELAGE Step 7 FU-SH-4 Balsa 3/32" x 3" FU-ST-6 Balsa 1/4" x 1" FU-ST-6 FU-ST-6 Balsa 1/4" x 1" Balsa 1/4" x 1" FU-ST-6 Balsa 1/4" x 1" Step 8 Rudder servo Elevator servo DUB102 Throttle servo...
- Page 7 MR Aerodesign Aero 3D FUSELAGE Step 10 FU-ST-3 Balsa 1/4" x 1 1/2" FU-SH-3 Balsa 3/32" x 4" DUB376 Tailwheel bracket FU-TR-1 Balsa triangle 3/8" Gear Piano Wire Ø7/32" Ply 1/4" DUB158 Steel landing gear strap DUB450RV Ø3" wheel DUB243 Wheel collar Ø7/32"...
- Page 8 MR Aerodesign Aero 3D FUSELAGE Step 10 Clear plastic canopy FU-ST-7 Balsa 1/4" x 1 1/2" FU-SH-1 Balsa 3/32" FU-SH-5 Balsa 3/32" x 4" Step 11 - Install engine - Make throttle linkage - Make cowl from 1/2" thick balsa block Ply 1/8"...
- Page 9 Aero 3D MR Aerodesign WING Aero 3D Wing Part list PART NUMBER DESCRIPTION Epaisseur Largeur Longueur DUB172-A 2-56 Threaded rod 1/16 in 3 5/16 in DUB212 Threaded coupler DUB600 2-56 Spring steel Kwik-link DUB716 Control Horn SS2-07 Servo Screw #2x7/16"...
- Page 10 Aero 3D MR Aerodesign WING W-ST-1 Balsa 1/4" x 1/4" W-MS-1 Balsa 1/4" x 3/8" Balsa 1/8" Balsa 1/8" Balsa 1/8" Step 1 Balsa 1/8" W-MS-1 Balsa 1/4" x 3/8" W-ST-1 Balsa 1/4" x 1/4" Balsa 1/8" Balsa 1/8" Balsa 1/8"...
- Page 11 Aero 3D MR Aerodesign WING W-SH-1 Balsa 3/32" Step 3 W-TE-2 Balsa 3/32" Balsa 1/8" W-SH-5 Balsa 3/32" W-SH-5 Balsa 3/32" Step 4 W-SH-3 Balsa 3/32" W-SH-2 Balsa 3/32" W-SH-4 Balsa 3/32" Cut flush W-SH-5 Balsa 3/32"...
- Page 12 Aero 3D MR Aerodesign WING Step 5 W-TE-1 Balsa 1/4" x 3/8" W-LE-1 Balsa 1/4" x 1 1/4" W-TE-1 W-SH-2 Balsa 1/4" x 3/8" Balsa 3/32" W-SH-1 W-TE-2 Balsa 3/32" Balsa 3/32" W-SH-3 Balsa 3/32" DETAIL C SCALE 1 / 4 Step 6 Balsa 1/4"...
- Page 13 Aero 3D MR Aerodesign WING Step 7 Balsa 1/8" Balsa 1/8" Balsa 1/8" Ply 1/8" Balsa 1/8" Step 8 W-SH-7 Balsa 3/32" W-SH-6 Balsa 3/32" W-ST-2 Balsa 1/4" x 1"...
