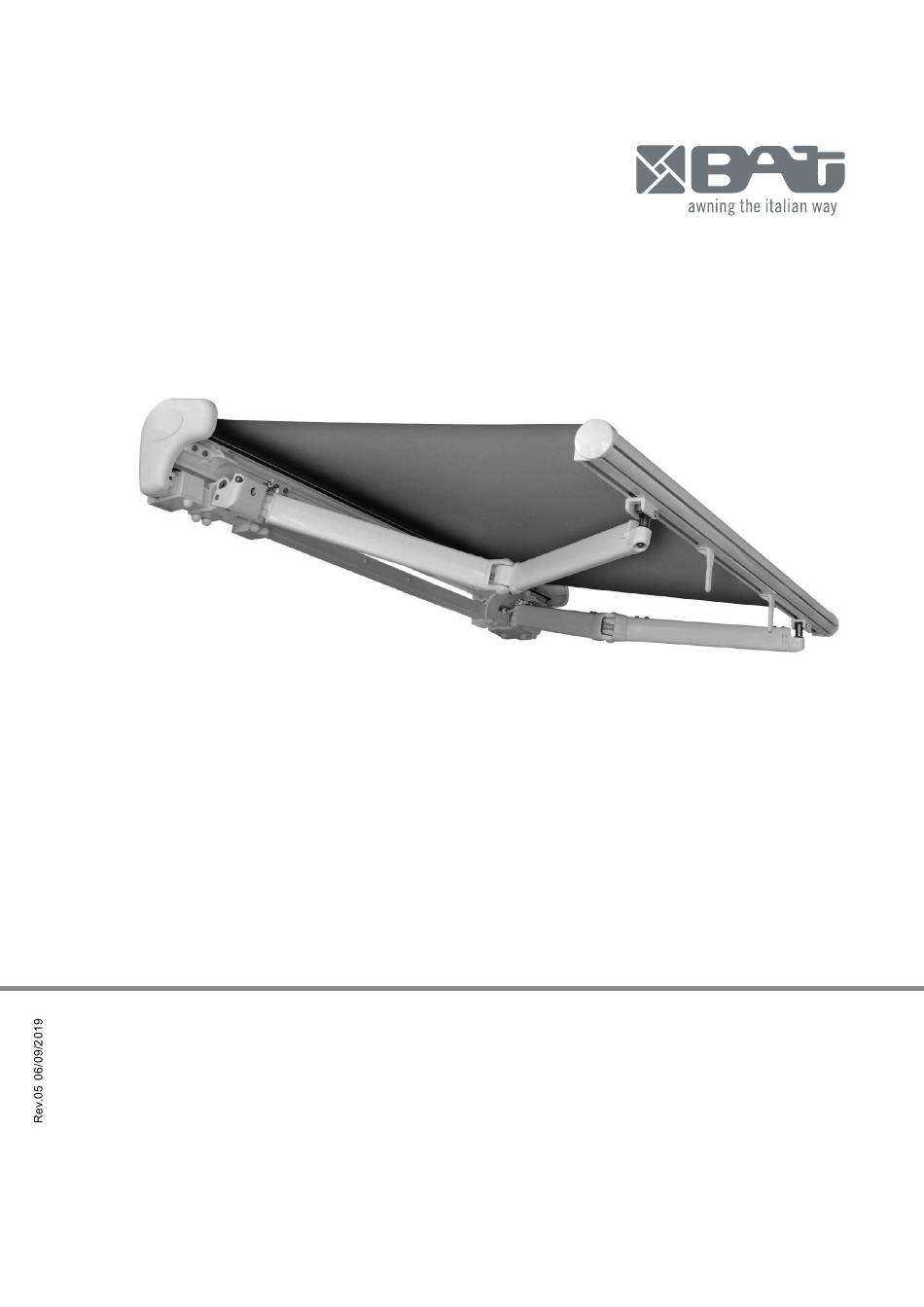

- Page 1 2040 Manuale di uso e manutenzione Use and maintenance manual Manuel d’utilisation et d’entretien Bedienungs-und Wartungshandbuch Manual para uso y mantenimiento...
-
Page 2: Table Of Contents
2040 Use and maintenance manual 1 Introduction ........................21 Symbols used in this manual ................. 21 2 Safety ..........................21 General safety information ..................21 3 Description of the product .................... 23 Components ......................23 Intended use and installation location ................ 24 5 Maintenance ........................ -
Page 3: Introduction
2040 Use and maintenance manual Introduction This manual, together with the others attached (e.g. motor manual, remote control etc.), is an integral part of the product and has been written for its user; it is fundamental to the correct use and maintenance of the product. - Page 4 2040 Use and maintenance manual sensors, the user must adopt appropriate organisational measures to prevent the activation of the product when maintenance operations are being performed in the area, such as windows or walls' cleaning. • The product absolves risks as per legislation EN13561: risks of a mechanical, electrical and ergonomic nature.
-

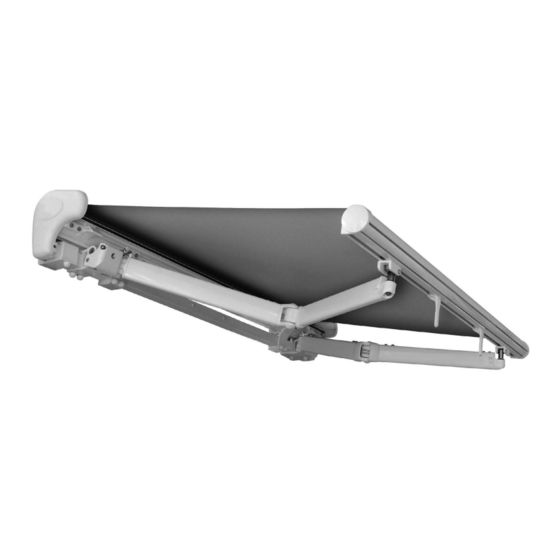

Page 5: Description Of The Product
2040 Use and maintenance manual Description of the product The awning can be installed either on the wall or on the ceiling. Its operation is manual or motorized: Optional Accessories can be installed on request (see Ch.Pt.9 “Optional”, P. 29). -
Page 6: Intended Use And Installation Location
2040 Use and maintenance manual Intended use and installation location The product is designed to protect against solar radiation and possibly to limit reverberation in the space below it. Users of the product must be adults. Improper use of the product shall release the Manufacturer from any liability from damage or injuries which might result. -
Page 7: Maintenance
2040 Use and maintenance manual Pic. 6 OPENING: Fabric stretched Pic. 7 STOP: Stop of the move- Pic. 8 CLOSURE: Fabric wrapped to its maximum extension. ment. around roller tube. See the instructions provided in the remote control manual annexed. -
Page 8: Cleaning
2040 Use and maintenance manual PROBLEM CAUSES SOLUTIONS Incorrect alignment of arms Contact Technical Support The product jerks when opening, jams Check that there are no obstacles and movement is noisy Contact Technical Support preventing the terminal from sliding MOTORISED AWNING... -
Page 9: Extraordinary Maintenance
2040 Use and maintenance manual · Qualified personnel are not required for ordinary maintenance operations. The operations described below will keep the product in good condition if they are performed according to the indicated frequencies and timeframes. Twice a year Check the cleanliness of the aluminium components. -
Page 10: Technical Data
2040 Use and maintenance manual Technical data 6.1 Technical features Max. dimensions (mm) and weight (Kg) Width (mm) 6000 12000 Projection (mm) 3600 3600 Approximate weight (kg)* Roller tube (Ø) 70-80 70-80 Safety performance per EN13561 Wind resistance class** Nominal test pressure p (N/m ) α=1... -
Page 11: Installation
2040 Use and maintenance manual performed after the initial installation, is not covered by warranty. The packaging material must be disposed off and/or recycled according to the applicable local legislation. 7.2 Installation ·Assembly of the components, installation and first start of the product must only be performed by specialised and qualified technicians, and is the responsibility of the reseller and/or manufacturer. - Page 12 2040 Use and maintenance manual The card below is just an example. the manufacturer will have to adapt it according to his needs. EDITED BY THE INSTALLER/MAINTENANCE TECHNICIAN - CUSTOMER COPY PRODUCT DELIVERY AND INSTALLATION SHEET Installation declaration of conformity: It is stated that the product installation has been performed to appropriate technical standards, following the manufacturer’s instructions.
- Page 13 2040 Use and maintenance manual The card below is just an example. the manufacturer will have to adapt it according to his needs. CUSTOMER RESPONSIBILITY - CUSTOMER COPY MAINTENANCE FORM Extraordinary maintenance has to be requested from a specialised company and must be performed every two years.
- Page 14 2040 Use and maintenance manual The general conditions below are just an example. The manufacturer will have to adapt them according to his needs. WARRANTY AND RESPONSIBILITIES - CUSTOMER COPY On receipt of the goods, the customer must immediately check their quantity, the condition of the packaging and that they match the details given on the shipping documentation etc.
- Page 15 2040 Use and maintenance manual The card below is just an example. the manufacturer will have to adapt it according to his needs. TO BE COMPILED BY THE INSTALLER/MAINTENANCE TECHNICIAN - INSTALLER COPY TO PRODUCT DELIVERY AND INSTALLATION SHEET Installation declaration of conformity: Extraordinary maintenance has be requested from a specialised company and must be performed every two years.
