- Page 1 User’s Manual for eTOP500 Glass Series Products eTOP500 Glass Series Operating Instructions MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A.
- Page 2 “as is” without warranty of any kind. Third-party brands and names are the property of their respective owners. www.exorint.com MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
-
Page 3: Table Of Contents
5.5 Optional plugin module installation procedure 6 Power Supply, Grounding and Shielding 7 Battery 8 Special Instruction for Use 9 Getting Started 10 System Settings 11 Unpacking and Packing Instructions MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 4: Introduction
The operational guidelines described below is information which relates to the device, installation, transpor- tation, storage, assembly, use and maintenance. This Operating Instruction describes the main features of the Exor operator panels. The Manual refers to the following models: eTOP507G Operator interface with TFT color 7”... - Page 5 ATTENTION: indicates a failure to observe safety rules and that deficiency may cause damage. ATTENTION CAUTION: indicates a failure to observe safety rules and that deficiency may cause defects to the equipment or inconsistencies. CAUTION MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
-
Page 6: Product Overview

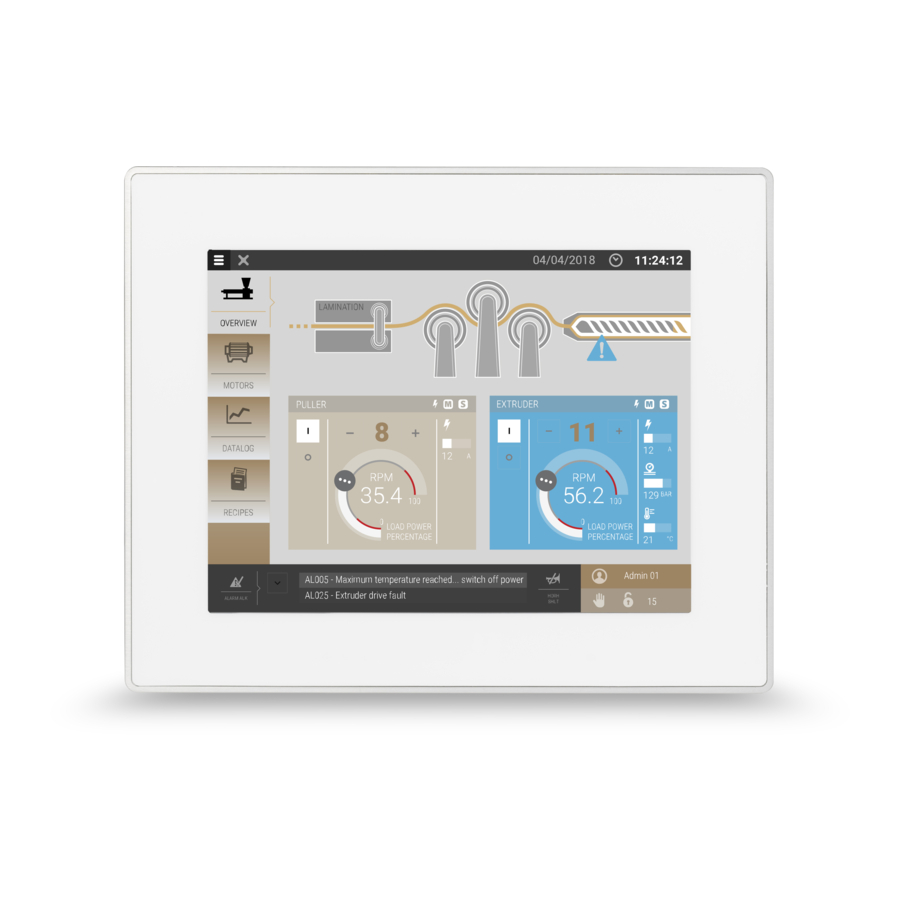

1 Product Overview The Exor eTOP Series 500 Glass HMI products combine state-of-the-art features and top performance with an oustanding design. They are the ideal choice for all demanding HMI applications including factory energy and marine applications. The eTOP Series 500 Glass features a high-brightness, contrast-enhanced ruggedized TFT display with a fully dimmable LED backlight. -
Page 7: Standards And Approvals
The products are in compliance with the Restrictions on Certain Hazardous Substances (RoHS) Directive 2011/65/EU In compliance with the above regulations the products are CE marked. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... - Page 8 An example of this plate is shown in the figure below: Note: the eTOP507G label is used as an example for eTOP500 Glass Series product model name...
-
Page 9: Technical Specifications
± 0,5 KV dc power port (line to line) ± 1 KV signal line (line to earth) Immunity to conducted disturbances inducted by radiofrequency field 0.15 ÷ 80 MHz, 10V EN 61000-4-6 MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... - Page 10 1 cycle and 300 cycles (60Hz); 40% duration: 10 cycles (50Hz); 70% duration: 25 cycles (50Hz); Phase: 0°-180° Test executed on the 230Vac side of the Exor International S.p.A. Power Supply EN 61000-4-11 Durability information Backlight service life 40000 Hrs. or more (LED type)
-
Page 11: Technical Data
) 10-32Vdc For applications requiring compliance with EN 61131-2 and specifically in reference to 10 ms voltage dips, the power supply range voltage is 18-32Vdc. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... - Page 12 ) 10-32Vdc For applications requiring compliance with EN 61131-2 and specifically in reference to 10 ms voltage dips, the power supply range voltage is 18-32Vdc. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
-
Page 13: Dimensions
4 Technical Data 4.1 Dimensions Cut out MODEL eTOP507G 187mm/7.36” 147mm/5.79” 176mm/6.90” 136mm/5.35” 47mm/1.85” 8mm/0.31” eTOP507MG 187mm/7.36” 147mm/5.79” 176mm/6.90” 136mm/5.35” 47mm/1.85” 8mm/0.31” MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... - Page 14 4 Technical Data Cut out MODEL eTOP510G 282mm/11.10” 197mm/7.80” 271mm/10.67” 186mm/7.32” 56mm/2.20” 8mm/0.31” MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
- Page 15 4 Technical Data Cut out MODEL eTOP515G 392mm/15.43” 307mm/12.08” 381mm/15” 296mm/11.65” 56mm/2.20” 8mm/0.31” MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
-
Page 16: Installation Environment
• thickness of the case where is mounted the equipment: from 1,5mm to 6mm • max surface roughness where the gasket is applied: O120 um Applying the gasket A. Gasket B. Installation cut-out MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 17: Safety Instruction
Place the fixing brackets contained in the fixing kit as shown in figure CAUTION Tightening torque: 130Ncm or screw each fixing screw until the bezel corner gets in contact with the panel. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 18: Connections
3. USB Port (version 2.0 - 1.1) 4. USB Port (version 2.0 High speed only) 5. Power Supply 6. Expansion slot for Plugin module 7. SD Card Slot MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... - Page 19 3. USB Port (version 2.0 - 1.1) 4. USB Port (version 2.0 High speed only) 5. Power Supply 6. 2x Expansion slot for Plugin module 7. SD Card Slot MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
-
Page 20: Serial Port
The Ethernet port have two status indicators. Please see description in figure. OFF: Valid link has NOT been detected ON: No activity ON: Valid link has been detected BLINKING: Activity MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 21: Optional Plugin Module
• 1 CAN interface • 1 SPI interface Note: It is not possible to stack two modules that are using the same type of interface. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 22: Optional Plugin Module Identification
1816 serial number AA0000225000000561AA version id of the product 050100A00000000 manufacturer address Exor International S.p.A. Via Monte Fiorino 9 IT-37057 San Giovanni Lupatoto (VR) MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 23: Optional Plugin Module Installation Procedure
5 Connections 5.5 Optional plugin module installation procedure PLCM PLIO03 MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... - Page 24 • a module plugged in Slot#1 or into Slot#2 will be the CanPort 0, • a module plugged in Slot#3 or into Slot#4 will be the CanPort 1. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
-
Page 25: Power Supply, Grounding And Shielding
The suggested wiring for the power supply is shown below. Fig. 6.2 All the electronic devices in the control system must be properly grounded. Grounding must be performed according to applicable regulations. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 26: Battery
Dispose of batteries according to local regulations. ATTENTION This device cannot be disposed of as a domestic waste but according to WEEE European Directive 2012/19/EU MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 27: Special Instruction For Use
JMobile Studio to access the network. USB or SD Create an Update Package using JMobile Studio and copy it to a USB Flash drive or to an SD memory card. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... -
Page 28: System Settings
Recall context menu and select “System Settings”. To recall the context menu click and hold any unused area of the touchscreen for a few seconds. Default hold time is 2 seconds. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice... - Page 29 Uninstall HMI removes the Runtime and all projects. Clear system settings reset the system parameters like IP Address, date/time, etc Clear Controller Application remove CODESYS application MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
- Page 30 System Supervisor module of BSP Upload Main FPGA reserved to authorized technical personnel Upload Safe FPGA reserved to authorized technical personnel Upload System Supervisor reserved to authorized technical personnel MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
-
Page 31: Unpacking And Packing Instructions
11 Unpacking and Packing Instructions To repack the unit, please follow the instructions backwards. MANUGENETOP5xxG - Version 1.05 © 2015-2019 EXOR International S.p.A. - Subject to change without notice...
