GUARDIAN GEAR Sprinter EXT II Stroller Instructions

Instructions:
1. Unfold Stroller Frame until locking hinge on side of the frame
clicks into place.
4. Attach the Velcro ® flaps on the
sides of the Stroller Body to the
belly bar of the Frame.
Warning: Brakes should be pushed up to the highest position before use.
To lock brakes, push down on levers to the lowest position.

Folding and Storage Instructions:

1. Fold down Canopy, then pull up top half of plastic hinge on sides of
frame to release and fold frame.
2. To secure the stroller in a folded position, loop the red plastic hook over
the corresponding metal post.
Sprinter EXT II Stroller
®

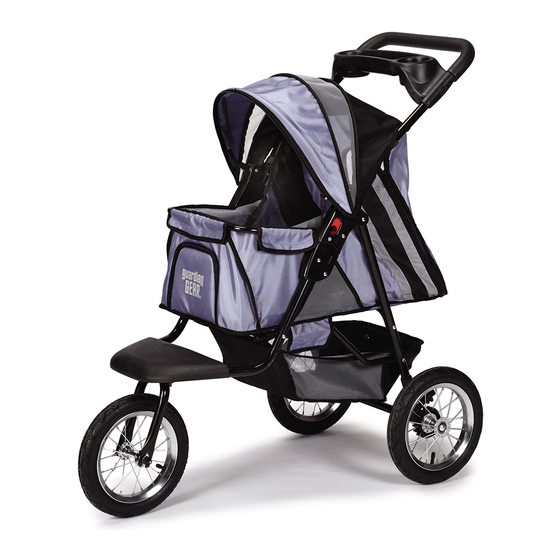

5. Fully assembled Stroller
2. Back wheels attach by depressing
the silver button on the back wheel
bar. Once wheel is securely in place,
release the button. (Front wheel
comes attached and unlocked).

Front Wheel Locking Instructions:

1. When walking, jogging, or going on faster strolls,
lock the front wheel in place for safety.
2. To lock front wheel, push the small tab up on
the red locking mechanism just behind the
wheel barrel and rotate until the metal pin slides
into the hole above.
3. Attach fabric panel to the bottom
of stroller using Velcro ® flaps.
