GUARDIAN GEAR ZW9915 17 Assembly Instructions

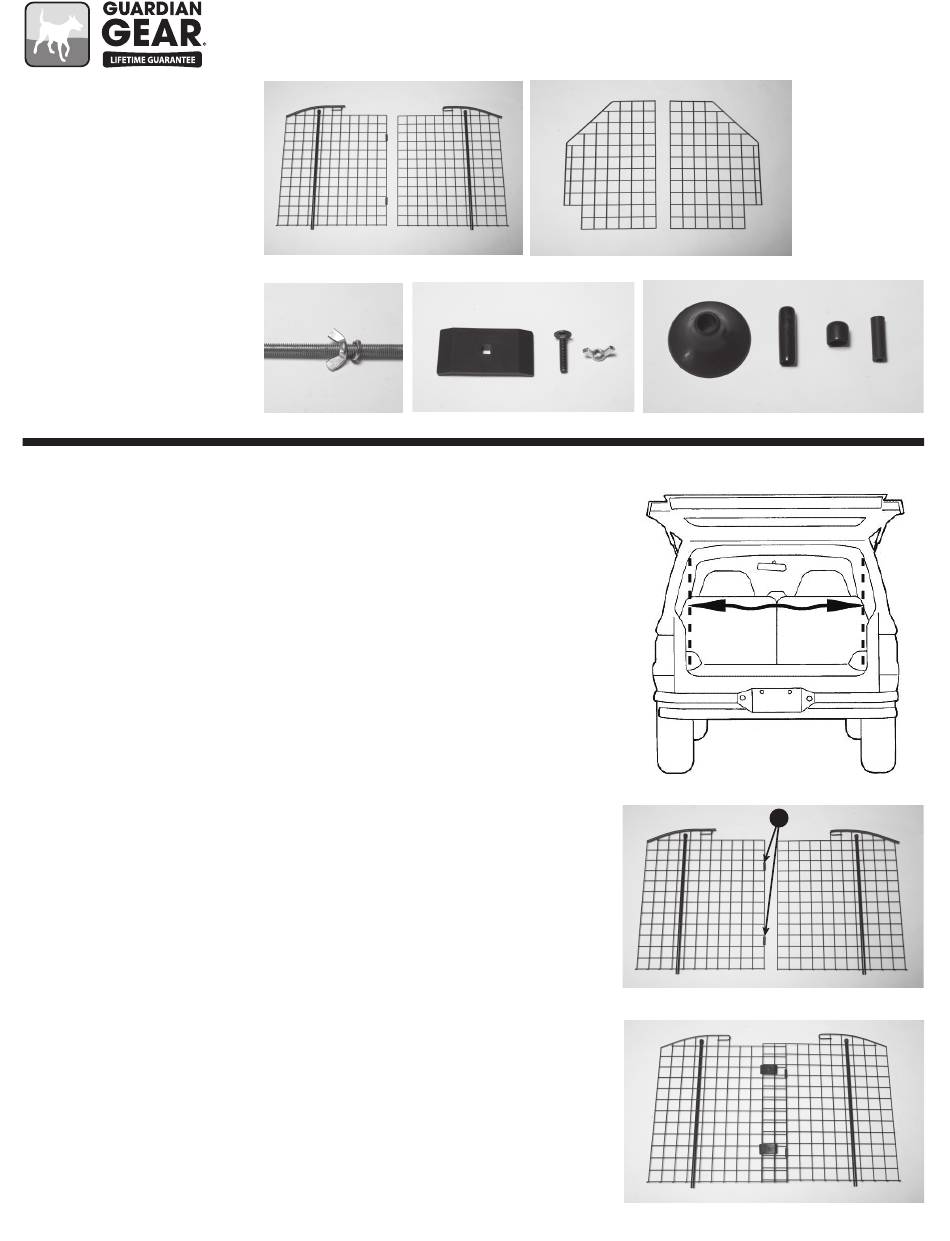

Parts Identification:

(A) Main Barrier Sections (2)
(B) Extension Panels-Large (2)
(C) Extension Panels-Small (2)
(D) Threaded Rods (2)
(E) Large Wing Nuts (2)
(F) Large Lock Washers (2)
(G) Plastic Clamp Plates (12)
(H) Bolts & Small Wing Nuts (6)
(I) Large Vinyl Tips (2)
(J) Small Vinyl Tips (2)
(K) Short Rubber Tube
Sound Dampeners (2)
(L) Suction Cup Feet (2)
1. Measure the width of the interior of your vehicle to determine
how wide the Main Barrier Section (A) should be.
2. Remove the Threaded Rods (D) from the tubes on the Main Barrier
Sections (A) and set them aside. Identify the left and right main
panels by placing the panels on the ground with the tubes down.
Attach the Short Rubber Tube Sound Dampeners (K) to the Left
Barrier Panel to eliminate any possible vibration rattles.
3. Lay the Left Main Barrier Panel on top of the Right Main Barrier
Panel and adjust them to best fit your measurement from Step 1.
The panels should be overlapped by at least 2 "squares," although
the barrier will still be stable with one overlapping square.

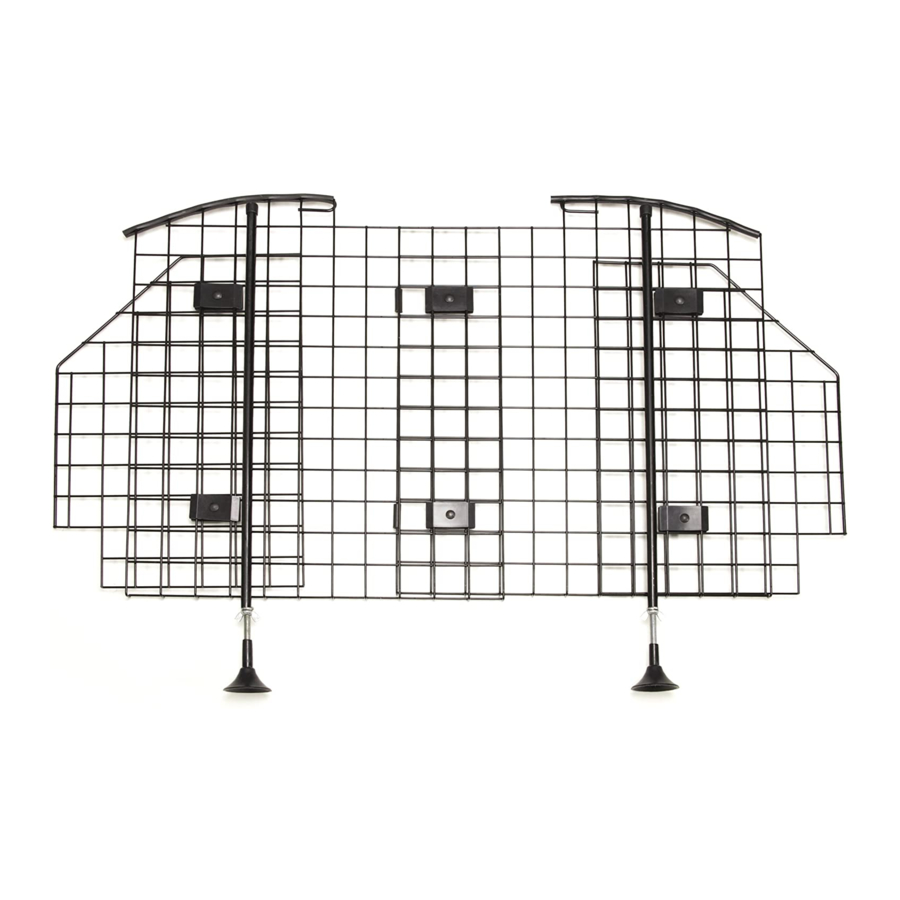

ZW9915 17 Grid Vehicle Barrier
Assembly Instructions
(A)
(D) (E) (F)
(B) and (C)
(G) (H) (L) (I) (J) (K)
K
