WARNING
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so can result in death or electrical shock.
ATTENTION
!
The installation of the pipes and electrical equipments
should be done by professionals.
INSTALLATION GUIDE
Built-in Dishwasher
INSTALLATION PREPARATION
The installation position of dishwasher should be near the
existing inlet and drain hoses and power cord.
One side of the cabinet sink should be chosen to facilitate
the connection of drain hoses of the dishwasher.
Please check the accompanying installation accessories
(hook for aesthetic panel,screw).

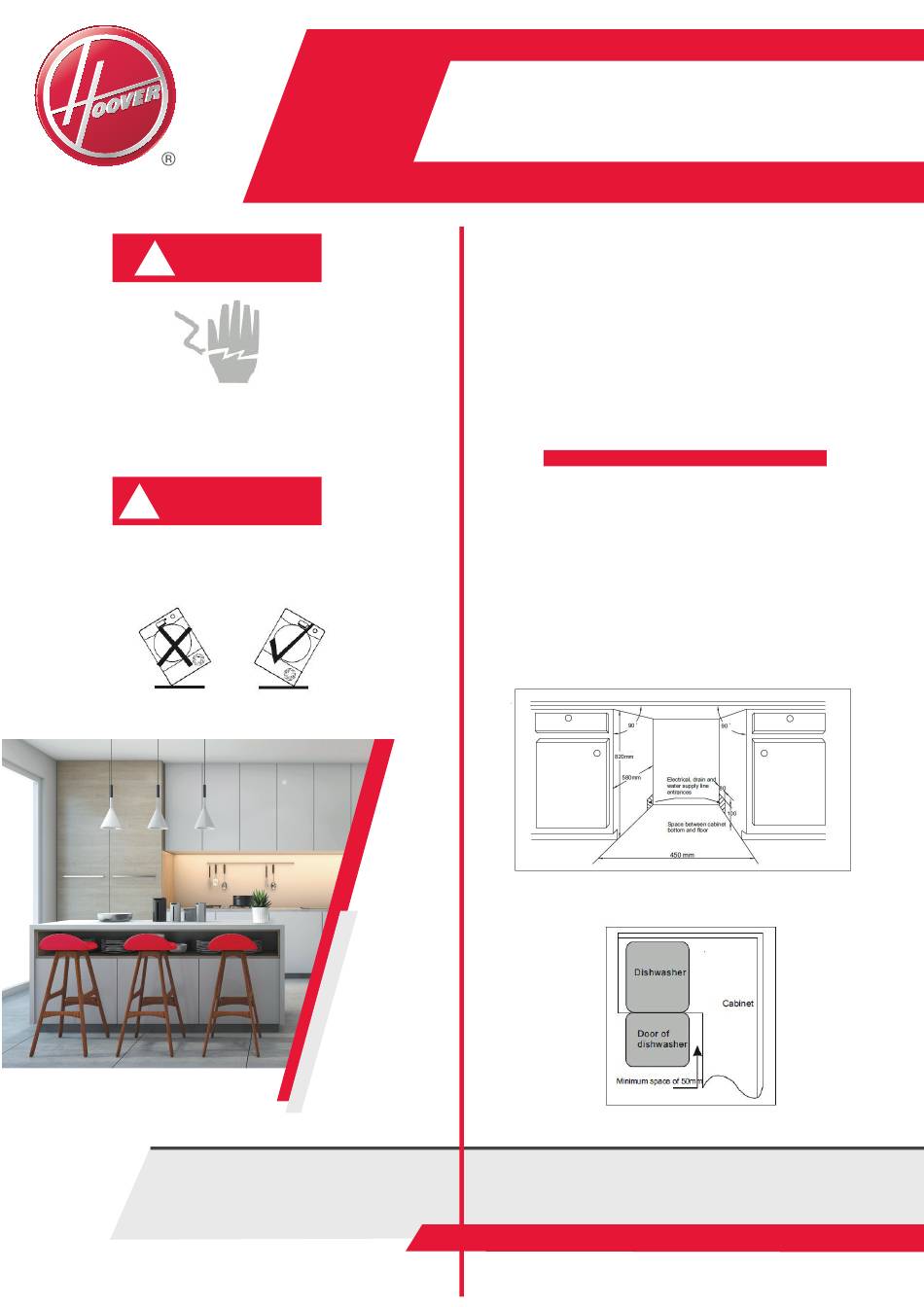

Illustrations of cabinet dimensions and installation position
of the dishwasher. Preparations should be made before
moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation
of inlet and drain hoses (see fig 1).
(Fig 1) Cabinet dimensions Less than 5mm between the top
of the dishwasher & cabinet and the outer door aligned
to cabinet.
Figure 2 - Minimum space when the door is opened
STEP ONE
