Summary of Contents for Bugatti Diva Evolution

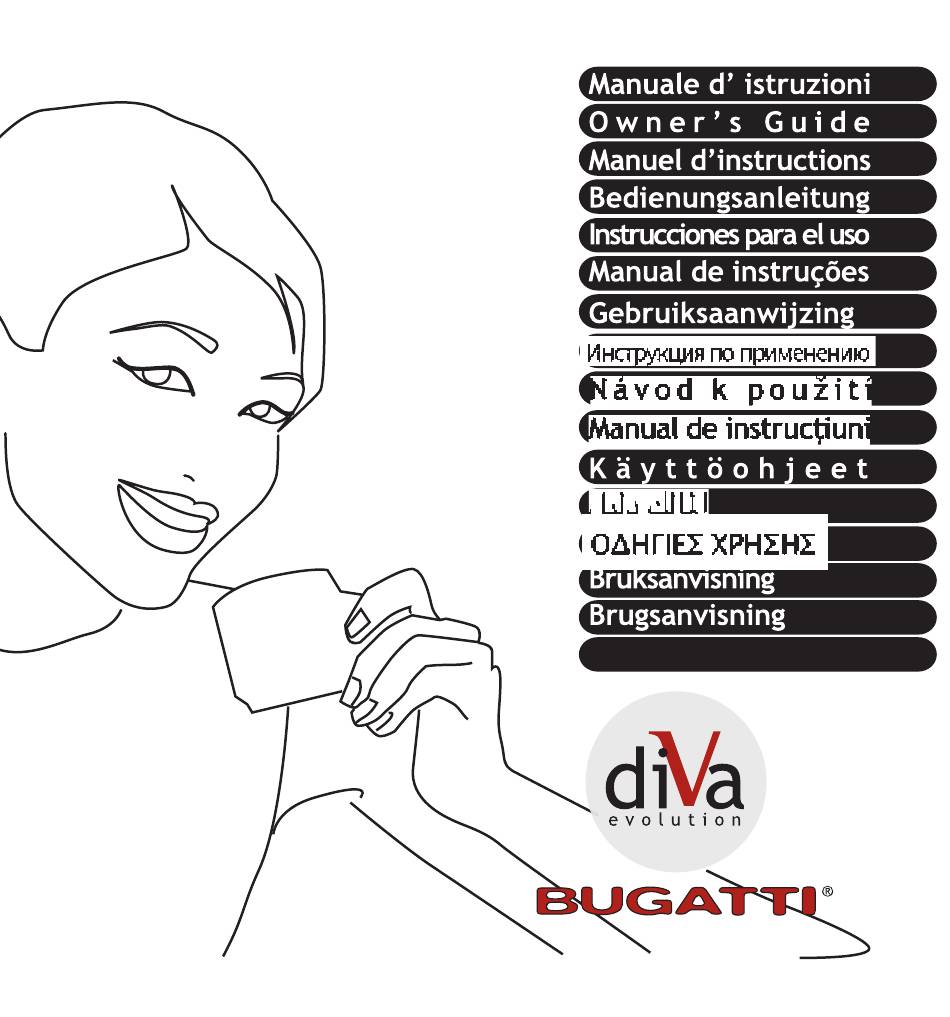

- Page 1 Przewodnik użytkownika...
- Page 4 If the instructions are lost before you use the machine, request the instruction booklet from Customer Care at CASA BUGATTI or send an e-mail to diva@casabugatti.it.
-
Page 5: Table Of Contents
Contents Page 19 Technical features Page “ Machine controls and parts Page “ Accessories Page 20/21 Important safeguards Page 22 Installation and starting up Page 23/29 Advice and recommendations on use Page 23 Setting up the machine Page “ Coffee with pods Page 24/25 Ground coffee Page 26... -
Page 6: Warranty
Technical features Power supply See rating plate underneath machine Power rating See rating plate underneath machine Dimensions Diameter approximately 240 x h. 365 mm Solid cast Solid cast aluminium and stainless steel 18/10 Weight About 6,5 Kg Length of power supply cable Approximately 1.2 metres Pump 15 bar, electrico-vibrating... -
Page 7: Important Safeguards
IMPORTANT SAFEGUARDS CAREFULLY READ ALL INSTRUCTIONS. THE APPLIANCE MUST BE USED ONLY BY ADULTS WHO HAVE BEEN TRAINED IN ITS USE. DO NOT IMMERSE PARTIALLY 1. T o protect against fire, electric shock and injury to person OR TOTALLY ANY PART OF THE CORD, PLUGS, OR THE MACHINE ITSELF IN WATER OR IN OTHER LIQUID. - Page 8 11. In the event of faults, defects or suspected faults after a fall, immediately unplug from the socket. Never start up damaged appliances. The repairs must be carried out by the Service Centre of CASA BUGATTI . Contact your dealer and/or contact Customer Care at CASA BUGATTI or send an e-mail to diva@casabugatti.it.
-
Page 9: Installation And Starting Up
Strictly comply with safety regulations. The coffee machine must be connected, with the Casa Bugatti original electrical wire (25) to a wall socket with a voltage as specified on the rating plate underneath the machine. Make sure that the socket you are using is earthed (grounded). -
Page 10: Advice And Recommendations On Use
Advice and recommendations for use Setting up the machine. The first time that DIVA is used or if it is used after a long period of inactivity: 1) Fill the tank (2) with cold water. 2) Connect the appliance to a wall socket in strict compliance with the important safeguards specified on page 20, 21. -
Page 11: Ground Coffee
5) Press the button (4) to start delivery of the coffee. 5) Press the button (4) to start delivery of the coffee. 6) Then press the button (4) again to stop delivery of the coffee: you can decide what type of coffee to 6) Then press the button (4) again to stop delivery of the coffee: you can decide what type of coffee to enjoy: “ristretto”, “espresso”, “lungo”... - Page 12 Advice and recommendations for use Advice and recommendations for use 3) Take the filter-holder unit for ground coffee (16) insert the filter (18) for one coffee or the filter (19) 3) Take the filter-holder unit for ground coffee (16) insert the filter (18) for one coffee or the filter (19) for two coffees, according to requirements.
- Page 13 Use of steam to heat water for tea and infusions. Do not touch hot surfaces. Handle only with grips or anti-heat gloves every hot surface. Be careful also at the steam/hot water tube(see image“C”): DANGER OF BURNS! Steam and hotwater can burn. Never point the steam and the hot water directly on the body. 1) Switch on the machine by pressing the general on/off button(3) 2) Ensure that the temperature pointer is in the position of the coffee cup 3) Move the steam tube(8)in a useful position and put the bucket under the tube immersing it in the water...
- Page 14 To prepare the Italian Cappuccino follow carefully the order of these operations: 1) Prepare in one or more Bugatti cups (the number corresponds to the drinks you want to prepare)the espresso coffee following the instructions you find in the previous pages.
-
Page 15: Cleaning And Maintenance
10)The steam function can be repeated following again the points of this paragraph. The machine is always ready to prepare coffee. 11) To clean the tube (8) see the following chapter: “ Cleaning and maintenance” 12) Every time you refill the water tank (2),remember empty the drip grid (14) 13) Be careful: frequently check the water level in the water tank(2). -
Page 16: The Best Espresso Coffee
6) There must be 25 millilitres of coffee in the cup. (give or take two and half millilitres). To obtain an excellent Italian espresso as served at the bar, BUGATTI recommends using BUGATTI coffee, either powder or in pods. This coffee is exclusively roasted in a wood- burning oven, especially... - Page 17 25 F°. We suggest to use distilled water. You can get a new filter from your retailer or from Customer Care at CASA BUGATTI. The ion exchange filter (24) is housed inside the tank and is connected to the pump suction pipe.
- Page 18 Please call the courtesy service office or send an e-mail to Bugatti at diva@casabugatti.it to book the assistance. Please note that the heating element is considered as expendable material and therefore is outside the...
- Page 19 SERVICE CENTRE In the event of a machine fault, contact an authorised BUGATTI dealer, who will return the machine to the manufacturer. The purchaser is responsible for all carriage and/or dispatch cost for all repairs not covered by warranty.
