- Page 1 DOOR SERIES DOOR THREE - INSTALLATION & USER GUIDE...

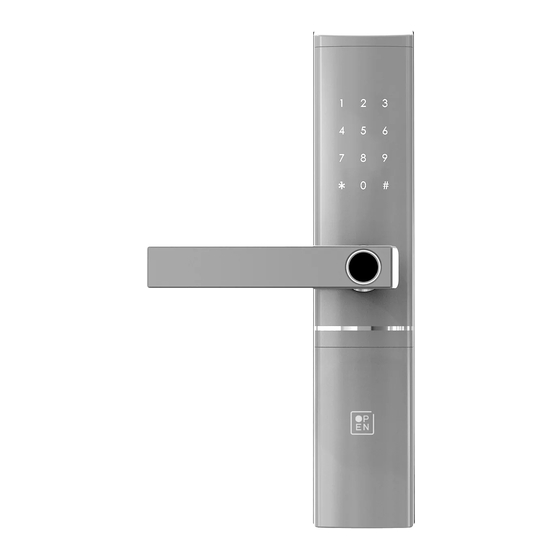

- Page 2 Door three NFC Card Reader Battery Panel (back) Capacitive Touch Backlit Keypad Glass Display Handle Fingerprint Sensor Micro USB port for Emergency Emergency Keyhole DOOR SERIES DOOR THREE - INSTALLATION & USER GUIDE...
- Page 3 In the box Strike plate Dustbox Spindle Spring Spacer Screws Screws NFC Card Emergency keys DOOR SERIES DOOR THREE - INSTALLATION & USER GUIDE...
-
Page 4: Technical Specs
Communication 78mm x 363mm Zinc Alloy 4.2 kg BLE 4.0 Power Battery life Max Operating temp. Warranty 4 x 1.5V AA batteries 8 months 80 °C 1 year FREE Certifications RoHS DOOR SERIES DOOR THREE - INSTALLATION & USER GUIDE... - Page 5 Note: Note: The right to R The right to R For right-handed doors, rotate Left open to L Left open to L the spindle adaptor and align the ‘R’ to the arrow in the label. DOOR SERIES DOOR THREE - INSTALLATION & USER GUIDE...
-
Page 6: Installation
You’ll need : A drilling machine Install the latch cartridge as shown and secure with four screws. NOTE : Remember to place the ‘strike plate’ and ‘dust box’ in the door frame cartridge. DOOR SERIES * Illustrations made for left-handed doors... - Page 7 Rotate the tailpiece in the desired position. Insert the spring into the ‘internal unit’ and then plug the cable before sticking the unit to the door. NOTE : Tuck the extra cable inside the cavity. DOOR SERIES * Illustrations made for left-handed doors...
- Page 8 Affix the ‘internal unit’ with the help of 2 screws to the back of the door. Load four AA non-rechargeable alkaline batteries into the battery unit and close it with the back panel. DOOR SERIES * Illustrations made for left-handed doors...
- Page 9 (details in the next page) Unlock your door lock via Bluetooth to sync your Access logs. Share access with your loved ones through the mobile app. Modify or delete access in-app. DOOR SERIES * Illustrations made for left-handed doors...
- Page 10 Unlocked All passcode accesses DELETE ALL Ganesh Karthik FULL ACCESS 8496258 Rahul Raunak TIMED ACCESS 9846 David Sequeira TIMED ACCESS 654823 Your lock is unlocked Bhavya Mandanna ONE TIME ACCESS 6484514 DOOR SERIES DOOR THREE - INSTALLATION & USER GUIDE...
- Page 11 Create access and access rights to your lock Share one-time or permanent access with others remotely View 24/7 Access logs View, manage and delete passcodes View battery life and receive low battery alerts DOOR SERIES DOOR THREE - INSTALLATION & USER GUIDE...
- Page 12 security made simple www.openapp.com...
