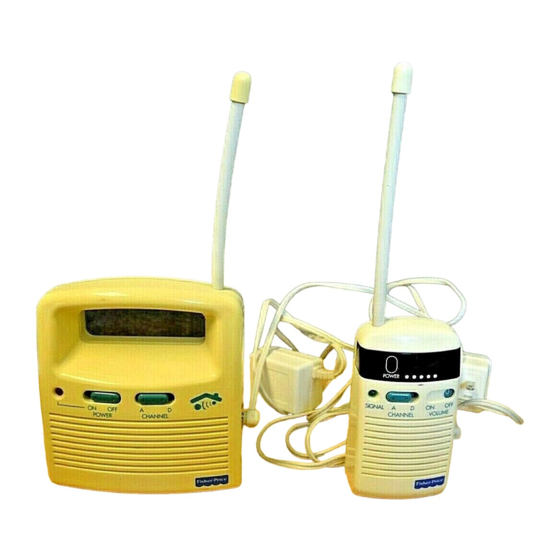

Privacy Monitor
™
Model Number: 71566
Please read these instructions and keep them for future reference.
Includes two AC adaptors to power the transmitter and receiver.
The transmitter and receiver also run on battery power.
(Transmitter requires four size "C" alkaline batteries. Receiver requires one
9V alkaline battery. Batteries are not included.)
Advertisement
Table of Contents
Related Manuals for Fisher-Price Direct Link Privacy Monitor
Summary of Contents for Fisher-Price Direct Link Privacy Monitor

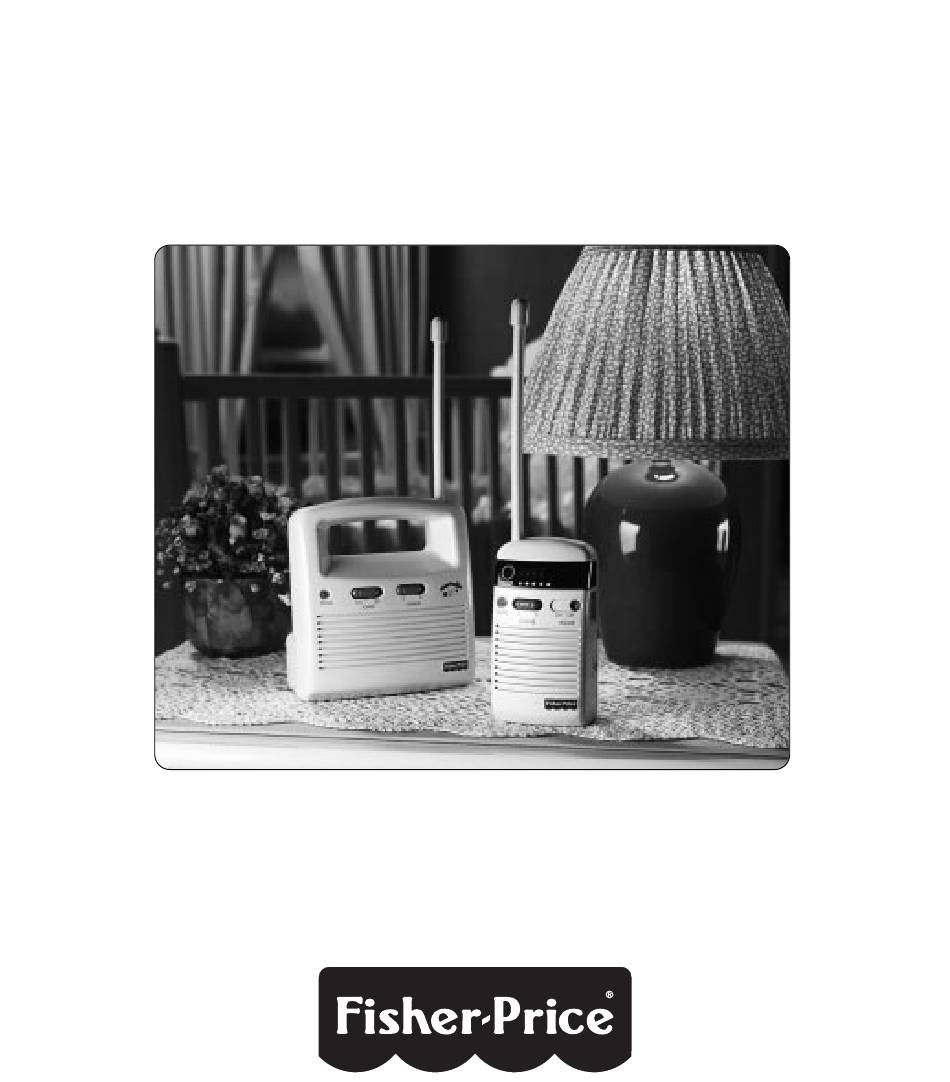

- Page 1 Direct Link Privacy Monitor ™ Model Number: 71566 Please read these instructions and keep them for future reference. Includes two AC adaptors to power the transmitter and receiver. The transmitter and receiver also run on battery power. (Transmitter requires four size “C” alkaline batteries. Receiver requires one 9V alkaline battery.
-
Page 2: Consumer Information
Place the transmitter, receiver and • Always remember that you are using public airwaves AC adaptor cord(s) out of baby’s reach. when you use the Direct Link Privacy Monitor . The • To prevent entanglement, do not use extension cords coded scrambling system blocks out listeners outside with the AC adaptors. - Page 3 Direct Link Privacy Monitor Features ™ Your Fisher-Price Direct Link Privacy Monitor is equipped with a custom voice scrambling system ® that provides privacy protection in your home. Although no system is completely private, your Fisher-Price Direct Link Privacy Monitor has two channels and 31 different codes ®...
-
Page 4: Battery Installation
Battery Installation The transmitter and receiver operate with either the AC adaptors included with your Direct Link Privacy Monitor ™ or by battery power. Four Size "C" Alkaline Batteries (6LR61) Battery Compartment Door Transmitter 1.5 V x 4 “C” (LR6) •... - Page 5 Set-Up For your convenience, the channel and code switches on the transmitter and receiver have been pre-set at Fisher-Price ® IMPORTANT! To prevent entanglement, never place the transmitter in a crib or playpen. Place the transmitter, receiver and AC adaptor cord(s) out of baby’s reach.
- Page 6 • Look at the signal indicator on the receiver. It should NOT light. If the signal indicator does NOT light on either channel (with the transmitter power “OFF”), the privacy feature on your Direct Link Privacy Monitor is working.
- Page 7 Receiver Transmitter ON/OFF Switch Channel Power Channel Switch Switch Indicator Power Indicator Variable Lights Display Signal ON/OFF/ Indicator Volume Dial • Slide the ON/OFF switch on the front of the transmitter • The variable lights display will light when sound is to the “ON”...
- Page 8 Sound Reception ™ It is very important to test the sound reception of the Direct Link Privacy Monitor before first-time use and whenever you change the location of the transmitter. ™ • If you experience interference (buzzing, static, etc.) • Test the Direct Link Privacy Monitor...
-
Page 9: Fcc Note
(United States only) • Keep the transmitter and receiver free from dust. • The outer surface of the transmitter and receiver can be ™ Direct Link Privacy Monitor cleaned with a cloth lightly dampened with a mild Model Number: 71566 cleaning solution. -
Page 10: Problems And Solutions Guide
Problems and Solutions Guide IMPORTANT! If you have a problem with the Direct Link Privacy Monitor ™ , first check the Problems and Solutions Guide. If you still experience a problem with the Direct Link Privacy Monitor ™ please call Fisher-Price ®... - Page 11 Reset code switches in receiver and transmitter so that they match. transmitter do not match Interference Signal interference due to another Make sure transmitter power is “ON”. (garbled voices) and Fisher-Price ® Direct Link Privacy Change channel switch on both transmitter and receiver to the signal indicator on Monitor ™...
-
Page 12: One (1) Year Limited Warranty
One (1) Year Limited Warranty Fisher-Price, Inc., 636 Girard Avenue, East Aurora, New York 14052 warrants to the original owner that the Direct Link Privacy Monitor is free from all defects in material and workmanship when used under normal conditions for a period of one (1) year from the date of purchase.
