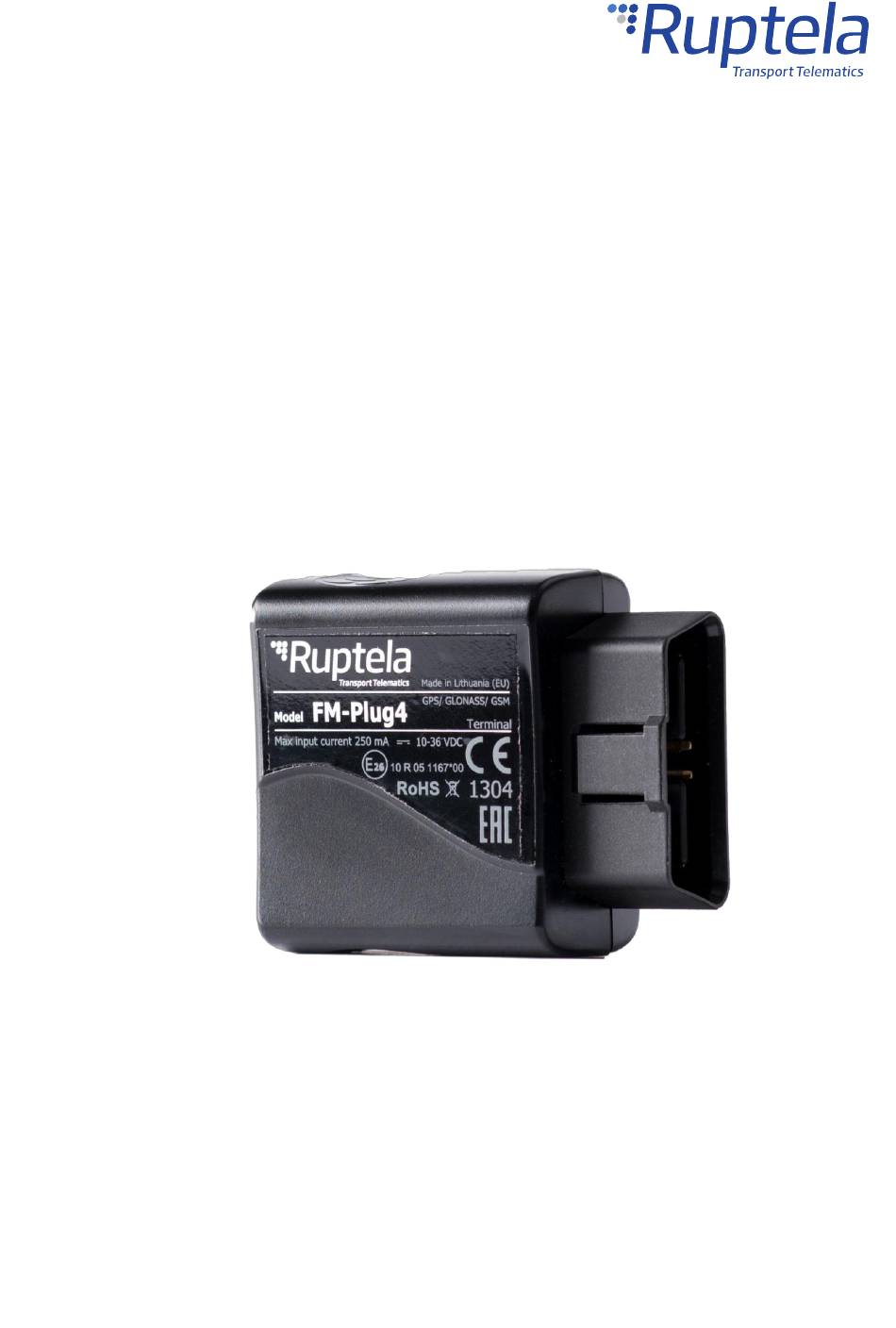

- Page 1 FM-Plug4 User Manual v2.2 2020-04-06...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................3 Purpose of This Document ..................3 Legal Information ...................... 3 Contact Information ....................3 Document Changelog ....................4 Safety Information..................... 5 Notations ........................6 Acronyms and Abbreviations ..................7 References ........................ 8 Product Information ......................9 About ........................ - Page 3 Device Configuration ...................... 21 Device Center ......................21 Starting the Configuration ..................22 6.2.1 Configuration Menu ................... 24 Configuration Basics ....................25 6.3.1 File Extension ....................25 6.3.2 Loading a Configuration from a File ..............25 6.3.3 Saving a Configuration to a File ................25 6.3.4 Loading a Configuration from a Device ...............
-
Page 4: Introduction
Introduction 1.1 Purpose of This Document The purpose of this user manual is to provide information about the FM-Plug4 devices. This user manual describes the main features of the device and how to use it. Detailed descriptions of functionalities and peripheral devices can be found on our documentation website: doc.ruptela.lt. -
Page 5: Document Changelog
1.4 Document Changelog Version Date Modification 2019-11-18 Updated: User manual structure and design. 2019-12-17 Updated: Configuration example images. 2020-04-06 Added: Backup Server. -
Page 6: Safety Information
Caution! If an incorrect type of battery is used for replacement, there is a high explosion risk. Dispose of used batteries according to the environmental requirements. For configuration use cables that were purchased from Ruptela. Ruptela is not responsible for any harm or damage caused while using the wrong cables. -
Page 7: Notations
1.6 Notations The following notations are used in this document to highlight important information: Bold text Used to indicate user interface elements or for emphasis. Italic text Used to indicate items that belong to a list and can be selected. Note Used to highlight important information or special conditions.... -
Page 8: Acronyms And Abbreviations
1.7 Acronyms and Abbreviations AC/DC – Alternating Current/Direct Current APN – Access Point Name CAN – Controller Area Network HDOP – Horizontal Dilution of Precision GLONASS – Global Navigation Satellite System GMT – Greenwich Mean Time GNSS – Global Navigation Satellite System GPRS –... -
Page 9: References
1.8 References Datasheets: https://doc.ruptela.lt/display/AB/FM-Plug4+datasheet%2C+manuals+and+peripherals Quick Start Guides: https://doc.ruptela.lt/display/AB/FM-Plug4+datasheet%2C+manuals+and+peripherals Device Center: https://doc.ruptela.lt/display/AB/Device+Center Advanced configuration manual: https://doc.ruptela.lt/display/AB/FM-Plug4+datasheet%2C+manuals+and+peripherals Firmware and configurator files: https://doc.ruptela.lt/pages/viewpage.action?pageId=884795 Microsoft Framework: https://www.microsoft.com/en-us/download/details.aspx?id=17851 VCOM drivers: https://doc.ruptela.lt/display/AB/Drivers+and+utilities... -
Page 10: Product Information

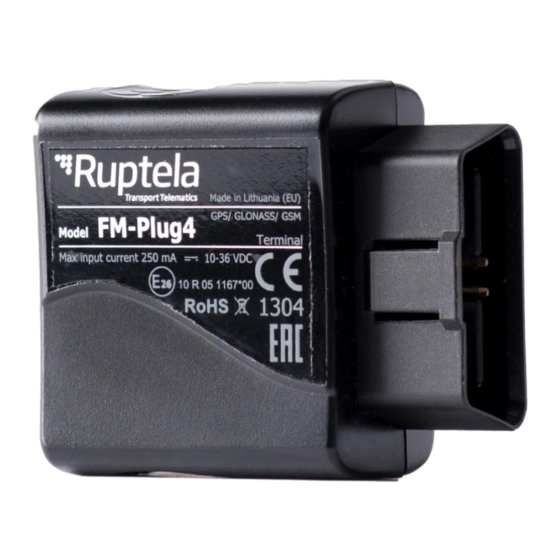

Product Information 2.1 About FM-Plug4 is a compact, low cost and low power consumption tracking device that is plugged into the vehicle using the OBD2 diagnostic port. It acquires its position with a GNSS signal and transfers data to a server via cellular GSM and GPRS networks. FM-Plug4 comes in the following variations: •... -
Page 11: Key Features
2.3 Key Features • Fast and simple installation • Vehicle location, history, mileage, speed monitoring • OBD data reading (FM-Plug4+ only) • Vehicle towing detection • Crash detection • Driver behaviour monitoring: speeding, idling, acceleration, braking, RPM (FM-Plug4+ only) -
Page 12: Package Contents
2.4 Package Contents The device is packed in a cardboard box. The package contains the device itself and may contain a USB cable (available as an optional accessory) By default, no SIM card is provided in the package. SIM cards can be obtained from your local phone operator.... -
Page 13: Certifications
2.5 Certifications The FM-Plug4 devices have passed quality tests and comply with the following certifications: Certification of Economic Commission for Europe is the European E-Mark conformity mark issued by the transport sector, indicating that the product complies with relevant laws and regulations or directives. -
Page 14: Technical Information
Technical Information 3.1 Indication LED Patterns Mode Pattern Description GNSS Once every second Accurate GSM, no GPRS Once every 4 seconds Accurate GSM, GPRS acquired connected Always on, blinks once every 4 Link with the server is open seconds Once every 0.2 seconds No signal GNSS Twice every second... -
Page 15: Physical Characteristics
250 mA @ 12 V DC 350 mA @ 12 V DC rating Internal battery – LiPo 3.7 V 190 mAh Protections Reverse polarity protection Electrostatic discharge protection on USB Battery short circuit protection (FM-Plug4+ only) Charging protection (FM-Plug4+ only) -
Page 16: Power Consumption @ 12 V Dc
3.4.3 Power Consumption @ 12 V DC FM-Plug4 FM-Plug4+ Operating Idle mode: 38.0 mA Active mode: 52.1 mA Deep sleep mode: 6.8 mA Operating while Idle mode: 110.0 mA charging battery – Active mode: 124.8 mA Deep sleep mode: 74.1 mA 3.4.4 Connectivity... -
Page 17: Interfaces
3.5 Interfaces 3.5.1 Power Supply Pins 4 (Ground), 5 (Signal ground), 16 (Power supply) Purpose To power the device Parameters Voltage range: 10 – 32 V DC 3.5.2 CAN Interface Pins 6 (CAN High), 14 (CAN Low) Purpose To read OBD data from vehicle on-board systems Applications OBD data and DTC reading 3.5.3 K-Line/L-Line... -
Page 18: Device Preparation
Device Preparation For the device to work, you first need to insert a SIM card. To do so, open the device housing and perform the actions described below. 4.1 Opening the Device Use a flat head screwdriver to open the plastic housing. Insert the screwdriver between the top and bottom parts of the housing and lift the top part up as shown in the image below. -
Page 19: Inserting A Sim Card
4.2 Inserting a SIM Card Insert your SIM card into the device as shown in the image below. The microchip must be facing down. All SIM card security codes must be disabled, otherwise the SIM card will not work with the device.... -
Page 20: Usb Cable Connection
4.4 USB Cable Connection Connect the USB cable to the micro USB port as shown in the image below. The cable can be connected in only one way. Connect the other end to your computer. The device can be configured when powered via USB, using an external power supply for configuration is optional. -
Page 21: Driver Installation
Driver Installation Before configuring the device, you must install the VCOM drivers and the latest version of Microsoft Framework, otherwise your computer will not recognize the device. You can download the VCOM drivers from our documentation website: VCOM drivers. Select a suitable driver file for your operating system as shown in the image below. Only Windows 7/8/10 operating systems are supported.... -
Page 22: Device Configuration
• Update the device firmware Download the Device Center from our documentation website: doc.ruptela.lt. You can also find a detailed description of the Device Center in the User manual section. Extract the downloaded archive to your desired location. Launch DeviceCenter.exe. -
Page 23: Starting The Configuration
6.2 Starting the Configuration After launching the Device Center, click Configure device in the start menu. If the VCOM drivers are installed, you will be directed to the configuration type selection menu. Click Connect device. - Page 24 Select your device in the device selection menu by clicking on it.
-
Page 25: Configuration Menu
6.2.1 Configuration Menu After device selection, you will be directed to the configuration menu. This menu has the following elements: 1. An Advanced mode button – opens the advanced configurator 2. Device info – displays information about the connected device 3. -
Page 26: Configuration Basics
You can upload the same configuration file to multiple devices, making it easy to receive identical data from all your vehicles. 6.3.1 File Extension Configuration file extension for FM-Plug4 devices: .fo4c Configuration files can easily be recognized by their own icon: 6.3.2 Loading a Configuration from a File Click Load from file in the button bar. -
Page 27: Loading A Configuration From A Device
6.3.4 Loading a Configuration from a Device Click Load from device in the button bar. The configuration will be loaded from the connected device. Loading a configuration from a device will discard any changes to the existing configuration. 6.3.5 Saving a Configuration to a Device Click Save to device in the button bar. -
Page 28: Essential Settings
6.4 Essential Settings Only the settings that are essential to use the device are described in this document. For a detailed description of all the additional functionalities, please refer to the Device Center advanced configuration user manuals. 6.4.1 Server Settings Open the Connection settings section. -
Page 29: Backup Server
6.4.2 Backup Server You can use a second server as a backup, in case the main server is unreachable. If the main server is reachable, no data is sent to the backup server. Both servers use the same protocol. IP/Domain name The IP address of the backup server. -
Page 30: Apn Settings
6.4.3 APN Settings APN settings are needed to connect to the internet. They must be provided by your SIM card provider. Name The APN name. This parameter is mandatory for most SIM cards. Consult with your SIM card provider for more information. Username The APN username. -
Page 31: Engine Detection And Data Collection Settings
6.4.4 Engine Detection and Data Collection Settings Open the Engine detection and data collection section. Select an engine state detection method and set the tracking accuracy. When the engine is turned on, records are generated more often. The detected engine state is also used by other functionalities, such as driver registration. Engine state detection How the device detects whether the engine is turned on. -
Page 32: Advanced Configuration
Advanced mode in the top bar at any time. A detailed description of the advanced configurator is available at doc.ruptela.lt. Close the advanced configurator to return to the Device Center. If you change any settings that are only available in the advanced configurator, you will not be able to use that configuration in the Device Center and will need to reset it. -
Page 33: Updating Firmware
The device will not send any data during firmware updates. 6.7.1 File Extension Firmware file extension for FM-Plug4 devices: .efwo4 6.7.2 Updating Firmware Automatically If the Device Center version is newer than the detected device firmware version, it will suggest updating the firmware. -
Page 34: Updating Firmware Manually
6.7.3 Updating Firmware Manually This feature requires the use of the advanced configurator. To update firmware manually, open the advanced configurator. Click Connect and Send FW in the main configurator menu. Locate your firmware file and click Open. The firmware update process will start. -
Page 35: Installation In Vehicle
Installation in Vehicle To install the device, you need to connect it to the OBD2 socket. Locate the OBD2 socket in your vehicle (typically located on the driver side, underneath a panel). Insert the device into the OBD2 socket as shown in the image below. There is only one way to plug the device in, be careful not to damage the pins. -
Page 36: Troubleshooting
7.2 Troubleshooting If you did not receive the required data during the installation, you can send several SMS commands to your device to check what might be wrong. 7.2.1 gsminfo gsminfo Use the SMS command to know if the device is connected to GSM and GPRS networks. password gsminfo Command syntax: ST:2019.06.20 23:26:33;... -
Page 37: Coords
getapn If the response text is very long (for example, the APN, username and password are 32 symbols long each and two servers are used), it might not fit into a single message and be cropped. 7.2.3 coords coords Use the SMS command to know if the device has an accurate GNSS fix.
