RUPTELA
GPS/ GSM Terminal

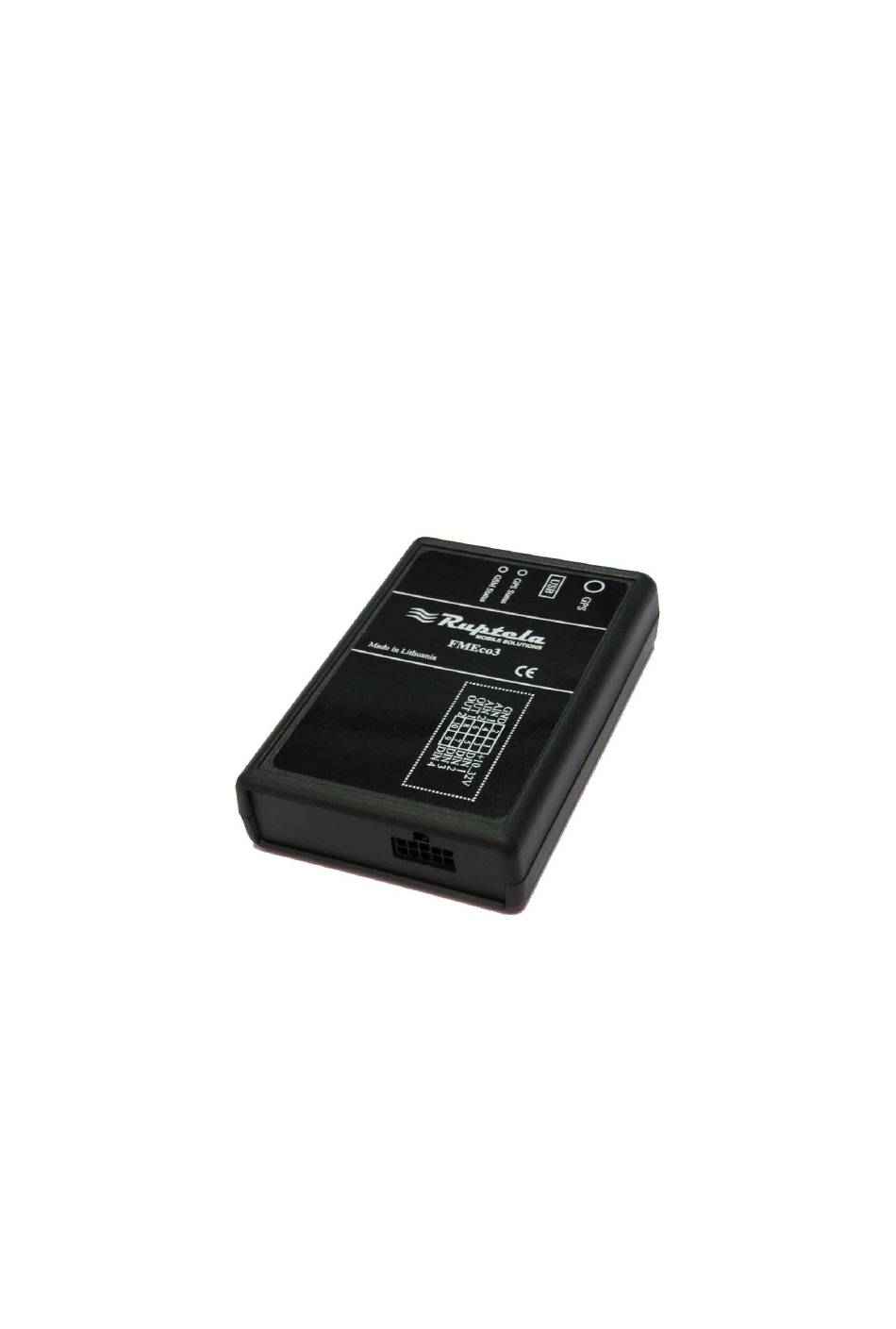

Model: FM-Eco3
MANUAL
V2.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM-Eco3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RUPTELA FM-Eco3

  • Page 1 RUPTELA GPS/ GSM Terminal Model: FM-Eco3 MANUAL V2.2...
  • Page 2: Table Of Contents

    1.2. LEGAL NOTICE 1.3. ACRONYMS AND TERMS USED IN DOCUMENT 2. BASIC DESCRIPTION 2.1. PACKAGE CONTENTS 2.2. BASIC CHARACTERISTICS 2.3. TECHNICAL FEATURES 2.4. FM-Eco3 DIMENSIONS 2.5. LED STATUSES 2.6. PINOUT, CONNECTION 2.7. SPECIAL FEATURES 3. INSTALLATION INSTRUCTIONS 3.1. MODULE INSTALLATION...
  • Page 3: Introduction

    1. INTRODUCTION 1.1. SAFETY REQUIREMENTS All the associated (additional) equipments as PC, batteries, sensors and others, shall meet the requirements of standard EN60950-1. Do not disassemble the Terminal. If the enclosure of Terminal is damaged, or the insulation of wires is damaged, first of all unplug the 10 pins connector from the Terminal carefully.
  • Page 4 1A/500mA. The allowed voltage range for battery: 10…32V DC. To avoid mechanical damage, it is advised to transport the Terminal FM-Eco3 in an impact- proof package. Before connecting any pins of 10 pin plug to the vehicle, ensure that plug is disconnected sectional area of mounting wires is at least 0.75 mm...
  • Page 5: Legal Notice

    • GSM – Global System for Mobile Communications. • SMS – Short Message Service. • AC/DC – Alternating Current/Direct Current. • Record – Data stored in FM-Eco3 memory. Data contains GPS and I/O Information. • LED – Light Emitting Diode. • I/O – Inputs / Outputs.
  • Page 6: Basic Description

    2. BASIC DESCRIPTION FM-Eco3 is a Terminal with GPS / GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This Terminal is perfectly suitable for applications where location acquirement of remote objects is needed. It is important to mention that FM-Eco3 has additional inputs and outputs, which lets controlling and monitoring other remote objects.
  • Page 7: Package Contents

    2.1. PACKAGE CONTENTS Figure2. FM-Eco3 Terminal, Power cable and GPS antenna. The FM-Eco3 Terminal is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The package contains: • The FM-Eco3 Terminal. • 10 pin plug with wires for power supply and I/O connection •...
  • Page 8: Basic Characteristics

    2.3. BASIC CHARACTERISTICS Inputs / Outputs: IO1 – 10 pin (2x5 plug): Paired connections scheme: Other Inputs / Outputs are not paired.
  • Page 9: Technical Features

    2.4. TECHNICAL FEATURES: Power supply External Battery Ratings: Ublox module (with external GPS antenna) +12/24V 1A/500mA Fuse External fuse (mounted GPRS/GSM Simcom module (with into +BAT wire): internal GPS antenna) F 2AL Motion Micro vibration sensor sensor Dimensions 92.2 x 64 x 25.2 mm LED’s GPS fix led, GSM led,...
  • Page 10: Fm-Eco3 Dimensions

    2.5. FM-Eco3 DIMENSIONS.
  • Page 11: Led Statuses

    2.6. LED STATUSES: GPS LED When GPS signal is not received or GPS signal is not accurate, the GPS LED is blinking as follows: When accurate GPS signal is received, the GPS LED is blinking as follows: GSM LED When GSM signal is not received, GSM led is blinking: When Terminal has good GSM signal, but no GPRS, LED is blinking: When Terminal has good GSM signal and it is connected to GPRS, then LED is blinking:...
  • Page 12: Pinout, Connection

    When the FM-Eco3 terminal has GSM signal and it is sending data via GPRS, LED is blinking: 2.7. PINOUT, CONNECTION: FM-Eco3 standard plug. Standard FM-Eco3 10 pins plug description: Pin name Description +BAT 12/24V Battery rated voltage: 12/24V. Allowed battery voltage range: 10...32V...
  • Page 13: Special Features

    2.8. USB Description name Data - Data + Chassis 2.9. SPECIAL FEATURES: • Any element event triggers (input, speed, etc.) • Smart profile switching (GSM operator or any element dependant) • Highly configurable data acquisition and sending • Real-time process monitoring •...
  • Page 14: Mounting Recommendations

    3. MOUNTING RECOMMENDATIONS Connecting Wires • Wires should be connected while module is not plugged in. • Wires should be fastened to the other wires or non-moving parts. Try to avoid heat emitting and moving objects near the wires. • The connections should not be seen very clearly. If factory insulation was removed while connecting wires, it should be applied again.
  • Page 15: Module Installation

    3.1. MODULE INSTALLATION • Module should not be seen or easily reached. • Module should be firmly fixed to the surface or cables. • Module cannot be fixed to heat emitting or moving parts. • SIM card should be inserted in the module while the connector is plugged off (while module has no power).
  • Page 16 PAY YOUR ATTENTION THAT FM-ECO3 TERMINAL HAS INTERNAL GSM ANTENNA! To ensure good FM-Eco3 GPS and GSM connectivity it is strongly recommended to install not less than 50mm from any metal shield parts as it is shown in the picture below.
  • Page 17 Installation near metal shield parts as shown in the picture below does not guarantee good GSM and GPS connectivity.
