IMPORTANT:
"
"
ITEM NAME:
GALVANISED STEEL 5 TIER RACKING
(WITH OR WITHOUT METAL DRAWER)
30 mins
APPROXIMATE ASSEMBLY
TIME
"
"
KL-SDR-001
"
Read Assembly Instructions carefully
and retain for future reference."
DESCRIPTION
2 PERSONS ASEEMBLY
"
"
"
REQUIRED ASSEMBLY TOOLS:
"
"
"
"
"
"
PRODUCT
CODE:
Floor Area
2500 mm x
"
1000 mm
"
SCREWDRIVER
RUBBER FACED MALLET
PLIERS
GLOVES

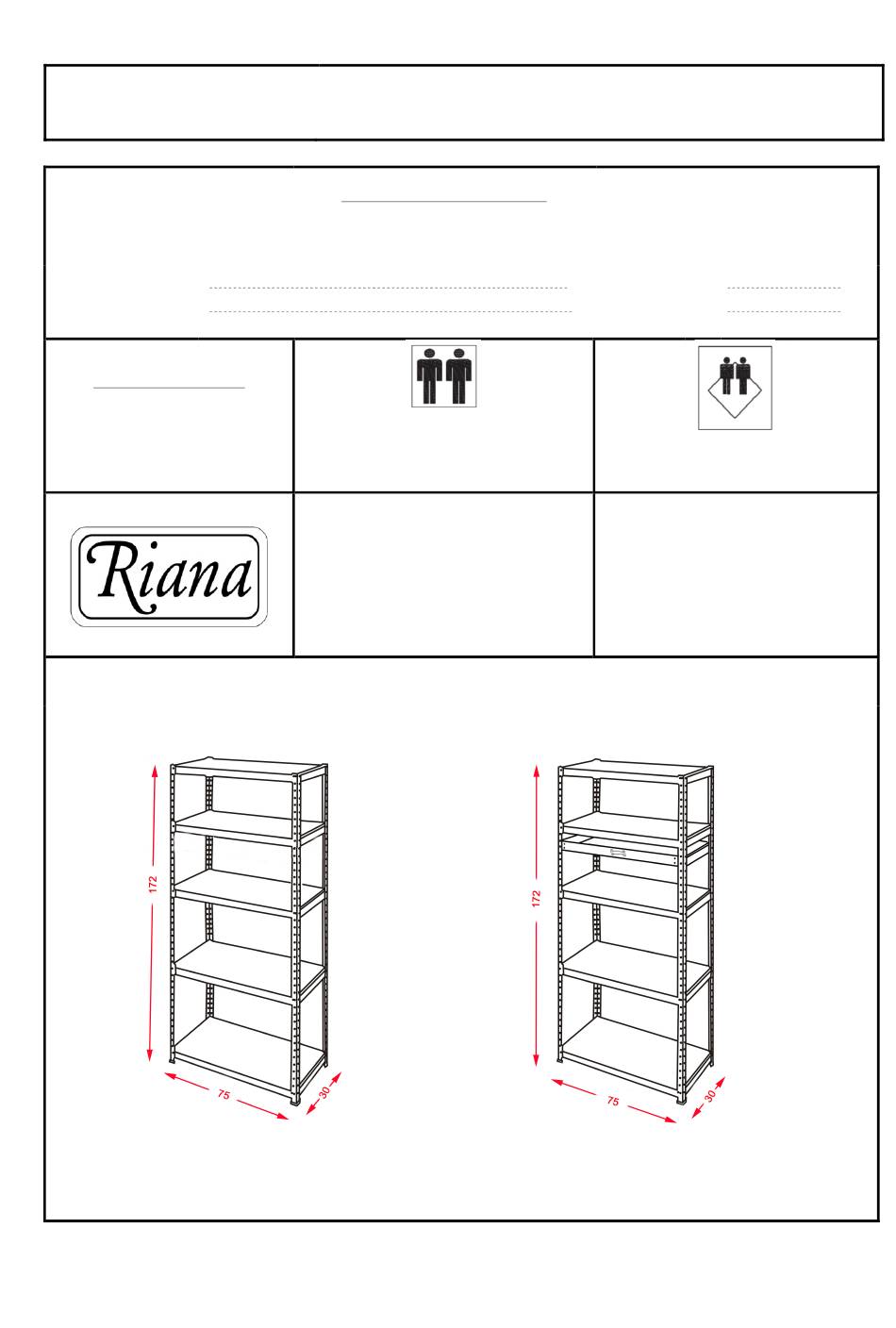

ASSEMBLED DIMENSIONS (cm)
"
"
"
"
"
"
"
KL-SDR-002
1
1
KL-SDR-001
KL-SDR-002
"
"
REQUIRED ASSEMBLY SPACE
Ceiling Height
2000 mm
Advertisement
Related Manuals for Riana KL-SDR-001
Summary of Contents for Riana KL-SDR-001
- Page 1 " " " DESCRIPTION " " " " ITEM NAME: GALVANISED STEEL 5 TIER RACKING PRODUCT KL-SDR-001 (WITH OR WITHOUT METAL DRAWER) CODE: KL-SDR-002 " 30 mins Floor Area Ceiling Height 2500 mm x 2000 mm " 1000 mm "...
- Page 2 2 ...
- Page 3 3 ...
- Page 4 COMPONENT CHECKLIST FOR RACKING UNIT Part Number Component Line Drawing Quantity Upright Frame Front and Back Beam Side Beam MDF Board Upright Connector Plastic Protective Feet Connector CONFIGURATION 1 CONFIGURATION 2 5 TIER RACKING UNIT WORKBENCH 4 ...
- Page 5 CONFIGURATION 1: 5 TIER RACKING UNIT STEP 1: Begin by slotting a Side Beam into an Upright Frame. You may use a rubber mallet to tap it into the slot gently. You may use a screwdriver to guide the tabs into the slot. STEP 2: Using the same, simple technique as STEP 1, assemble one shelf,...
- Page 6 STEP 4: Add the remaining shelves, using the same technique as previously. You may dictate the spacing of the shelves as you wish, and the shelf heights may be adjusted later if required. Once satisfied with the structure, insert the MDF Boards, as the bases of the shelves.
- Page 7 CONFIGURATION 2: WORKBENCH " STEP 1: Insert the Side Beam into the highest slot on the Upright Frame. You may tap down gently with a rubber mallet for ease. STEP 2: Ensure that the Side Beams are level when tapping it into the second Upright Frame.
- Page 8 STEP 4: Use the long Front and Back Beams to join the side frames together. You will then have two structures, as pictured. When comfortable that the structures align correctly and that the shelves are at a suitable height, insert the MDF boards as the bases of the shelves.
- Page 9 Per Bay 375kg UDL Note: Illustrations may not be to scale. KL-SDR-001: Congratulations! Your Racking Unit is now fully assembled and ready to use. Your item does not come with the Drawer, but this may be bought separately. KL-SDR-002: ! Please continue reading the Assembly Instructions to assemble the Drawer, which is included.
- Page 10 COMPONENT CHECKLIST FOR DRAWER Part Number Component Line Drawing Quantity Bolt/Nut – Small Bolt/Washer/Nut – Short Please make sure that the holes are on the correct side. Drawer Front – Long Drawer Sides Short Drawer Base Drawer Back - Long This part comes pre-assembled together with Part H.
- Page 11 STEP 1: STEP 2: STEP 3: Drawer Base must rest on the interior ledges. STEP 4: STEP 5: Separate Drawer Runners, ‘Part G’ and ‘Part H’. Extend all the way outwards until the small runner ‘pops’, revealing the end of a clip retainer. Press in the clip to release the small runner and separate the two parts.
- Page 12 STEP 6: Note: Make sure that the closed end of ‘Part H’ is facing the front of the drawer unit, as shown. STEP 7: STEP 8: Slot the Drawer Supports from ‘Step 7’ into the Racking Unit at your preferred height. May use a Rubber Mallet to tap gently, or a screwdriver to guide the tabs into the slots.
