OPTITEC Wireless Remote Control Wheel V3 Operator's Manual page 2

Table of Contents

Advertisement

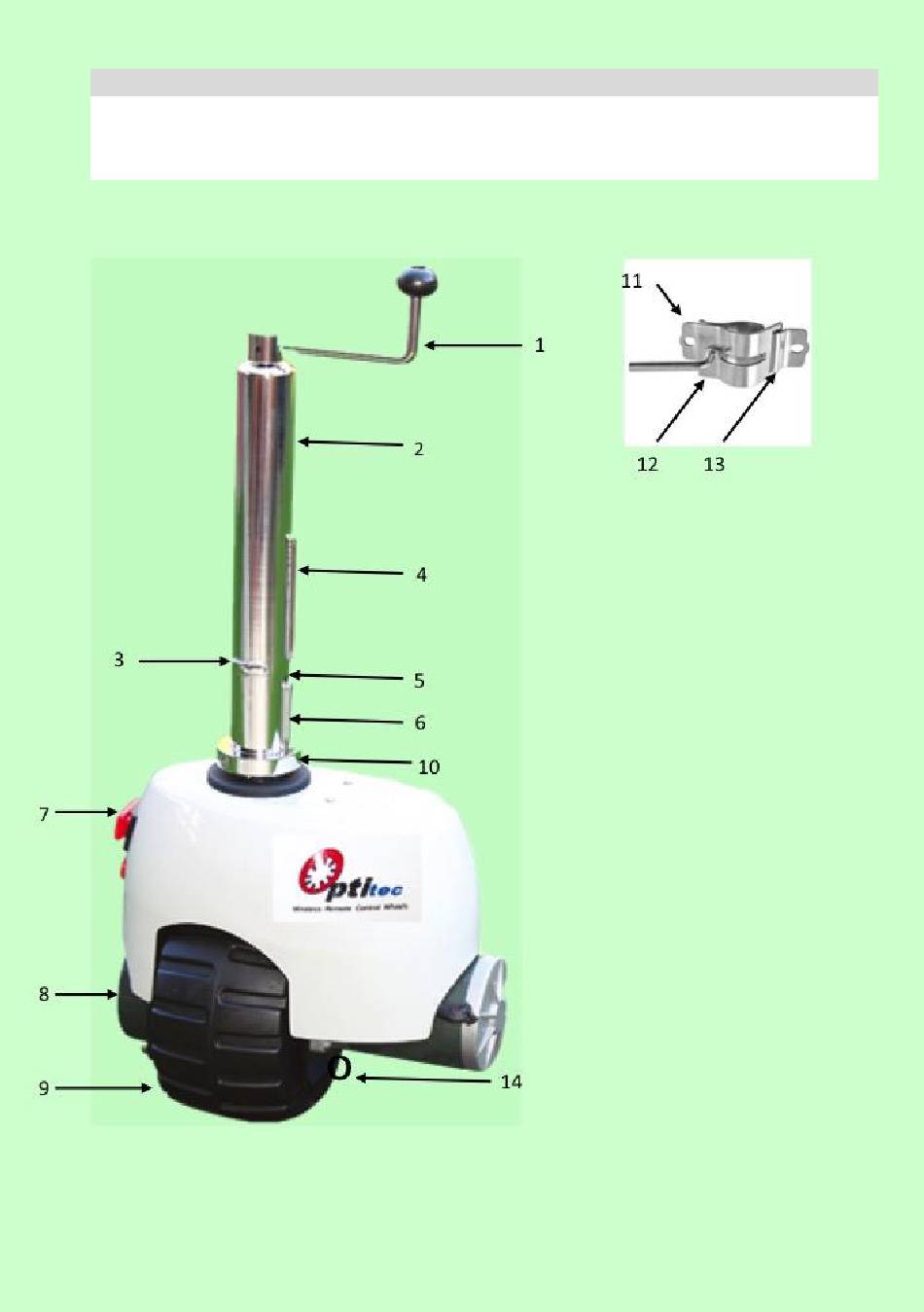

Wireless Remote Control Wheel
1. Raise-lower handle
2. Main support shaft
3. Shaft to Clamp Locating Lug
4. Outer Shaft Locating Strip
5. Shaft rotation Locking Keyway Slot
6. Inner shaft rotation Locking Key
7. Anderson plug
8. Motor gearbox drive
9. Wheel and tyre
10. Shaft Keyway Locating Ring
11. Clamp
12. Clamp opening
13. Clamp Hinge
14. Padlocking Security Lug
