Bleriot XI "La Manche

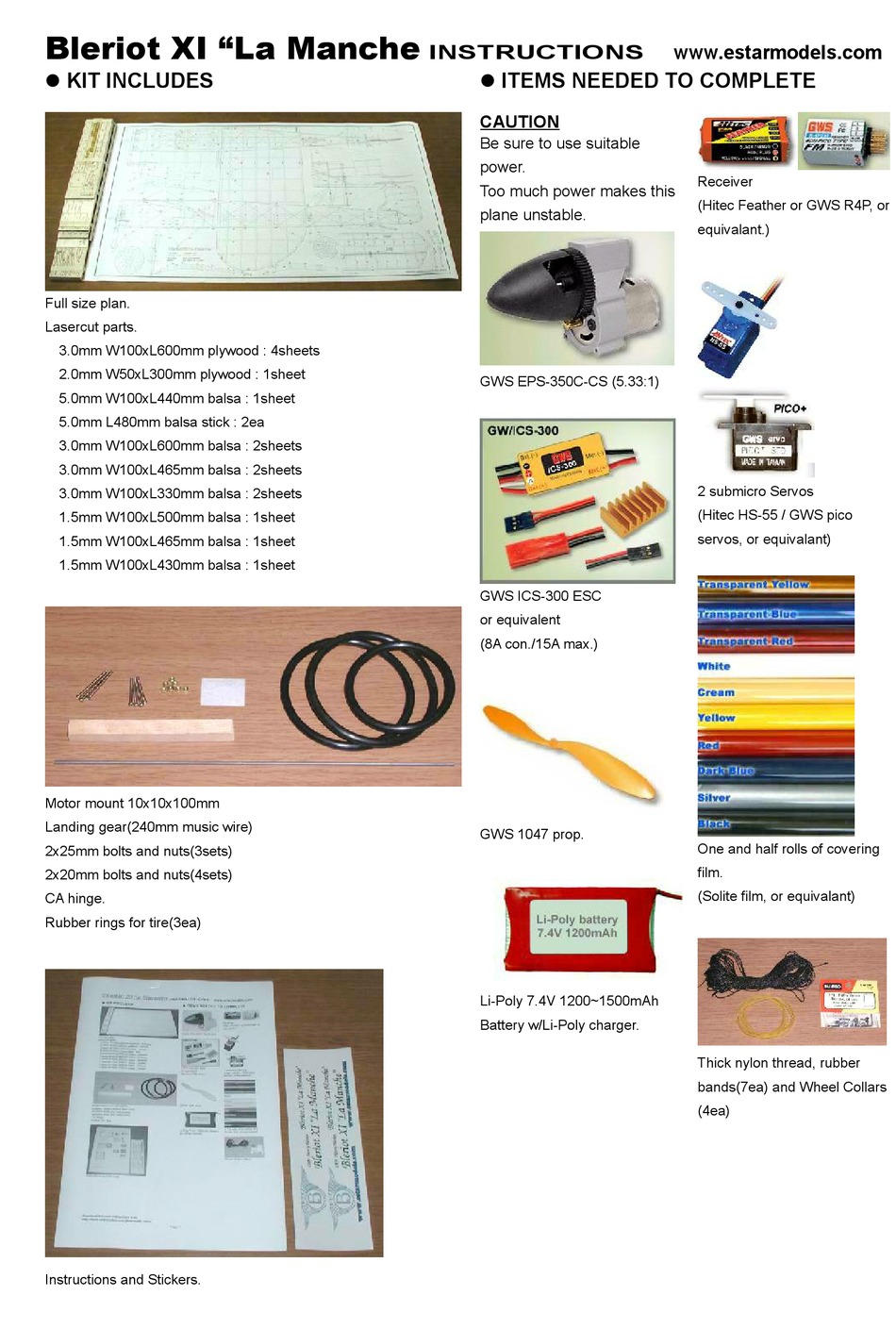

 KIT INCLUDES
Full size plan.
Lasercut parts.
3.0mm W100xL600mm plywood : 4sheets
2.0mm W50xL300mm plywood : 1sheet
5.0mm W100xL440mm balsa : 1sheet
5.0mm L480mm balsa stick : 2ea
3.0mm W100xL600mm balsa : 2sheets
3.0mm W100xL465mm balsa : 2sheets
3.0mm W100xL330mm balsa : 2sheets
1.5mm W100xL500mm balsa : 1sheet
1.5mm W100xL465mm balsa : 1sheet
1.5mm W100xL430mm balsa : 1sheet
Motor mount 10x10x100mm
Landing gear(240mm music wire)
2x25mm bolts and nuts(3sets)
2x20mm bolts and nuts(4sets)
CA hinge.
Rubber rings for tire(3ea)
Instructions and Stickers.
INSTRUCTIONS
 ITEMS NEEDED TO COMPLETE
CAUTION
Be sure to use suitable
power.
Too much power makes this
plane unstable.
GWS EPS-350C-CS (5.33:1)
GWS ICS-300 ESC
or equivalent
(8A con./15A max.)
GWS 1047 prop.
Li-Poly 7.4V 1200~1500mAh
Battery w/Li-Poly charger.
www.estarmodels.com
Receiver
(Hitec Feather or GWS R4P, or
equivalant.)
2 submicro Servos
(Hitec HS-55 / GWS pico
servos, or equivalant)
One and half rolls of covering
film.
(Solite film, or equivalant)
Thick nylon thread, rubber
bands(7ea) and Wheel Collars
(4ea)
