Maxcom MM-820 Manual

Hide thumbs Also See for MM-820:

Advertisement

Quick Links

Download this manual
Led light (Battery level low)
Led light(New message)
Led light（flashes you have missed calls）
Led light（flashes the Clock is working）

Advertisement

loading
Need help?

Need help?

Do you have a question about the MM-820 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxcom MM-820

Summary of Contents for Maxcom MM-820

  • Page 1 Led light (Battery level low) Led light(New message) Led light（flashes you have missed calls） Led light（flashes the Clock is working）...

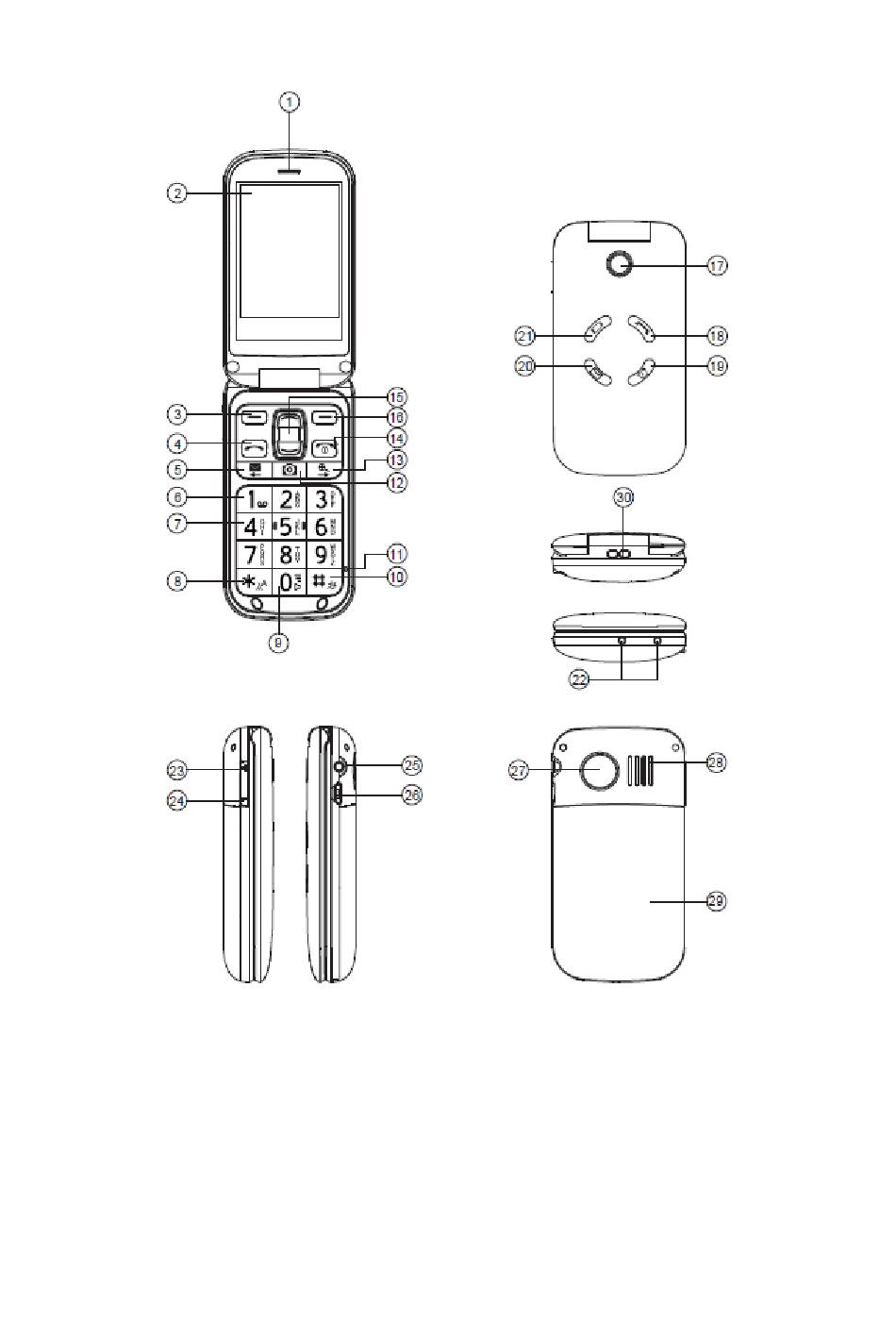

  • Page 2 English 1. Receiver 2. LCD display 3. Left soft key 4. Call key 5. SMS shortcut key/Menu click 6. Voice mail key 7. Numeric Keypad 8. Star key/input method swift 9. Handsfree key 10.Silent mode key 11.Mic 12. Camera 13. Magnifier/Menu button 14.
  • Page 3 stalling the SIM card and battery Charging Phone indicators Operation Activating the one Making a call Making a call from the Phonebook Receiving a call Volume control Displaysymbols Additionalfunctions Call options Call waiting Call information Call log Phonebook Silent mode Headset SOS calls Emergency Call key...
  • Page 4 Warrantyandtechnical.data Installation Warning! Turnoffthephoneanddisconnectthechargerbefore. Removingthebatterycover InstallingtheSIMcardandbattery The SIM card holder is located behind the battery . 1：Remove the battery cover by pressing it carefully down and sliding away from the emergency call key . 2：Remove the battery: if it is already installed . 3：Press lightly on the cardholder and carefully slide it towards the emergency call key .
  • Page 5 Charging Warning! Only.use.batteries,.charger.and.accessories.that.have.been.approved.for.use.with.t his.particular.model..Connecting.other.accessories.may.be.dangerous.and.may.inva lidate.the.phone’s.type.approval.and.guarantee . Whenthe battery is running low, is displayed and a warning signal is heard . To charge the battery, connect the mainsadapter to the wall socket and to the charging socket is displayed briefly when the charger is connected to thephone, and when it is disconnected .
  • Page 6 Phoneindicators When flashes you have a new message or a missed call. When flashes the batteries is running out When flashes you have missed calls When flashes the Clock is working Operation Activatingthe phone Press and hold the red button on the phone to turn it on/off .The following messages may be displayed: SIM card missing or incorrectly inserted .
  • Page 7 Changingthelanguagetimeanddate On first use, the phone language, time and date must be set. The default language is determined by the SIM card . See Settings on how to change language, time and date . If the operator supports automatic time/date setting, you might get a question upon installation if you want to updateto the suggested time .Press Yes to accept or No to reject the suggested time .
  • Page 8 Additional functions Calloptions During a call the soft keys1 give access to additional functions: Options.(leftsoftkey) A menu with the following options is displayed: Holdthecurrent call Holdsinglecall Endsinglecall End the current call(same as Call another number (three-partycall) Newcall Phonebook Search thephonebook Write or read SMS messages.And access File Msgcentre manager...
  • Page 9 SPKon(rightsoftkey) Activates handsfree mode, which allows you to speak without holding the phone . Speak clearly into the microphone at a maximum distance of 1 meter (3 feet) Use the side keys +/– to adjust the loudspeaker volume . Press SPK off to return to normal mode . Note! The handsfree function allows only one person at a time to talk.
  • Page 10 Save Save the number in the Phonebook Phonebook The phonebook can store 300 entries with 3 phone numbers in each entry . Creatingaphonebookentry 1：Press :Menu, scroll to and press OK . 2：Select -New contact- and press Add . 3：Enter a name for the contact, see Text input . Delete with Clear . 4：Use to select Mobile, Home number or Office number, and enter thephone number(s), then press Save .
  • Page 11 2：Use the arrow keys to scroll through thephonebook, or quick search by pressing the key correspondingto the first letter of the entry. 3：Press OK to save the selected entry, or press Back to return to the menu . To delete a Top 0 entry, select the entry in the Top 10 list and press Options, then Delete .
  • Page 12 Press SOS, then press Yes to automatically call112 . Press No to return to the activation screen . If you pressed Yes by mistake, press Abort immediately to abort . As long asthe phone is switched on, it is always possible to place an emergency call by entering 112 followed by Most –...
  • Page 13 Note! The alarm function will work even when the phone is switched off. When the alarm goes off a signal will sound. Press Stop to turn off the alarm or press Snooze to repeat the alarm after 9minutes. Calendar 1：Press Menu, scroll to and press OK .
  • Page 14 Textinput Text is entered by pressing the numerical keys repeatedly to select characters . When writing SMS messages in some languages you can use the Smart ABC (eZiType™) input method which uses a dictionary to suggest words . See Settings on how to change input method . Enteringtext Press the key repeatedly until the desired character is shown .
  • Page 15 3.select the Auto Search and press ok Turn off the Radio Enter the FM radio menu, Press key “5” to turn off the FM radio” SMSmessaging CreatingandsendingSMS 1：Press Menu, scroll to and press OK . 2：Select Messages and press OK . 3：Select Write message and press OK .
  • Page 16 1：Press Menu, scroll to and press OK . 2：Select Messages and press OK . 3：Select Inbox and press OK . 4： Select a message from the list and press Read . Use to scroll the message up/down . 5：Press Options, see Outgoing SMS (Outbox) . OutgoingSMS(Outbox) 1：Press Menu, scroll to and press OK .
  • Page 17 1：Use the arrow keys to select one of the displayed numbers . 2：Press Options . 3：Select one of the following options and press OK . Call Call the selected number Save Save the number in the phonebook Send.SMS Write a new SMS message Settings Note! The settings described in this chapter are carried out in standby mode.
  • Page 18 SettingAutotimeon/off 1：Press Menu, scroll to and press OK . 2：select Phone Settings and press OK . 3：Select Time& Date and press OK 4：Select Auto time and press OK . 5：Select On/Off and press OK . Usersetup Changingthelanguage The default language for the phone menus, messages etc .is determined by the SIM card .
  • Page 19 3：Select LCD backlight and press OK . 4：Select the brightness levels from 1~5 . Tonesettings(rings&tones) Tonesetup 1：Press Menu, scroll to and press OK . 2：Select user Profile and press OK . 3：Select go to General and then select the Customizeand press OK . 4：Select the Tone Settings and press Ok 5：...
  • Page 20 while vibration and key tone settings are unchanged . 1：Select Silent and pressOK . 2：Select On/Off to enable/disable it . 3：Press OK to save . Alternatively press and hold # to activate/deactivate Silent . Bluetooth This device can be compatible to the Bluetooth device. 1.
  • Page 21 Emergency Call key enabled. To activate, hold key for >3 OnNormal seconds, or press 2 times within second . Emergency Call key enabled . On.(3) To activate, press key 3 times withinsecond . Numberslist The list of numbers that will be called when the Emergency Call key is pressed . 1：Press Menu, scroll to and press OK .
  • Page 22 2：Select Voice mail and press OK . 3：Select Empty and press Options . 4 ： SelectPhonebook if want to add contact from the Phonebook .Alternatively press Manual to add new . See Phonebook on how to add names/numbers . 5：Press Save to confirm. ConnecttoVoicemail 1：Select Options and press OK .
  • Page 23 1：Press Menu, scroll to and press OK . 2：Select Call setup and press OK for the following settings: CallerID Controls display of your phone number on the recipients phone . Select an option and press OK . Set.by.network Use default setting by the network Hide.ID Never show your number Send.ID...
  • Page 24 Incoming.calls Press OK then select: All calls User can dial out but not receive incoming calls . User can not receive incoming calls while roaming When roaming (operating in other networks) . Cancel.all Cancel all call barring (password needed) Answer.mode Select Open to answer and press On to be able to answer incoming calls by cover opening .
  • Page 25 4：Press On to enable Smart ABC/eZiType™, see Textinput . 5：Select a dictionary (language) and press OK to confirm. Networksetup 1：Press Menu, scroll to and press OK . 2：Select Network setup and press OK . 3：Select one of the following options and press OK to confirm. Automatic Network is selected automatically .
  • Page 26 3：Enter the new code again and confirm with OK . Reset Resets the phone to the factory settings . Input the phone lock password and press OK to reset . Safetyinstructions Warning! Theunit.and.the.accessories.can.contain.small.partsKeep.all.of.the.equipment. out.of.the.reach.of.small.children Operating.environment Follow the rules and laws that apply wherever you are, and always turn off the unit whenever its use is prohibited or can cause interference or hazards .
  • Page 27 • Should always keep the phone more than 5 cm from their pacemaker when the phone is turned on • Should not carry the phone in a breast pocket • Should use the ear opposite the pacemaker to minimize the potential for interference If you have any reason to suspect that interference is taking place, turn the phone off immediately .
  • Page 28 Do not place objects, including fixed or portable radio equipment in the area above the airbag or the area where it might expand . Serious injuries may be caused if the mobile phone equipment is incorrectly installed and the airbag fills with air.
  • Page 29 SIM.card.error SIM.card.damaged Check the condition of the SIM card . If it is damaged, contact the network operator . SIM.card.incorrectly.installed Check the installation of the SIM card . Remove the card and reinstall it . SIM.card.dirty.or.damp Wipe the contact surfaces of the SIM card with a clean cloth .
  • Page 30 gets wet, you should remove the battery and allow the unit to dry completely before you replace it . • Do not use or keep the unit in dusty, dirty environments . The unit’s moving parts and electronic components can be damaged . •...
  • Page 31 Dimensions: 100.8 mm x52.5 mm x19.8 mm Weight:95 g (including battery) Battery: 3 .7V/800 mAh Li-ion battery...
