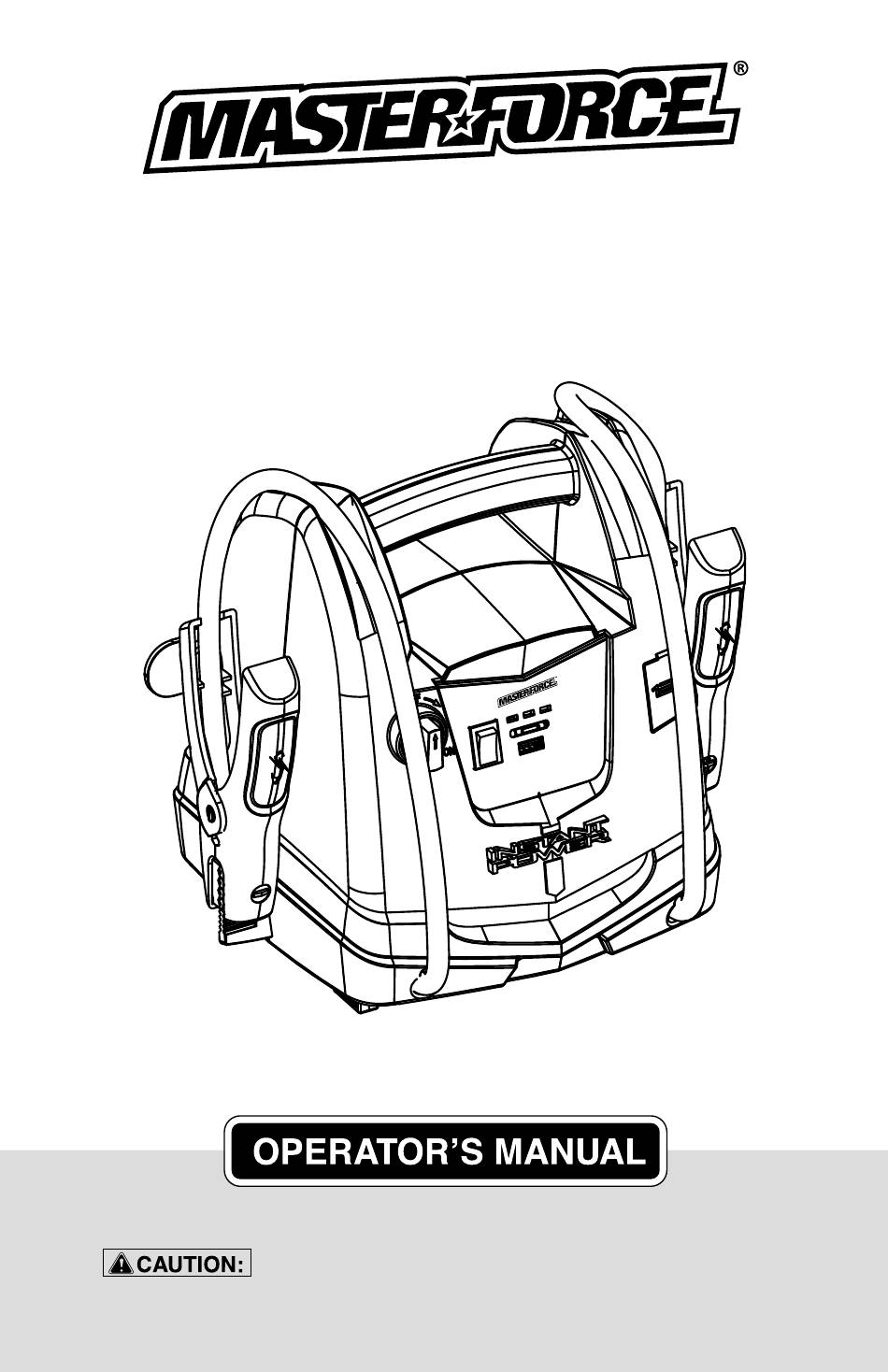

- Page 1 800 Peak Amp Jump Starter, USB Power Source and Compressor 260-9517 To Reduce The Risk Of Injury, User Must Read And Understand Operator’s Manual. Save These Instructions For Future Reference. 0099002179-00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols ................Page 3 Safety Information ................Page 4 Important Safety Instructions ............Page 5 Personal Safety Precautions............Page 6 Charging the Internal Battery of the Jump Starter .......Page 6 Operating Instructions ..............Page 7 Maintenance Instructions ..............Page 8 Moving and Storage Instructions ..........Page 8 Troubleshooting ................Page 9 Specifications ................Page 10 Replacement Parts ...............Page 10... -
Page 3: Safety Symbols
SAFETY SYMBOLS Some of the following symbols may be used on your jump starter. Please study them and learn their meaning. Proper interpretation of these symbols will allow better and safer operation of the jump starter. Symbol Name Designation/Explanation Volts Voltage Amperes Current... -
Page 4: Safety Information
SAFETY INFORMATION The purpose of safety symbols is to attract our attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The symbol warnings do not by themselves eliminate any danger. The instructions and warnings they give are no substitutes for proper accident pre- vention measures. -
Page 5: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. 1.7 Place the jump starter as far away from the battery being jumped as the cables will permit. RISK OF EXPLOSIVE GASES. 1.8 Do not expose the jump starter to rain or snow. WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. -
Page 6: Personal Safety Precautions
2. PERSONAL SAFETY PRECAUTIONS 2.1 Wear complete eye protection and 2.4 Neutralize any acid spills thoroughly protective clothing when working with baking soda before attempting near lead-acid batteries. Always to clean up. have someone nearby for help. 2.5 Remove all personal metal items from 2.2 Have plenty of fresh water, soap and your body, such as rings, bracelets, baking soda nearby for use, in case... -
Page 7: Operating Instructions
NOTE: The RED LED does not operate the front of the unit. When the battery during this method of charging. Using this is fully charged, disconnect the acces- method to charge the battery overrides sory cable from the unit, and then from the maintain mode and the battery can be the lighter socket of the vehicle. -
Page 8: Maintenance Instructions
ESTIMATED RUN-TIMES 2. Remove the air compressor hose from the storage cleats. APPROX. APPLIANCE TYPE WATTAGE USAGE 3. Connect the adapter to the valve stem by threading it onto the end. If neces- Cell phone, 4 watts 34 hrs sary, use one of the additional adaptors. fluorescent light Radio, fan, 4. -
Page 9: Troubleshooting
IMPORTANT: ually self-discharge (lose power) over time, especially in warm environments. • CHARGE IMMEDIATELY AFTER Leaving the battery in a discharged PURCHASE state may result in permanent battery • KEEP FULLY CHARGED damage. To ensure satisfactory perfor- mance and avoid permanent damage, Charge the jump starter’s internal battery charge the internal battery every month. -
Page 10: Specifications
8. SPECIFICATIONS Internal battery type ....... Sealed maintenance-free AGM lead-acid Nominal voltage ..................... 12V DC USB output ....................5V DC, 2A Jump start ................ 800A peak/400A cranking 9. REPLACEMENT PARTS Air compressor accessory kit (3 hose adapters) ........ 2299001425Z ACCESSORIES Male-to-male accessory cable ..............94500109 Page 10... -
Page 11: Warranty
® discretion, MASTERFORCE™ agrees to have the item or any defective part(s) repaired or replaced with the same or similar MASTERFORCE™ product or part free of charge, within the stated warranty period, when returned by the original purchaser with original sales receipt. Not withstanding the foregoing, this limited warranty does not cover any damage that has resulted from abuse or misuse of the Merchandise. - Page 12 © 2020 Menard, Inc., Eau Claire, WI 54703 03/2020...
