EZSmart App User Manual - BKL16, 2nd Ver.
Introduction and Features:

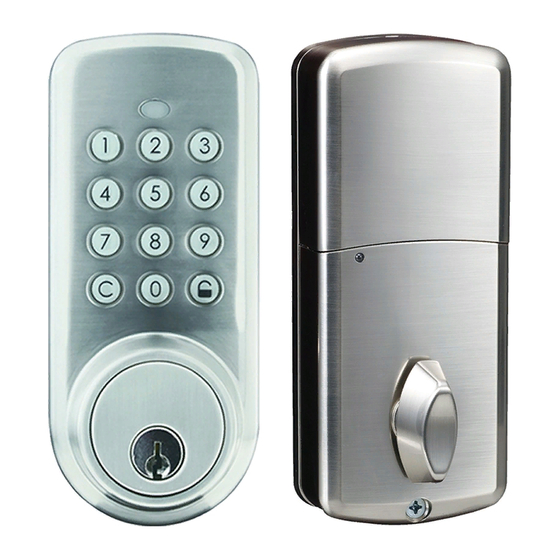

EZSmart-BKL16, is the most economical way to provide
secure and convenient control of your deadbolt door lock. You
can unlock the door by keypad's access codes; accessing to
the App for App Unlock or simply touching *keypad's
key to unlock (* App must running for authentication). The
deadbolt's keypad can offer another secure and alternative
way to access the door lock without smartphone or simply
using the Key Fob (optional item). The keypad comes with
backlight feature for night time entering passcode assistant.
EZSmart App allows you to grant or revoke access to a third
party's smartphone by secure QR Code or email. This virtual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BKL16 and is the answer not in the manual?

Questions and answers

Related Manuals for Ardi BKL16

Summary of Contents for Ardi BKL16

  • Page 1 EZSmart App User Manual - BKL16, 2nd Ver. Introduction and Features: EZSmart-BKL16, is the most economical way to provide secure and convenient control of your deadbolt door lock. You can unlock the door by keypad's access codes; accessing to the App for App Unlock or simply touching *keypad's key to unlock (* App must running for authentication).
  • Page 2 App can identify indoor and outdoor areas. This will prevent accidentally unlock from "Touch unlock function". The BKL16 comes with advanced and easy to install ‘deadbolt lock replacement kits’ and powerful free ‘Mobile App’. In addition, you can assign a temporary authority for your guest to visit your house without giving them the real physical keys or secure 6 digits passcodes from keypad.
  • Page 3 QR Code face sharing). Each eKey will be deleted automatically from BKL16 system when it is expired. ◢Five sets of "6 digits keypad passcode", which does not have expiration dates. During EZSmart lock registration, lock device will generate these Unique-IDs for each lock.

  • Page 4: How To Set Up

    (Family / Guest / keypad passcode / Key Fob). How to setup: In order to avoid errors and abnormal behaviors of BKL16, please read this installation manual carefully before installing. Being familiar with all parts' name and settings steps will bring you a better user experience.
  • Page 5 The LED indicator will turn Orange for 10 seconds after installing (Note: If 4 batteries into the battery compartment of BKL16. the EZSmart lock has been paired before, the LED will be turned off. You can follow hardware-reset procedures to reset the device to factory default "000000"...
  • Page 6 (Demo Video Link: EZSmart lock Demo Videos) BKL16 Mobile App is available from both the Apple App Store and the Google Play Store. Simply download the App and register the ‘Owner Key’ with BKL16 Device to initiate the system. During the App installation, please accept (iOS App) ‘Access Location’...
  • Page 7 (Android’s device) allow. On Android device we can only test against major vendors. Full compatibilities and performance may vary on each device. Not all Android phone can provide background mode service. When Android phone has power management utilities, it may turn-off Bluetooth from the background.
  • Page 8 5. Register Owner Key to BKL16 System. Each EZSmart lock has “000000” as default factory’s passcode. Please use “000000” for the initial registration. After the initialization processes, the EZSmart lock will automatically generate New Unique-ID and 6-digits passcode. Please keep new passcode in safe place for future reset (Or take a screenshot and email to personal account) purpose.
  • Page 13 b> the following information provides a more detailed explanation how dose EZSmart lock works. ◢Press ‘+’ to add the Lock to the App. The App will auto scan available EZSmart locks in the vicinity. This may take up to 15 seconds to complete this task (the ‘>’...
  • Page 14 If you have done the “EZSmart soft reset / hardware reset”, Tip 1: you have to delete lock from App first for all known devices, and this will prevent previous devices try to pair with BKL16 by using the old encrypted eKey. This can lockup the system from Registration.
  • Page 15 2. Auto Lock period (Factory preset value is 30 seconds). You can only use Keypad to change this option. See Keypad unlock for more information. 3. "Touch Unlock" option and unlock distance slider for "Near / If you enable this option, EZSmart App has to run in the Far".
  • Page 16 Fig-6 ◢ Select ‘Lock’ option: To view all paired EZSmart locks (Fig-6) ◢ Select ‘Lock-icon’ option: To allow App to control selected Only in this selection, the App can do EZSmart lock (Fig-7). "Authentication". Fig-7 Searching Authenticated *Failed Authentication *Unknown Connection State Connected Connected...
  • Page 17 6. EZSmart Mobile App’s icon / symbols (Fig-7): ◢ Lock - Top-level Lock view. It shows available Locks and selection menu. Use ‘+’ to add a new lock. ◢Key - Top-level Key view, it shows available key status and selection menu. Use ‘Request Key’ to send the email to Owner or ‘Scan QR Code’...
  • Page 18 7. Owner Key functions: Lock-icon: The App only dedicates its effort to control selected lock. Do not swipe-off App from the background, if you want to Touch-Button Unlock feature without bringing smartphone and tap EZSmart App. To lock your door, tap the green symbol or Auto-Lock timer countdown is reached, your door will automatically lock.
  • Page 19 Scan QR Code method (prefer way to share your eKey): QR Code is popular and to use for smart phone equips with camera function. EZSmart App can generate QR Code to send eKey to new user’s smart phone with EZSmart App (Android and iOS). For security reason: This QR Code has only 5 Minutes Timer.
  • Page 20 From Owner EZSmart App:...
  • Page 21 Multi-Users Caution Note: In order to allow multi users coexisting with Bluetooth connection condition, only Owner’s smartphone will have Bluetooth connection all the time. All other users (family / guest) allow to instantly access Bluetooth connection from App the first time, after that the App will delay 15 seconds and yield to owner and other users to access the ADLock.
  • Page 22 From New User's EZSmart App: By Email Method: This method is designed for long distance ekey sharing condition. It is useful for temporary usages by...
  • Page 23 inviting the guest. New User (guest) has to initiate the request (provides unique smart phone “ID Code” to Owner) by email owner can use this “ID Code” from the email and generate the unique bonding code for this phone only and send the secure “Lock Key”...
  • Page 24 device to connect to New User's Bluetooth device for registration. If you have shared more than one ekey, make sure all phone is in Airplane mode or swipe-off the EZSmart App during registration new eKey. Caution Note 2: You are in control: With the Owner’s account and Mobile App, you can use the top right icon to revoke any key from the system.
  • Page 25 How to use ‘EZSmart Lock’ with Keypad 1. To unlock / Lock There are 4 different unlock methods: App Unlock / Enable Keypad Touch Button-Unlock / Keypad passcode Unlock / Physical Key Unlock. a> App Unlock Select of the “Lock-icon”: ◢RED color, means the door is locked state;...
  • Page 26 b> Unlock by touching Keypad's The EZSmart App and Keypad can provide touching unlock EZSmart App must run in the foreground or feature. The background (provide authentication to the EZSmart Lock) the distance between EZSmart lock and smartphone is less than 30 cm (12 inches) or control by "Far/Near"...
  • Page 27 seconds to wake up Bluetooth and complete Authentication from background mode. Not all phone can support background mode. Caution Note 2: You can remove the App from background to disable this function. c> Key Fob Unlock Once Key Fob has been registered with the EZSmart lock, you can press key button of Key Fob to unlock / lock.
  • Page 28 Fig - 12, Key Fob configuration and battery replacement: Before inserting the new battery, please make sure CR2032 battery "+" polarity symbol is facing up. d> Keypad "passcode" Unlock During EZSmart lock registration, lock device will generate these Unique-IDs for each lock. The App will read Keypad These passcodes are fixed and keep them in safe passcodes.
  • Page 29 The BKL16 has built in 10 digits keypad and backlight function. ◢Backlight function: touch any key to enable. For night time entering passcode assistant. ◢LED Indicator: RED - Lock State / GREEN - Unlock State.
  • Page 30 Enter Passcode Unlock: Example 1: Select the first set of passcode number: 174669 (total 7 digits). 1 174669 Example 2: Select the second set of passcode number: 043839 (total 7 digits). 2 043839 Important note1: It is important for testing each passcode before assign to any family members.
  • Page 31 and secure, but you have to protect them and do not pass them around. Note 2: EZSmart only allows 5 times passcode entry. When they failed, EZSmart's keypad will lock out for 10 minutes. You can unlock keypad by accessing the EZSmart App once. 2.
  • Page 32 2. Press Passcode "911519" 3. Press 4. Press "1" key 5. Press "00" keys 6. Press You will see EZSmart perform lock or unlock once to complete setting. Please test it again before using. Auto Lock Timer set to "60 seconds" example: (Hint: b>...
  • Page 33 3. Adding new EZSmart users: Sharing eKey by email New user of BKL16 must install EZSmart App and initiate the ‘Request Key’ by email. Owner can generate an encrypted key ID Code and email ‘Lock Key” back to the user. User will import ‘Share Key’...
  • Page 34 From New User's EZSmart App: Step 2: Owner imports "Key Request" from email and generates unique ID eKey code From Owner's EZSmart App:...
  • Page 35 Step 3: New user imports "eKey code" from email From New User's EZSmart App:...
  • Page 37 4. Key Fob’s registration (Note: set all smartphone in "Airplane mode" to avoid Bluetooth paring interference.) Option A: Stand Alone Key Fob registrations steps: Key Fob registrations steps: (Fig-12 and Fig -13) Fig-13 LED Indicator (Green / Red / Orange) Lock Turn-Piece ①...
  • Page 38 Release the Key Fob button at this time. EZSmart lock will provide a unique ID for the Key Fob to register with smart lock. ③ If Key Fob registration is successful within 30 seconds, the EZSmart Lock and Key Fob will have confirmation beep sound and turn off both LED.
  • Page 39 option. Fig-13b Step 2a: Allow EZSmart App to register (paring with lock from App). During this time App will go to sleep for 60 seconds, stop Bluetooth connection, Key Fob will use this time to do the paring process. Step 2b: Make sure Key Fob is on "OFF" position (Fig - 12).
  • Page 40 (about 3 seconds), Key Fob is ready to register with the EZSmart Lock. Step 2d: Continue to hold the button and an Orange LED comes up from EZSmart lock. The Key Fob’s LED will turn Orange (Fig-13b). You are in Registration mode now.
  • Page 41 5. Key Fob’s features: ①Add Key Fob to EZSmart lock, it will assigned Key# 11 -17 to the App. The App can rename / delete and show up on activities log. ② Key Fob (Key# 11- 17) activities log. ③ Key Fob beeping notifications means: Beeping Notification Function One long beeps within 2-3 seconds.
  • Page 42 App first and then go through the registration process to enable each key as described in previous steps. You have to delete the “Lock” from all user’s App Reminder: within 10 meter (30 feet) radius around BKL16 or turn-off...
  • Page 43 Bluetooth option. The App will prevent previous devices try to pair with BKL16 by using the old encrypted eKey. This can lockup the system from Registration. (1) Miscellaneous warning and error messages and solution If you have following warning and error messages, please follow the suggestion steps to resolve the issue.
  • Page 44 ① Unlock the door by using any eKey or use an emergency physical key; Remove the battery cover and batteries as well. Release three screws and detach the LED Light Ring cable from BKL16 device. The hardware’s Reset Button is on the back of the controller board (Fig-...
  • Page 45 R/L door switch Reset Button Fig-16 ② Install three batteries first, press and hold the Reset Button on one hand and install the fourth battery. You should see the Red LED come up and start flashing (Hardware Reset Mode). Release the Reset Button once you have entered the Hardware Reset Mode and press button again for 2 seconds to allow EZSmart lock to erase all Key records from the system.

  • Page 46: Appendix A: Using Keypad To Update (Replace App's Auto-Generate Keypad Passcode To Personal Preference Passcode Procedure: (For Firmware Version 0503Xxxx Or Higher)

    “Green” and “Red” each time, BKL16 is in normal mode. 3) Soft-Reset with Keypad's button Requirements and procedures (Without remove screws from Lock). ① Remove one battery from the Lock. ② Insert the battery back, within 1 second time period. You have Keypad's button "3 times"...
  • Page 47 If you do not like the Auto-generate Keypad passcode from the lock, you can use following steps to rename and replace existing passcode to your prefer passcode. Asume one of the keypad passcode from the App was "183636", you would like to change to: "123456". Example steps for renumber the first set of passcode: 1.
  • Page 48 6. Press "123456" keys to reconfirm the correct keycode. 7. Press key to complete. After pressing You will hear a long beeping sound from EZSmart lock to complete setting. Please test the new passcode again before using it. Appendix A: Advanced Automatic Unlock Once feature.
  • Page 49 unlock function). 2. Smartphone should enable Bluetooth / Wi-Fi / cell phone network communication functions. The App use GPS function to detect Geo Fence (safe zone) from Indoor and Outdoor setting procedures. 3. You have to walk away from the lock location at least 30 meters / 100 feet.
  • Page 54 Rev 1.13 (05/15/2018)
