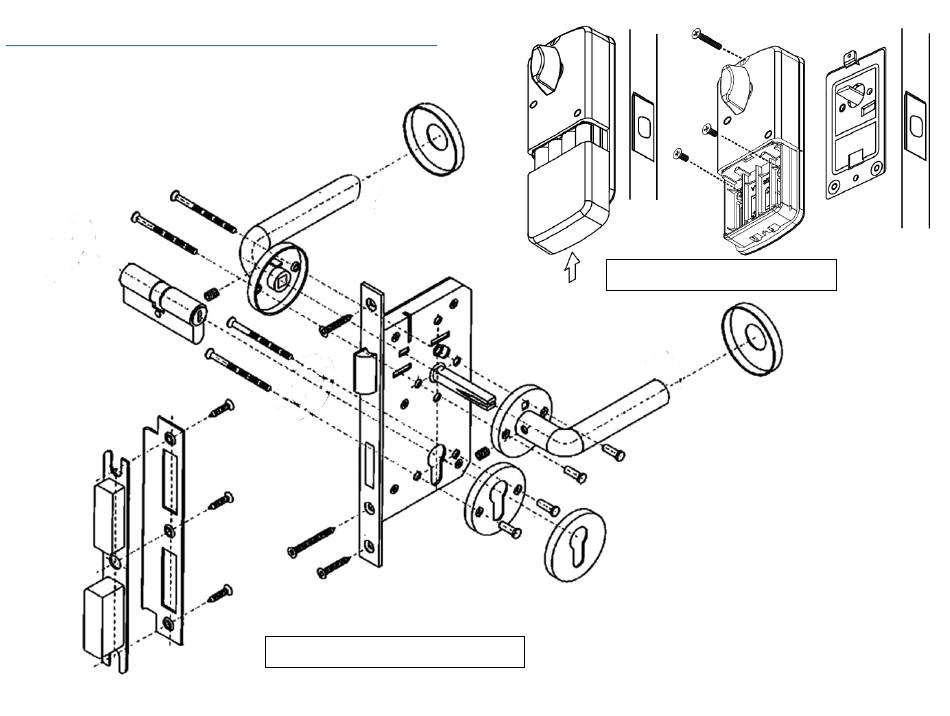

- Page 1 BML16 Hardware Installation Instructions: BLE Control Unit Assemble View BML16 Mortise Lock Assemble view...
- Page 2 0. Overview Configuration-A (From outside perspective) Spindle Lever Cover ○ Use Hex Wrench to tie the “Set Screw”. ○ Tip: Do not tie three mounting screws up the first time (50% tie). Please install Lever and make sure you can pull the “latch bolt”...
- Page 3 ○ : Cylinder lock assemble: Apply two “Hex Nut” into the Round Mounting Plate’s hole and press against “Cylinder Lock” from outside of the door. ○ You have to use Rectangular Mounting Plate (as shown on Configuration B) from inside of the door and line up holes by use long screws from Press fit “Cylinder Face”...
- Page 4 After you have tested the Lever handles and key unlock / lock function, you can use touch unlock to test Bluetooth Control Unit. BML16 has a built-in unlock button and it can provide pressing Touch-Button unlock feature from the indoor. You can press the “Touch Button” to unlock / lock the door at this moment.
- Page 5 0. Overview Figure-C (Main Lock Body dimensions) Dust Bucket Strike Plate Lock Body...
