Ardi BML16 Step-By-Step Hardware Installation

Hide thumbs Also See for BML16:

Advertisement

Quick Links

Download this manual

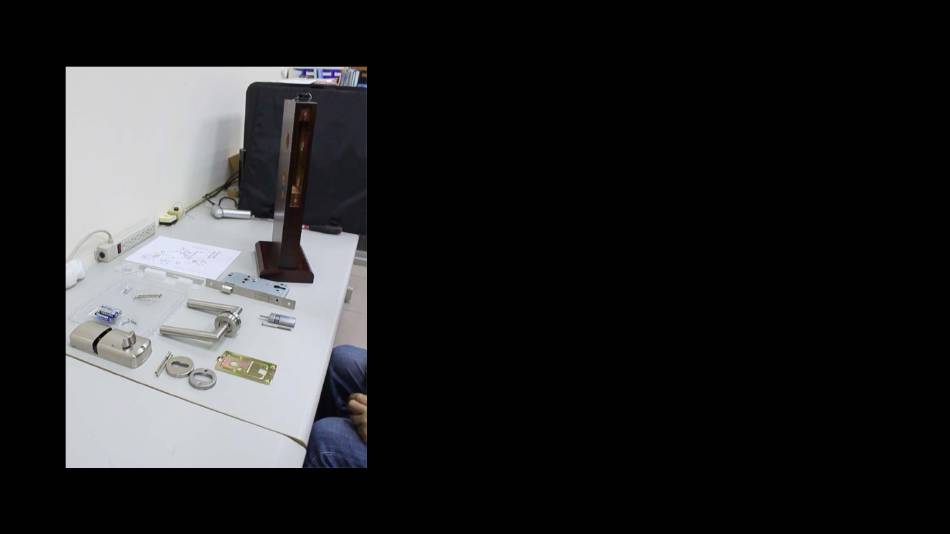

STEP 1:
- Make sure your "Door and Frame" have been prepared all cutout for
Mortise lock. (Craftsman and special tolls are required)
- Take out "BML16 Hardware Installation Instructions".
- Read the instruction and identify all essential components and parts.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BML16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ardi BML16

Summary of Contents for Ardi BML16

  • Page 1 STEP 1: - Make sure your “Door and Frame” have been prepared all cutout for Mortise lock. (Craftsman and special tolls are required) - Take out “BML16 Hardware Installation Instructions”. - Read the instruction and identify all essential components and parts.
  • Page 2 STEP 2: - Insert “Lock Body” into the door cutout.
  • Page 3 Alignment note: After all components and parts put together, We need to make sure the lever handles can retract / extend “Latch Bolt” and BLE control unit can “Deadbolt”. When BML16 is working properly, we will tighten all screws.
  • Page 4 STEP 4: - Open Cylinder Lock (Keys) box to locate the long screw for it.
  • Page 5 STEP 5: - Insert the “Cylinder Lock” into the “Lock Body”. Make sure the “Key Way” face outdoor and “Tailpiece” face indoor.
  • Page 6 STEP 6: - Insert the long screw through Lock Body and carefully align with “Cylinder Lock” to accept the long screw. Please use screwdriver to hold the Cylinder Lock in place. Do not use the power tool, we only need 90% tighten screw to hold the Cylinder Lock in fixed place.
  • Page 7 STEP 7: - Locate the “Cylinder Mounting Plate” and hex nuts with screws. - Hex nuts have to insert into Mounting Plate and catch the long screw for holding ”BLE control unit’s mounting plate” in place.
  • Page 8 STEP 8: - Depends on the door thickness, you may have to trim the “Cylinder Lock’s mounting screw”. Note: In the picture shows one of the screw has been trimmed. How much do you have to trim? You could inert original screws through “BLE control unit Mounting Plate”...
  • Page 9 STEP 9: (Secure the BLE Control Unit’s Mounting Plate) Note: Step 9 – Step 13 shows the procedure to secure mounting plate. Step 9 and Step 10 show work on indoor side. Step 11 and Step 12 show work on outdoor side. - Insert two screws through Mounting plate from indoor site and hold both screws (or one screw at the time, but do not tighten it).
  • Page 10 STEP 10: - From indoor side and insert two screws through lock body and make sure both screws can catch the hex nuts from the other side.
  • Page 11 STEP 11: - From outdoor side, insert hex nut through Cylinder Lock Mounting Plate.
  • Page 12 STEP 12: - From indoor side and push screw through Lock Body and carefully align screw to catch hex nut and manually tighten few threads. - You have to insert both hex nuts into the plate and manually tighten each nut. - After both hex nut catch screws, you can use the screwdriver to do 80% tighten.
  • Page 13 STEP 13: - Use the screwdriver to tighten 90% on both screws.
  • Page 14 STEP 14: - Locate the lever handles.
  • Page 15 STEP 15: - Insert “Spindle” through the Lock Body.
  • Page 16 STEP 16: - Apply lever handles to both side of the door.
  • Page 17 STEP 17: - Locate mounting screws for lever handle.
  • Page 18 STEP 18: - Insert hex nut into lever handle from outdoor side. - Because screw has go through Lock Body, you can only use hole patterns match those two holes. - You have to push screw through from indoor side and catch by this hex nut.
  • Page 19 STEP 19: - Push screw through the indoor side of the lever hole and Lock Body hole to reach outside hex nut.
  • Page 20 STEP 20: (Screw #1) - From indoor side and push screw through Lock Body and carefully align screw to catch hex nut and manually tighten few threads. - You have to insert both hex nuts into the plate and manually tighten each nut.
  • Page 21 STEP 21: (Screw #2, behind the handle from outdoor side) - From outdoor side and insert hex nut into the lever handle’s mounting hole first.
  • Page 22 STEP 22: (Screw #2, behind the handle from indoor side) - From indoor side and push screw through Lock Body and carefully align screw to catch hex nut and manually tighten few threads. - You have to insert both hex nuts into the plate and manually tighten each nut.
  • Page 23 STEP 23: - After both hex nut catch screws, you can use the screwdriver to do 80% tighten.
  • Page 24 STEP 24: - Check the lever handles function: Make sure you can turn hands to retract / extend “Latch Bolt”. - If “Latch Bolt” can not travel, you can loosen (2) screws from Lock Body and align (by pushing up or down) against door frame and check it again.
  • Page 25 STEP 25: (Loosen top screw for alignment processes) - After loosen two screws, you push Lock Body up or down to calibrate “Latch Bolt” function.
  • Page 26 STEP 26: (Loosen Bottom screw for alignment processes) - After loosen two screws, you can push Lock Body up or down to calibrate “Latch Bolt” function.
  • Page 27 STEP 27: (BLE Control Unit installation preparation) - Make sure the Mounting Plate is correctly installed. - Check the Cylinder Lock’s Tailpiece is in the center of mounting hole. You can loosen two mounting screws and carefully adjust the mounting plate position. Note: Try manually turn “Tailpiece”...
  • Page 28 STEP 28: (BLE Control Unit installation preparation) - Insert batteries into battery holder.
  • Page 29 STEP 29: (BLE Control Unit installation preparation) - Make sure you select correct Left or Right hand door setting. Note: This setting will show on LED for Lock (Red) / Unlock (Green). The App will use this setting for Auto Lock option. If you set it the wrong direction, it will do Auto-Unlock instead.
  • Page 30 STEP 30: (BLE Control Unit installation preparation) - Follow Step 29 instruction and insert “Tailpiece” into BLE CU.
  • Page 31 STEP 31: (BLE Control Unit installation preparation) - Insert long screw into top mounting hole and tighten it. - During the initial testing, you can use at least one screw to hold the BLE CU in place.
  • Page 32 STEP 32: (BLE Control Unit and Mortise Lock Testing) - Try manually turn the “Turn-piece” to Lock / Unlock few times. If you have difficulty to do this, please remove BLE CU and loosen screws and adjust mounting plate position. - After testing manual control function.
  • Page 33 STEP 33: (BLE CU final assemble) - After BLE CU testing, you can tighten all mounting screws.
  • Page 34 STEP 34: (BLE CU final assemble) - Re-attach BLE CU back to original position.
  • Page 35 STEP 35: (BLE CU final assemble) - Insert long screw to the top mounting hole and tighten it.
  • Page 36 STEP 36: (BLE CU final assemble) - Insert two short screws into battery holder and tighten them. - Right side of screw.
  • Page 37 STEP 37: (BLE CU final assemble) - Insert two short screws into battery holder and tighten them. - Left side of screw.
  • Page 38 STEP 38: (BLE CU final assemble) - Insert batteries into battery holder. - Please observe the correct polarity of the batteries.
  • Page 39 STEP 39: (BLE CU final assemble) - Use the indoor “Push-Button” to test Lock / Unlock function again.
  • Page 40 STEP 40: (Final assemble) - Form outdoor and insert the Cylinder Face Plate and push into the final position.
  • Page 41 STEP 41: (Final assemble) - From outdoor and insert the Lever Cover and push into the final position.
  • Page 42 STEP 42: (Final assemble) - Form indoor and insert the Lever Cover and push into the final position.
  • Page 43 STEP 43: (Final assemble) - Insert the battery cover.
  • Page 44 STEP 44: (Final assemble) - Use “Hex Wrench” comes with the package and tighten Lever handles set screws.
  • Page 45 STEP 45: (Finish testing) - Use the indoor “Push-Button” to test Lock / Unlock function.
