CityGrow CG500MS User Manual

CityGrow CG500MS User Manual

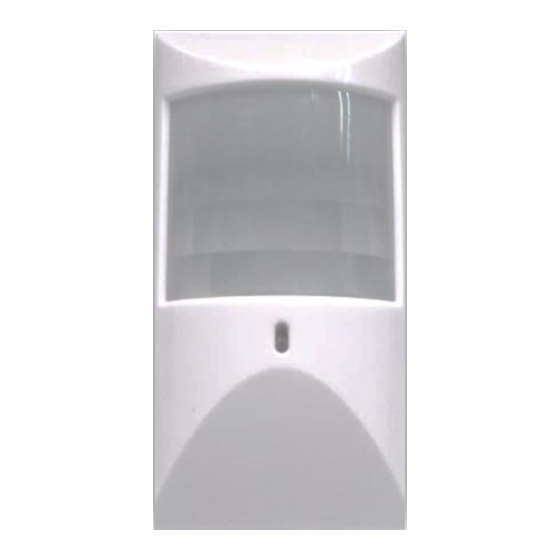

Zigbee motion sensor
Hide thumbs Also See for CG500MS:

Advertisement

Quick Links

CG500MS
Z
B
M
S
IG
EE
OTION
U
M
SER
ANUAL
V
1.2
ERSION
24 F
, 2020
EBRUARY
Disclaimers and Copyright
Nothing contained in this publication is to be construed as granting any right, by implication or otherwise, for the
manufacture, sale, or use in connection with any method, apparatus, or product covered by letters patent, or as
insuring anyone against liability for infringement of letters patent.
Efforts have been made to ensure the accuracy and reliability of the data contained in this publication; however,
CityGrow Energy Systems Limited makes no representation, warranty, or guarantee in connection with this publication
and hereby expressly disclaims any liability or responsibility for loss or damage resulting from its use or from the use
of any product or methodology described herein; for any violation of any federal, state, or municipal regulation with
which this publication may conflict; or for the infringement of any patent from the use of this publication. Nothing
contained in this publication should be viewed as an endorsement by CityGrow Energy Systems Limited of any particular
manufacturer's products.
ENSOR
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG500MS and is the answer not in the manual?

Questions and answers

Summary of Contents for CityGrow CG500MS

  • Page 1 Nothing contained in this publication should be viewed as an endorsement by CityGrow Energy Systems Limited of any particular manufacturer’s products.
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3: Table Of Contents

    Understanding the product ................2 Dimension ....................3 Installation ....................4 Application Notes ..................7 5.1. Connect the CG500MS with external power supply ........ 7 5.2. Dry contact output and intelligent PIR sensing........9 5.3. Tamper switch ................. 10...
  • Page 4: Introduction

    1. Introduction Thank you for choosing CityGrow’s product. CG500MS ZigBee Motion Sensor is highly- functional, user-friendly and installation-friendly. The CG500MS is specially designed for CityGrow home automation system, benenift to energy saving and security purpose. Description ZigBee wireless remote control.
  • Page 5: Understanding The Product

    2. Understanding the product...
  • Page 6: Dimension

    3. Dimension...
  • Page 7: Installation

    Step 3: Connect the CG101UT5 and CG101UTC cables to a PC which installed with CityGrow’s HomeNET Planner 2 Software. The CG500MS Wireless Motion Sensor will be powered by the connected PC via the cables, no battery is required in this procedure.
  • Page 8 The LED indicator will be brightened up for 2 seconds, if a motion is detected, the LED indicator will be brightened up for 2 seconds again. Step 6: Mount the CG500MS at a desired location. The following diagram will show a typical example.
  • Page 9 Step 6.3: Insert the CG500MS sensor into the wall mount hanger. 2.2M typical installation Step 7: Make a movement and test if the CG500MS sensor is operating normally. If a motion is detected, the LED with be brightened up for 2 seconds.
  • Page 10: Application Notes

    5. Application Notes 5.1. Connect the CG500MS with external power supply Connect the CG500MS with external power supply CG101AD Mini Power Supply. 5.1a. Connect the main power cable from the wall box to the Live and Neutral wires of the CG101AD Mini Power Supply (purchase separately).
  • Page 11 Route the cable DC6V output from CG101AD 5.1c. Locate the wire connectors inside the recess area of the battery compartment and address the cable before closing the battery cover. Route the wires Wire connectors...
  • Page 12: Dry Contact Output And Intelligent Pir Sensing

    5.2. Dry contact output and intelligent PIR sensing. When CG500MS sensors detects any movement, it will send wireless signal to CityGrow’s home automation system to trigger a scene, which may include lighting, curtain, audiovisual equipment and air-conditioner. Dry contact output will also be triggered.
  • Page 13: Tamper Switch

    When the front cover is removed, the tamper switch will be activated. The dry contact output will be triggered to “always-high” level. The main unit will also send wireless signal to CityGrow’s home automation system. The corresponding action of CityGrow’s home automation can be preset in HomeNET Planner 2 Software. (Please refer to HomeNET...
  • Page 14: Specification

    6. Specification Item Specification Power supply AAA alkaline battery x 3 pcs Alternative external DC6V input (Powered by CG101AD, Mini Power Supply) Communication ZigBee wireless remote control. Based on IEEE 802.15.4. standard 2.4GHz radio frequency RF communication distance 100M (open area) Up to 5m radius at 25 °C at 2.2m height PIR detection Up to 7m radius at 25 °C at 5m height...
