ERGONOMIC SOLUTIONS RAM-SWM01 Installation Instructions

Slatwall hutch monitor mount

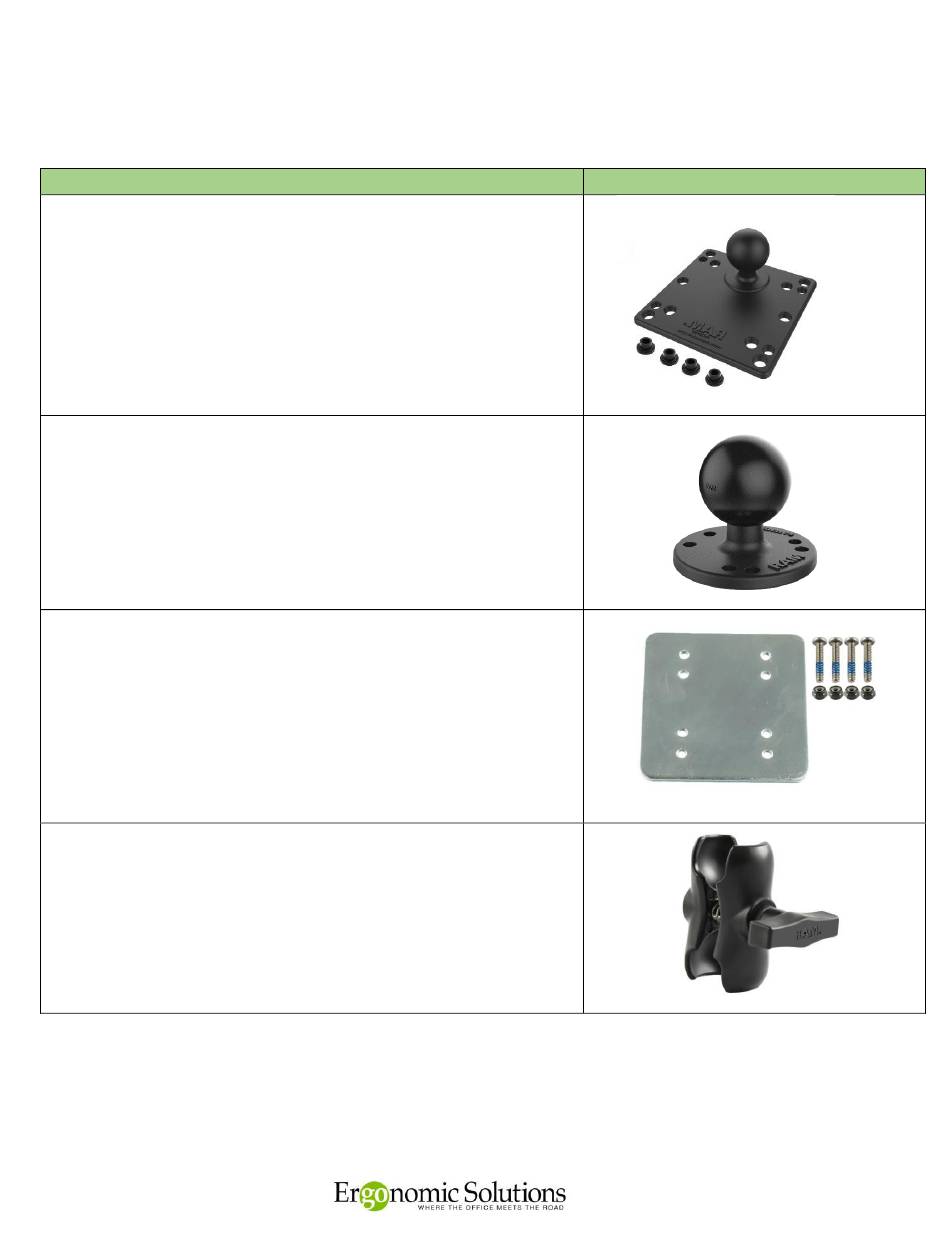

Parts Included

VESA base 100 & 75 Hole (RAM-246U) with 4 Shoulder

Washers

2 ½" Diameter Base (RAM-202U)

Backing Plate Adapter (RAM-202-225BU)

Hardware included:

(1) 3" x 3" steel backer plate

(4) 10-24 x 1" pan head, Phillips drive screws

(not used, substitute with 10-24 x 1 ¼"screws)

(4) 10-24 black zinc plated nylock nuts

(1) Double Socket Arm (RAM-201U-B)

505 E. Hawley Street, Suite 210, Mundelein, Illinois 60060 (847)566-4950

Slatwall Hutch Monitor Mount (RAM-SWM01)

Installation Instructions

Table of Contents

Do you have a question about the RAM-SWM01 and is the answer not in the manual?

Page 1 Slatwall Hutch Monitor Mount (RAM-SWM01) Installation Instructions Parts Included VESA base 100 & 75 Hole (RAM-246U) with 4 Shoulder Washers 2 ½” Diameter Base (RAM-202U) Backing Plate Adapter (RAM-202-225BU) Hardware included: (1) 3” x 3” steel backer plate (4) 10-24 x 1” pan head, Phillips drive screws (not used, substitute with 10-24 x 1 ¼“screws)
Page 2 Parts You Need to Purchase You will need to purchase the screws listed below to attach the Monitor Mount to the Slatwall Hutch. • 10-24 x 1 ¼ pan head Phillips screw (Qty 4) You may also need to purchase longer screws to attach your monitor to the VESA base. Most monitors will need at least a 16mm long M4-0.7 pan head Phillips screw (Qty 4).
Page 3 3. Attach the 2 ½” diameter base to the double socket arm. 4. Remove the monitor from its stand and unscrew the mounting plate from the back. 5. Position the shoulder washers in the appropriate holes in the VESA base and then attach the base to your monitor using either the M4-0.7 pan head Phillips screws (purchased separately) or the ones that came with your monitor (if they are long enough).
