SPECIFICATIONS
GENERAL
- Flip Down Detachable Face Panel
- "Ultra Mem ory" To retain preset settings
after battery is disconnected
- LCD Display
- Illuminated Controls (W hite)
- Tele Mute
- Upgrade Firmware via USB
- ISO DIN Mounting
- ISO W iring Harness
- Dimensions:
(Chassis)
178W x 50H x 158D mm
(Front Panel) 188W x 58H x 20D mm
- 2 Ch RCA Line Out
- 2 Ch RCA Input (Rear)
- Video Out
- Speaker Impedance 4-8 Ohm
- 12/24 Volt DC (10.8-32V) Negative Ground
- Ma x Power 40 W atts x 4 Ch
AUDIO CONTROL
- Rotary Encoder
- 4 Band DSP Settings
- Electronic Volume / Balance / Bass / Treble
- Loud / Mute
Due to improvements in technology and design, specifications are subject to change without notice.
Made in China

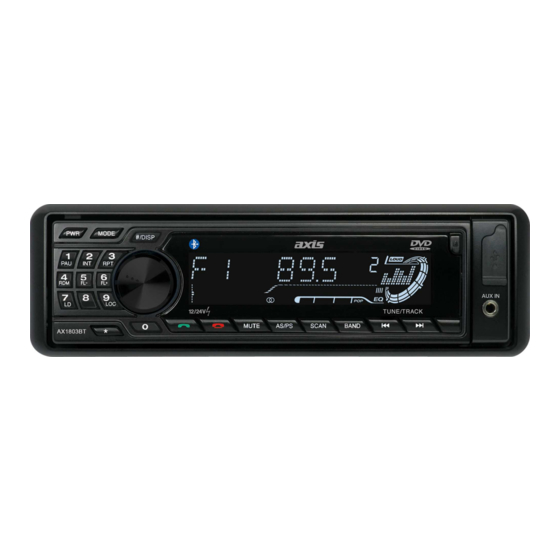

AX1803BT
BLUETOOTH 12/24V
DVD/CD MULTIMEDIA PLAYER
TUNER
- PLL Synthesized AM/FM Stereo
- Xtrem e Long Range Tuner
- FM 87.5~108 MHz; AM 522~1710 KHz
- Interference Absorption Circuit
- 30 Station Presets - 18 FM/12 AM Memory
- Station Seek / Preset Scan / Auto Store
- Local / Distant Control
- Automatic or Manual Tuning
- Mono / Stereo
- Digital Clock
MULTIMEDIA
- USB Input: Front Panel
- AUX-IN: Front (3.5mm)
- AUX-IN: Rear (RCA)
DVD PLAYER
- Supports DVD/CD/CD-R/RW /MP3/W MA
- Electronic Shock Protection
- Intro/Repeat/Random Play/Track Up-Down
- Select Folder/Track/File Search
BLUETOOTH
- Bluetooth in Phone Mode
- External Microphone
- Phone History
- Keypad in Face Panel
- Audio Streaming (A2DP)
- 10 Call History Memory
INCLUDED
- External Microphone
- Remote
- ISO W iring Harness
- Installation Hardware
1 Year Warranty
AX1803BT
Advertisement
Table of Contents
Related Manuals for Axis Car Audio AX1803BT
Summary of Contents for Axis Car Audio AX1803BT

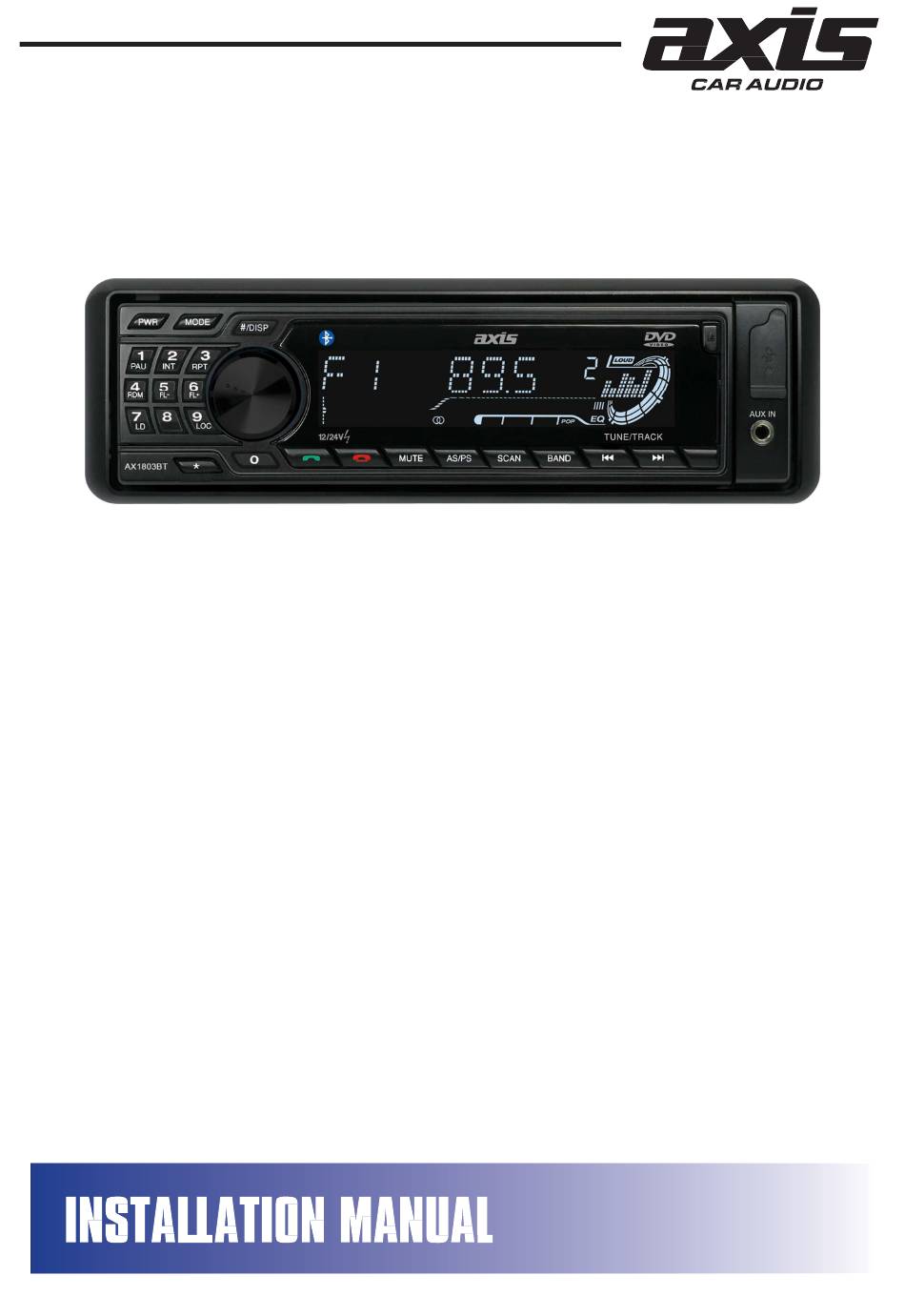

- Page 1 AX1803BT BLUETOOTH 12/24V DVD/CD MULTIMEDIA PLAYER SPECIFICATIONS BLUETOOTH GENERAL TUNER - Bluetooth in Phone Mode - Flip Down Detachable Face Panel - PLL Synthesized AM/FM Stereo - External Microphone - Xtrem e Long Range Tuner - “Ultra Mem ory” To retain preset settings...
-
