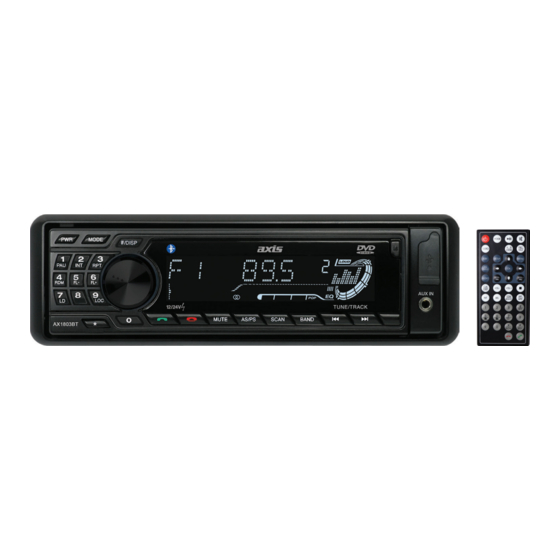

AX1803BT
BLUETOOTH 12/24V DVD/CD
MULTIMEDIA PLAYER
SPECIFICATIONS
GENERAL
- Flip Down Detachable Face Panel
- "Ultra Memory" To retain preset settings
after battery is disconnected
- LCD Display
- Illuminated Controls (White)
- Tele Mute
- Digital Clock
- Upgrade Firmware via USB
- ISO DIN Mounting
- ISO Wiring Harness
- Dimensions:
(Chassis)
178W x 50H x 158D mm
(Front Panel) 188W x 58H x 20D mm
- 2 Ch RCA Line Out
- 2 Ch RCA Input (Rear)
- Video Out
- Speaker Impedance 4-8 Ohm
- 12/24 Volt DC (10.8-32V) Negative Ground
- Fuse: 7.5A
- Max Power 40 Watts x 4 Ch
AUDIO CONTROL
- Rotary Encoder
- 4 Band DSP Settings
- Electronic Volume / Balance / Bass / Treble
- Loud / Mute
INSTRUCTION MANUAL
TUNER
- PLL Synthesized AM/FM Stereo
- Xtreme Long Range Tuner
- FM 87.5~108 MHz; AM 522~1710 KHz
- Interference Absorption Circuit
- 30 Station Presets - 18 FM/12 AM Memory
- Station Seek / Preset Scan / Auto Store
- Local / Distant Control
- Automatic or Manual Tuning
- Mono / Stereo
MULTIMEDIA
- USB Input: Front Panel
- AUX-IN: Front (3.5mm)
- AUX-IN: Rear (RCA)
DVD PLAYER
- Supports DVD/CD/CD-R/RW/MP3/WMA
- Electronic Shock Protection
- Intro/Repeat/Random Play/Track Up-Down
- Select Folder/Track/File Search
BLUETOOTH
- Bluetooth in Phone Mode
- External Microphone
- Phone History
- Keypad in Face Panel
- Audio Streaming (A2DP)
- 10 Call History Memory
INCLUDED
- External Microphone
- Remote
- ISO Wiring Harness
- Installation Hardware
Advertisement
Table of Contents
Related Manuals for Axis Car Audio AX1803BT
Summary of Contents for Axis Car Audio AX1803BT
-
Page 1: Specifications
AX1803BT BLUETOOTH 12/24V DVD/CD MULTIMEDIA PLAYER SPECIFICATIONS BLUETOOTH GENERAL TUNER - Bluetooth in Phone Mode - Flip Down Detachable Face Panel - PLL Synthesized AM/FM Stereo - External Microphone - “Ultra Memory” To retain preset settings - Xtreme Long Range Tuner... -
Page 2: Before You Begin
BEFORE YOU BEGIN FEATURES: DVD video playback Video CDs featuring PBC compatibility CD playback PAL/NTSC compatibility Multi-aspect Multi-audio Multi-subtitle When an operation is prohibited... -
Page 3: Installation
INSTALLATION PRECAUTIONS NOTE: 182mm 53mm NOTE: Detaching and attaching the front panel FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL Notes: CLEANING THE CONNECTOR Main unit button and clean the Cotton Swab... -
Page 4: To Support The Unit
TO SUPPORT THE UNIT WIRE CONNECTION CONNECT TO EXTERNAL MICROPHONE BLUETOOTH TEL MUTE ANTENNA VIDEO OUT ISO CONNECTOR 1 3 5 7 LINE OUT ANTENNA 2 4 6 8 CONNECTOR L(WHITE) R(RED) LINE IN L(WHITE) R(RED) FUSE 7.5A ISO A/B PLUG BLUE BLACK POWER... - Page 5 Locations of Parts (Main unit) (1, 2...0, , #) 22 4 1 20 MODE /DISP TUNE/TRACK MUTE AS/PS SCAN BAND AX1803BT 12 13 RESET...
- Page 6 Locations of Parts (Remote Control) Use and care of the remote control Installing the battery CAUTIONS Using the remote control IMPORTANT...
-
Page 7: Listening To Radio
GENERAL OPERATIONS Turning the unit ON/OFF (PWR) Selecting a source (MODE) MODE AD2P Loading a Disc Ejecting a Disc Adjusting Volume VOL+ or VOL- Mute Button MUTE Loud Button (LD) Equalizer (EQ) Flat – Classical – Rock – Pop CLOCK DISP How to Set Clock DISP... -
Page 8: Listening To Cd/Mp3/Wma
OPERATIONS COMMON FOR CD/MP3/VCD/DVD/MP4 Folder Down / Up FL-/FL+ Note: Disc / media sources must contain folder name for this function to work. Specifying particular track Tips: To select track 3, press 3. To select 13, press and hold 10+ follow by 3. To select 23, press and hold 10+ (2 times) follow by 3. - Page 9 PLAYING DVD/VIDEO CD/MP4 Playback MODE CAUTION: Auto SETUP “SETTING UP THE DVD PLAYER” DVD menu Enter Video CD menu Enter Turning PBC ON/OFF (VCD only) Note: Not all VCD/SVCD disc have PBC functions. Repeat Playback FOR VCD Repeat 1 Repeat All Repeat Off Note: FOR DVD...
-
Page 10: Troubleshooting Guide
Slow motion playback Slow Note: Zooming in During Playback ZOOM Frame-by-frame playback Step PAL / NTSC (P/N) HOW TO USE BLUETOOTH IN YOUR CAR AUDIO How to Perform Pairing “CAR BT” “0000” Note: “CAR BT” is the Bluetooth device name of the car stereo. Audio Streaming Making Calls Important: Before you make calls, make sure that the devices are properly paired and connected. -
Page 11: Setting The Dvd Player
CUSTOMIZING AUDIO SETTINGS SETTING THE DVD PLAYER Important: Setup Settings Category Options Auto Play TV Type Video Setup Saturation Setting Rating Password Setup System Setup > Password Enter ‘0000’ Enter Enter Note: The default password is ‘0000’. In case password , use the master ‘0000’... - Page 12 AX1803BT...
