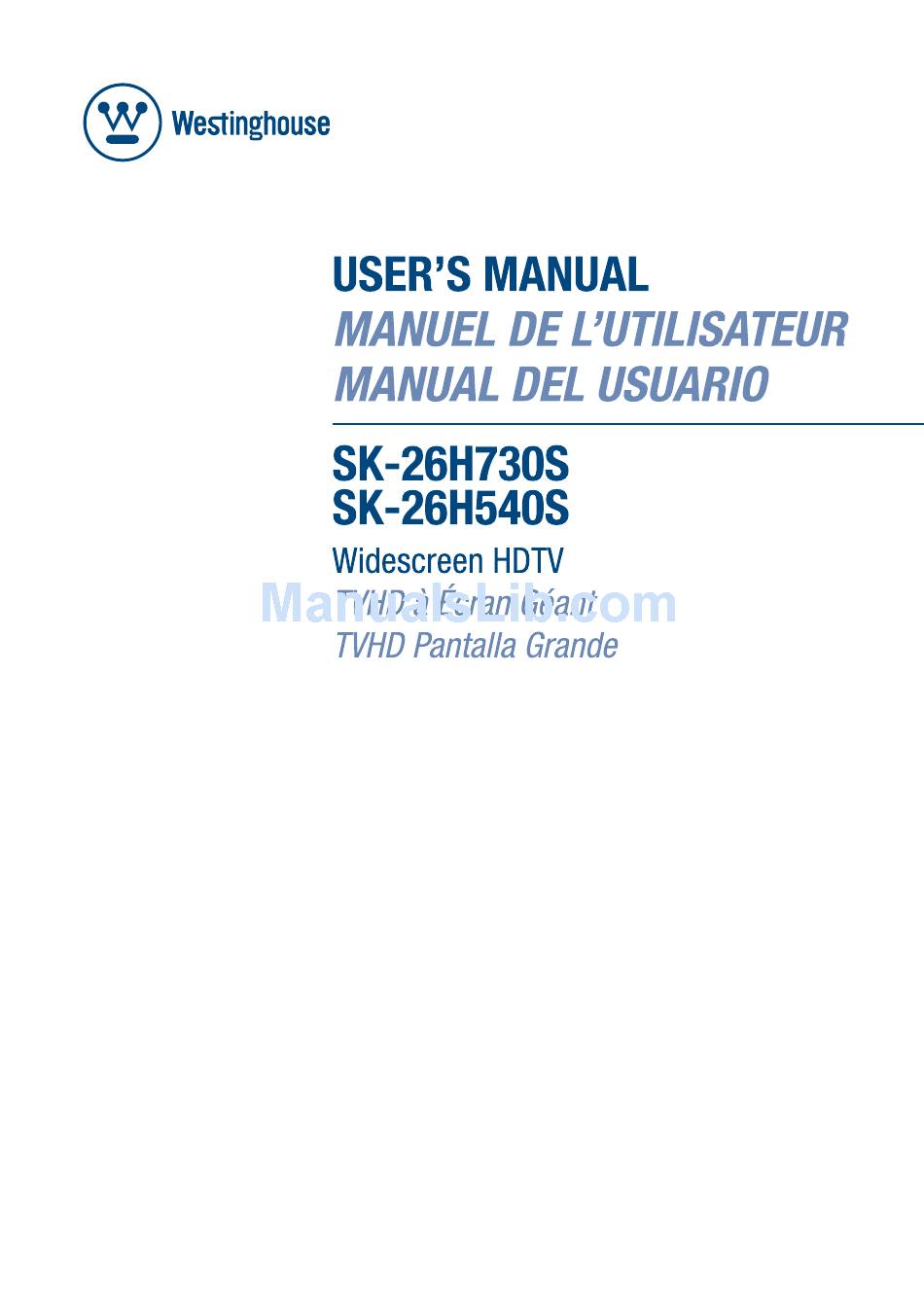

Westinghouse SK-26H540S User Manual

Westinghouse SK-26H540S User Manual

Widescreen hdtv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK-26H540S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westinghouse SK-26H540S

Summary of Contents for Westinghouse SK-26H540S

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY AND PRECAUTIONS ...1 Important Information...1 Safety Precautions...2 GENERAL INFORMATION...4 Feature...4 Controls and Ports of the Panel...5 Accessories ...9 Remote Control...10 INSTALLATION AND FUNCTION ADJUSTMENT ...12 Installation...12 How to remove the BASE...15 Function adjustment ...16 TROUBLESHOOTING ...34 PC INPUT PRESET TIMMING TABLE...37 PRODUCT SPECIFICATION ...39...

  • Page 4: Important Safety And Precautions

    IMPORTANT SAFETY AND PRECAUTIONS This wide active matrix TFT (thin film transistor) liquid crystal monitor is designed for use as a stand alone TV as well as a display device for video electronics appliances and personal computers. Important Information Warning : To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

  • Page 5: Safety Precautions

    Safety Precautions 1. Cleaning : Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. 2. Water and moisture : Do not use the product near water or areas of high moisture content such as swimming pools, bathtubs or wet basements.
  • Page 6 7. Stand : Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product.

  • Page 7: General Information

    GENERAL INFORMATION Feature Your TV is designed with the latest technology and is a high-performance unit that includes the following special feature : Multi-sources input included RF IN, D-SUB, HDMIx2, Compositex2, S-Videox2, and Componentx2. Built-in combo tuner is able to receive ATSC, NTSC and Clear QAM Cable signals. Built-in 10W dual channel speakers.

  • Page 8: Controls And Ports Of The Panel

    Controls and Ports of the Panel Remote sensor window & Power indicator FUNCTION KEYS 1. MENU : Display the main menu. When OSD is appeared, press the button to select or access the sub-menu. 2. VOLUME (+ / -) : Increase/decrease the volume or be the left/right arrow button for menu.

  • Page 9: Function Keys

    Remote sensor window & Power indicator FUNCTION KEYS 1. MENU : Display the main menu. When OSD is appeared, press the button to select or access the sub-menu. 2. VOLUME (+ / -) : Increase/decrease the volume or be the left/right arrow button for menu.
  • Page 10 ANT.(RF input) Connect the LCD TV to an over-the-air antenna or cable service to view NTSC and ATSC(HDTV) content. 2. YPbPr input Connect an external video device with component output to this jack. 3. YPbPr Audio input(L/R) Connect an external audio source to this jack. 4.
  • Page 11 ANT.(RF input) Connect the LCD TV to an over-the-air antenna or cable service to view NTSC and ATSC(HDTV) content. 2. YPbPr input Connect an external video device with component output to this jack. 3. YPbPr Audio input(L/R) Connect an external audio source to this jack. 4.

  • Page 12: Accessories

    Accessories LCD - TV User’s Manual Remote Control & Batteries Quick connect Power Cord Quick Connect Guide Warranty Card Warranty Card Screw driver & Screws x4(base)

  • Page 13: Remote Control

    Remote Control Power Switch TV power on/off. Mute Turn the sound on/off. Swap No support No support Backlight Adjust the LCD Backlight level Sleep Press to select a preset time interval for automatic power down. Press to enable or disabled closed caption. Favorite Press and hold programable Key(A, B, or C).
  • Page 14 Guide Broadcast program information. Info. Display the source and channel information. YPbPr1 Select YPbPr1 or 2 source input. Select TV(NTSC/ATSC) source input. Select VGA source input. HDMI Select HDMI 1 or 2source input. YPbPr2 No support No support. Video Select Video 1 or 2 input. S-Video No support Dot button...

  • Page 15: Installation And Function Adjustment

    INSTALLATION AND FUNCTION ADJUSTMENT Installation 1. Insert Batteries into Remote Control 1) Remove the battery cover. 2) Insert two size AAA batteries corresponding to (+) and (-) marks on the battery compartment. CAUTION Only use AAA batteries. Do not mix new and old batteries. This may result in cracking or leakage, which may pose a fire risk or lead to personal injury.
  • Page 16 2. Connections...
  • Page 17 3. Connect power cables Connect the power cord to the LCD TV then to a proper AC outlet. IMPORTANT: The power input voltage for TV is 120Vac, before beginning; make sure all devices are turned off. 4. Turn Power On Press the power button on the right side of the LCD TV, or press the power (Red) button on the remote control.

  • Page 18: How To Remove The Base

    How to remove the BASE a. Carefully place the TV face down on a soft clean surface. b. Remove the four screws underneath the BASE. (See picture below) c. Pull out the BASE from the TV. SK-26H540S SK-26H730S...

  • Page 19: Function Adjustment

    Function adjustment There are four main Setup Menus; these are Settings, Channels, Locks and Guide. All the functions can be adjusted either by the remote control or by using the control keys on the LCD TV’s right side. Viewing OSD Menu To display the main menu, press the Menu button on the right side of front control keys of the LCD TV or the MENU key on the remote control.
  • Page 20 Brightness, Contrast, Hue, Saturation, Sharpness, Backlight Press arrow keys to set value. View Mode Adjust your TV screen to handle different picture formats. Standard/Fill/Overscan...
  • Page 21 Presets There are five presets mode for your favorite: Showroom, Game, Sports, Movie, and Custom. Advanced Advanced including Film Mode, Dynamic Contrast, Color Stretch, Noise Reduction, and Color Temperature. Film Mode, Dynamic Contrast, Color Stretch Choose ON or OFF depend on your favor.
  • Page 22 Noise Reduction Press arrow keys to select or adjust your preferred settings. Off/Low/Medi/High Color Temperature Press arrow keys to select or adjust your preferred color temperature settings. Cool/Neutral/Warm/Custom Audio Setting...

  • Page 23: Bass, Treble, Balance

    Bass, Treble, Balance Use arrow keys to adjust value. Analog Audio Select an analog audio preference if TV signal is analog. Mono/Stereo/SAP Digital Audio Select sound track for digital channels.
  • Page 24 SPDIF Select AC3/PCM Level Set, TV Speaker Select ON/OFF...

  • Page 25: Channel List

    Channels Channel list To display which channels have been scanned.
  • Page 26 Antenna Scan To auto scan current available channels by using Antenna Scan. Cable Scan To auto scan current available channels by using cable Scan.
  • Page 27 Settings Close Captions Set CC ON/OFF...
  • Page 28 Basic Selection Choose the type of closed caption settings to use for programs broadcast with basic caption Advanced Selection Choose the type of Advanced closed caption...
  • Page 29 Advanced Appearance Set the appearance of advanced Closed Captions. Caption Preference Select Always Basic/Always Advanced/Automatic.
  • Page 30 Sleep Timer Set the sleep timer you want. PC/VGA...
  • Page 31 Horizontal, Vertical Use arrow keys to adjust your picture horizontal or vertical position. Phase You can use Phase to adjust your picture phase. AutoSync Use to auto adjust your VGA picture.
  • Page 32 DPMS Set DPMS ON/OFF. Menu Language Use arrow keys to adjust Menu Language Date & Time Set Date & Time.

  • Page 33: Power Mode

    Power Mode Set TV power modes (Normal = quick boot-up time, but large power consumption; Energy saving = longer boot-up time, but small power consumption.) Autosource™ Autosource™ will detect a new incoming signal and automatically switch the input source to the connection of the new source’s device.

  • Page 34: Reset All

    Custom Label Choose the custom source Label FW Version You can see what Software version your TV has. RESET ALL Reset all settings back to factory defaults. Reset will delete all settings you have made including channel list.

  • Page 35: Rating Locks

    Locks Lock feature prevents viewers from watching programs that are not age-appropriate, such as programs containing violence or adult language. The pin number is required when you want to enter Locks menu, just use the remote control to key in your pin number. The factory default pin number is 0000. Rating Locks Select what you want to set.
  • Page 36 Canada-French General programming, suitable for all audience 8 ans+ Children eight years and older 13 ans+ Viewers 13 year and older 16 ans+ Viewers 16 year and older 18 ans+ Adult programming Canada-English Children Children eight years and older General programming, suitable for all audience Parental guidance Viewers 14 year and older...

  • Page 37: Troubleshooting

    TROUBLESHOOTING There is no picture or sound. There is no picture from AV. There is no sound. There is no picture or sound, just noise. Picture is not clear. Make sure the AC adapter is connected. Verify that there is a valid source signal. Make sure the correct input mode is selected.
  • Page 38 Picture is light or improperly tinted. Check the Hue, Saturation and Color adjustments. Reset the TV to the factory default settings. The picture is too dark. Select a different Video Preset mode. Check the Brightness of Picture Settings. The fluorescent lamp may have reached the end of its life. Contact an authorized service center.
  • Page 39 The picture is not sharp. The picture moves. The picture is doubled or tripled. The picture is spotted. The signal source may be weak. The provider may be experiencing difficulties. Check input connections. Check the Sharpness of Picture Settings. The source signal may be weak. The provider may be experiencing difficulties.

  • Page 40: Pc Input Preset Timming Table

    PC INPUT PRESET TIMMING TABLE PC / Timing Table No. Mode Name H.Freq. H. Polarity Pixel Resolution V.Fre. V. Polarity (MHz) VGA 70HZ 31.469 28.322 720*400 70.087 VGA 60HZ 31.469 25.175 640*480 59.941 VGA 67HZ 35.00 30.24 640*480 66.667 VGA 72HZ 37.861 31.5 640*480...
  • Page 41 No. Mode Name H.Freq. H. Polarity Resolution V.Fre. V. Polarity 60Hz 47.712 1360*768 60.015 60Hz 48.96 1366*768 60.0 * The resolution and the frequencies are displayed on the screen may not exactly same as this list. Pixel Hor. Hor. Hor. Bck Total Display Porch...

  • Page 42: Product Specification

    3D Comb-filter , 3D De-interlace , Aspect Ratio Control (ARC) , Auto Picture Control, Noise Reduction Sleep Timer, Timer On, Timer Off AC 100V ~ 240V , 50 / 60Hz (SK-26H540S) AC 120V , 50 / 60Hz (SK-26H730S) < 200 W For use only UL Listed Wall mount Bracket or F4030 Wall Mount Bracket.
