HORNER XLT OCS Series Specifications And Installation

MAN0868-01
HE-XT100
1 Specifications
HE-XT100 Specifications
General Specifications
Required
Power 130 mA @ 24 VDC
(Steady State)
Required
30 A for 1 ms @ 24 VDC
Power (Inrush)
Primary Power
10 – 30 VDC
Range
Relative
5 to 95% Non-condensing
Humidity
Clock Accuracy +/- One Minute/Month at 20C
Operating
-10°C to +60°C
Temperature
Terminal Type Screw Type, 5 mm Removable
Weight 12 oz. (340.19 g)
CE See Compliance Table at :
UL
http://www.heapg.com/Support/compliance.htm

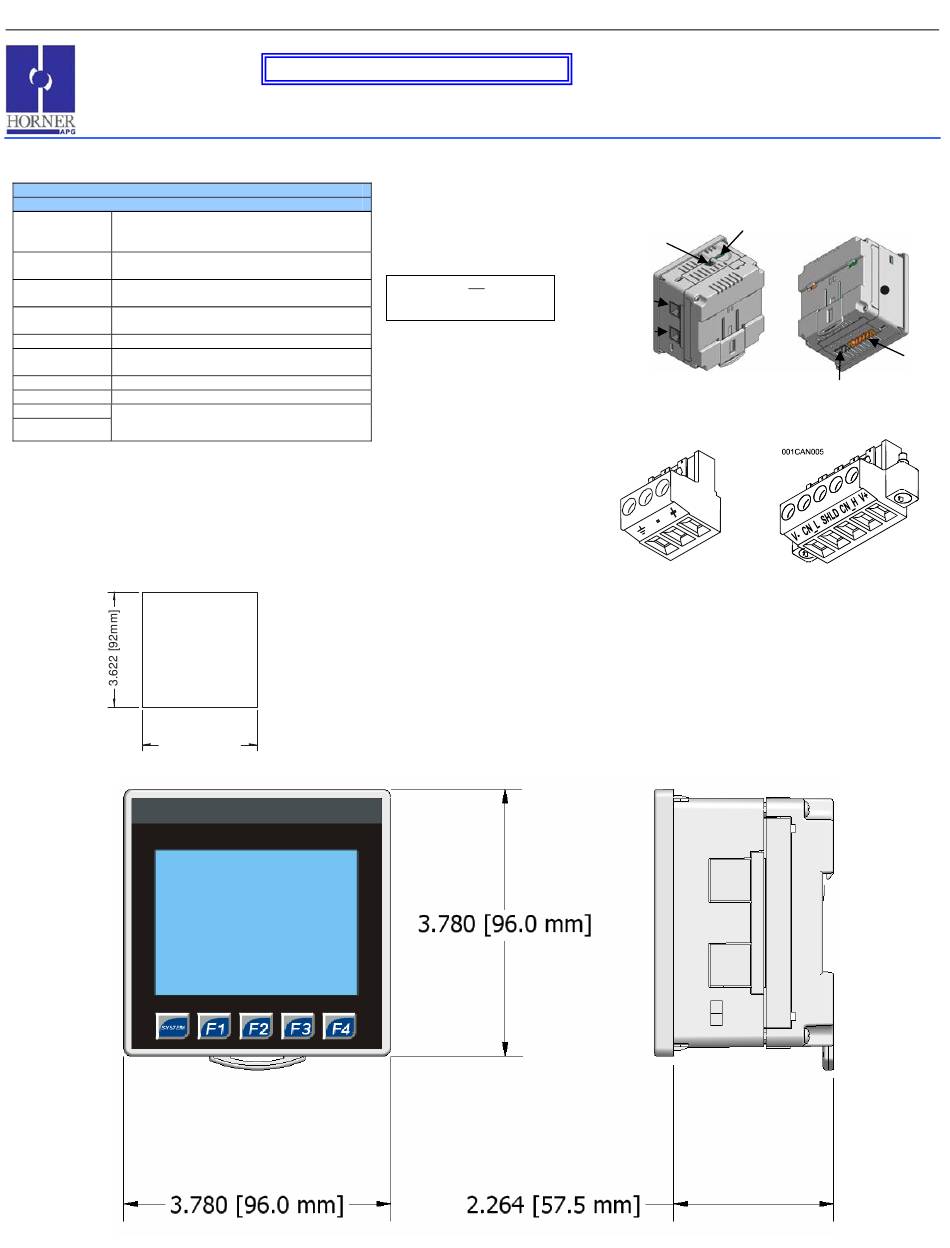

2 Panel Cut-Out and Dimensions
Note: Max. panel thickness: 5 mm.
Refer to XLt User Manual (MAN0863) for panel box information and
a handy checklist of requirements.
Note: The tolerance to meet NEMA standards is ± 0.005" (0.1 mm).
3.622 [92mm]

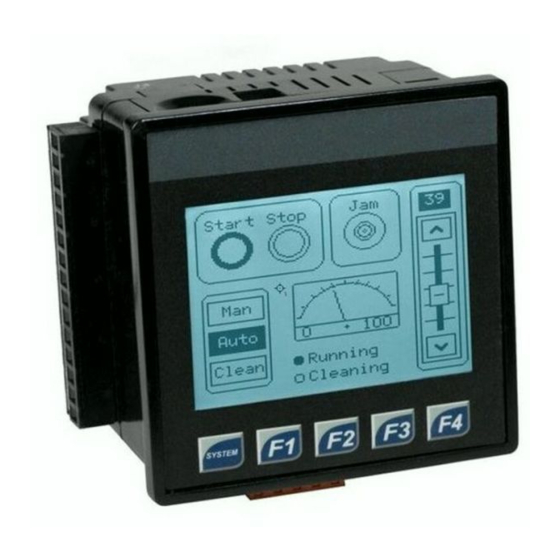

XLT OCS Model: HE-XT100
3
Note: The case of the XLt is black, but for clarity, it is shown in a lighter gray color.
To Remove Back Cover:
Unscrew 4 screws located on
the back of the unit and lift lid.
CAUTION: Do not over tighten
screws when screwing the lid
back on.
Memory Slot:
Uses Removable Memory for
data logging, screen captures,
program loading and recipes.
Horner Part No.: HE-MC1
Serial Communications:
MJ1: (RS-232 / RS-485) Use for
Cscape
Application-Defined
Communications.
MJ2: (RS-232 / RS-485) Use for
Application-Defined
Communications.
001XLE002
12 October 2007
Ports / Connectors / Cables
MJ2
(RS-232 / RS-485)
MJ1
(RS-232 / RS-485)
programming and
Want More Information?
To download the XLt User Manual
(MAN0863), refer to Technical
Support in this document.
DIP
Memory Slot
Switch
Power Connector
Power Up: Use the CAN Connector when
Connect to Earth Ground.
Apply 10 - 30 VDC.
Screen lights up.
Torque rating 4.5 – 7 Lb-In
PAGE 1
Specifications / Installation
NET 1
(CsCAN)
Power
CAN Connector
using CsCAN network.
Torque rating 4.5 – 7 Lb-In
