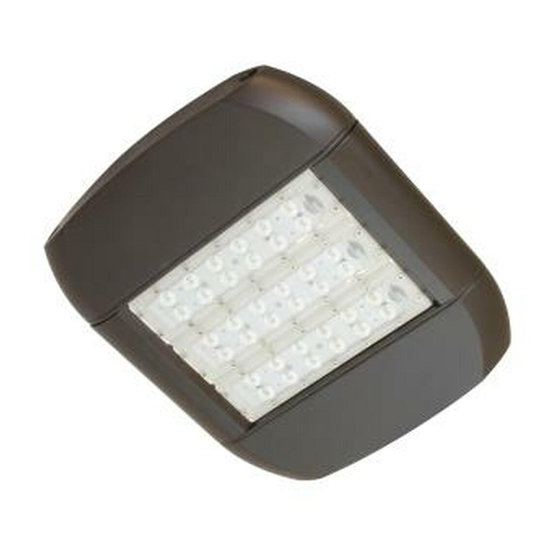

MaxLite QuadroMAX QM Series Installation Manual

Led outdoor lighting fixtures
Hide thumbs

Advertisement

Quick Links

Download this manual

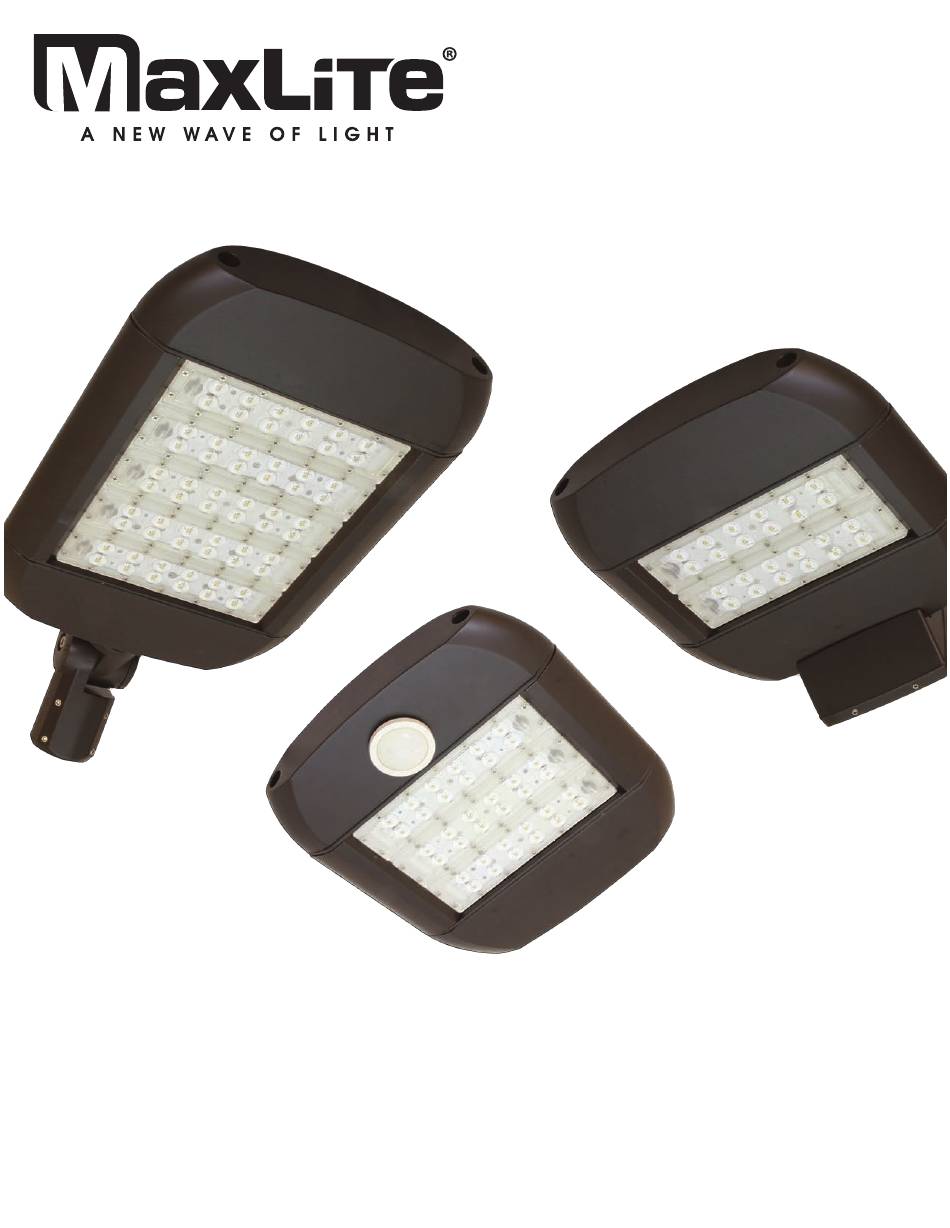

QuadroMAX
LED Outdoor Lighting Fixtures
Installation Manual
QM Series
REV: 3/01/16

Advertisement

loading
Need help?

Need help?

Do you have a question about the QuadroMAX QM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MaxLite QuadroMAX QM Series

Summary of Contents for MaxLite QuadroMAX QM Series

  • Page 1 QuadroMAX LED Outdoor Lighting Fixtures Installation Manual QM Series REV: 3/01/16...

  • Page 2: Before You Begin

    QuadroMAX LED Fixture BEFORE YOU BEGIN Read these instructions completely and carefully. WARNING Risk of fire or electric shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of led retrofit kit, check for enclosed wiring and components. To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.

  • Page 3: General Wiring Diagram

    QuadroMAX LED Fixture General Wiring Diagram: CAUTION: Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply. 120-277V Wiring: 1.) Connect the black fixture wire to the (+) LINE supply wire. 2.) Connect the white fixture wire to the (-) COMMON supply wire. 3.) Connect the green fixture wire to supply ground wire.
  • Page 4 QuadroMAX LED Fixture Trunnion Swivel (TS) 1.) Secure Trunnion to Quadromax by tightening (2) 5/16-18 Internal HEX Head bolts with split washers. 2.) Adjust angle of fixture to desired position by loosen (2) pivot bolts and angle locking screws. 3.) Swivel the fixture to design angle. 4.) Tighten the Pivot Bolts and Angle Locking Screw.
  • Page 5 QuadroMAX LED Fixture Fixed Surface (FS) 1.) Secure Wall Mount Bracket to Quadromax by tightening (2) 5/16-18 Internal HEX Head bolts with split washers and gasket. 2.) Orient Wall Mount Box and TOP position must be pointed up. 3.) Secure Wall Mount Box to a Sturdy Mounting Surface. 4.) Apply silicone sealant and seal the gap between wall and wall mount box Gasket and / Or Junction box if needed.
  • Page 6 QuadroMAX LED Fixture Knuckle Surface (KS) 1.) Secure Wall Mount Bracket to Quadromax by tightening (2) 5/16-18 Internal HEX Head bolts with split washers and gasket. 2.) Orient Wall Mount Box and TOP position must be pointed up. 3.) Secure Wall Mount Box to a Sturdy Mounting Surface. 4.) Apply silicone sealant and seal the gap between wall and wall mount box Gasket and / Or Junction box if needed.
  • Page 7 QuadroMAX LED Fixture Wall Pack (WP) 1.) Secure Wall Mount Bracket to Quadromax by tightening (2) 5/16-18 Internal HEX Head bolts with split washers and gasket. 2.) Secure Wall Mount Bracket to Wall Junction box. 3.) Wire the fixture using UL listed wire connectors. 4.) Placed wired fixture over the Wall Mount Box and tighten the (2) 5/16-18 set screws.
  • Page 8 QuadroMAX LED Fixture Pole Mount (PM) 1.) Secure Pole Mount Bracket to Quadromax by tightening (2) 5/16-18 Internal HEX Head bolts with split washers and gasket. 2.) For 4” Round Pole: Secure fixture to round pole by tightening (2) 3/8” X1.75” bolts with flat and split washer.
  • Page 9 QuadroMAX LED Fixture Pole Mount Drilling Template: (template shown to scale.)
  • Page 10 QuadroMAX LED Fixture Slipfitter Knuckle (SK) 1.) Secure Slipfitter to Quadromax by tightening (2) 5/16-18 Internal HEX Head bolts with split washers and gasket. 2.) Wire the fixture using UL listed water proof wire connectors. 3.) Slip slipfitter onto Tenon and secure by tightening set screws with Allen key. (The slipfitter mounting fits a 2 3/8”...
  • Page 11 QuadroMAX LED Fixture Slipfitter Fixed (SF) 1.) Secure rigid area mount bracket to Quadromax by tightening (2) 5/16-18 Internal HEX Head bolts with split washers and gasket. 2.) Wire the fixture using UL listed water proof wire connectors. 3.) Slip Rigid area mount bracket onto Tenon and secure by tightening set screws with Allen key. (The slipfitter mounting fits a 2 3/8”...
  • Page 12 QuadroMAX LED Fixture Canopy (CP) 1.) Secure bottom bracket to Quadromax by tightening (6) #10 screws with flat and split washer. 2.) Secure Top bracket to ceiling junction box by tightening (4) #10 screws with flat and split washer. 3.) Wire the fixture using UL listed wire connectors. 4.) Insert bottom bracket onto top bracket and secure the fixture by tightening (2) ¼”...
  • Page 13 QuadroMAX LED Fixture Mounting Options: Dimensions Trunnion Swivel (TS) Fixed Surface (FS) Knuckle Surface (KS) Wall Pack (WP)
  • Page 14 QuadroMAX LED Fixture Mounting Options: Dimensions Pole Mount (PM) Slipfitter Knuckle (SK) Slipfitter Fixed (SF) Canopy (CP)
  • Page 15 AREA LIGHT; CANOPY; GARAGE; PARKING; SECURTIY LIGHT; VAPOR TIGHT AND ROADWAY. This limited warranty is provided by the MaxLite company described below ("Seller") to you as the original purchaser of the LED lighting product that is identified on Seller's invoice reflecting its original purchase (the "Product"). The Seller is the MaxLite Company identified as such on the invoice.
