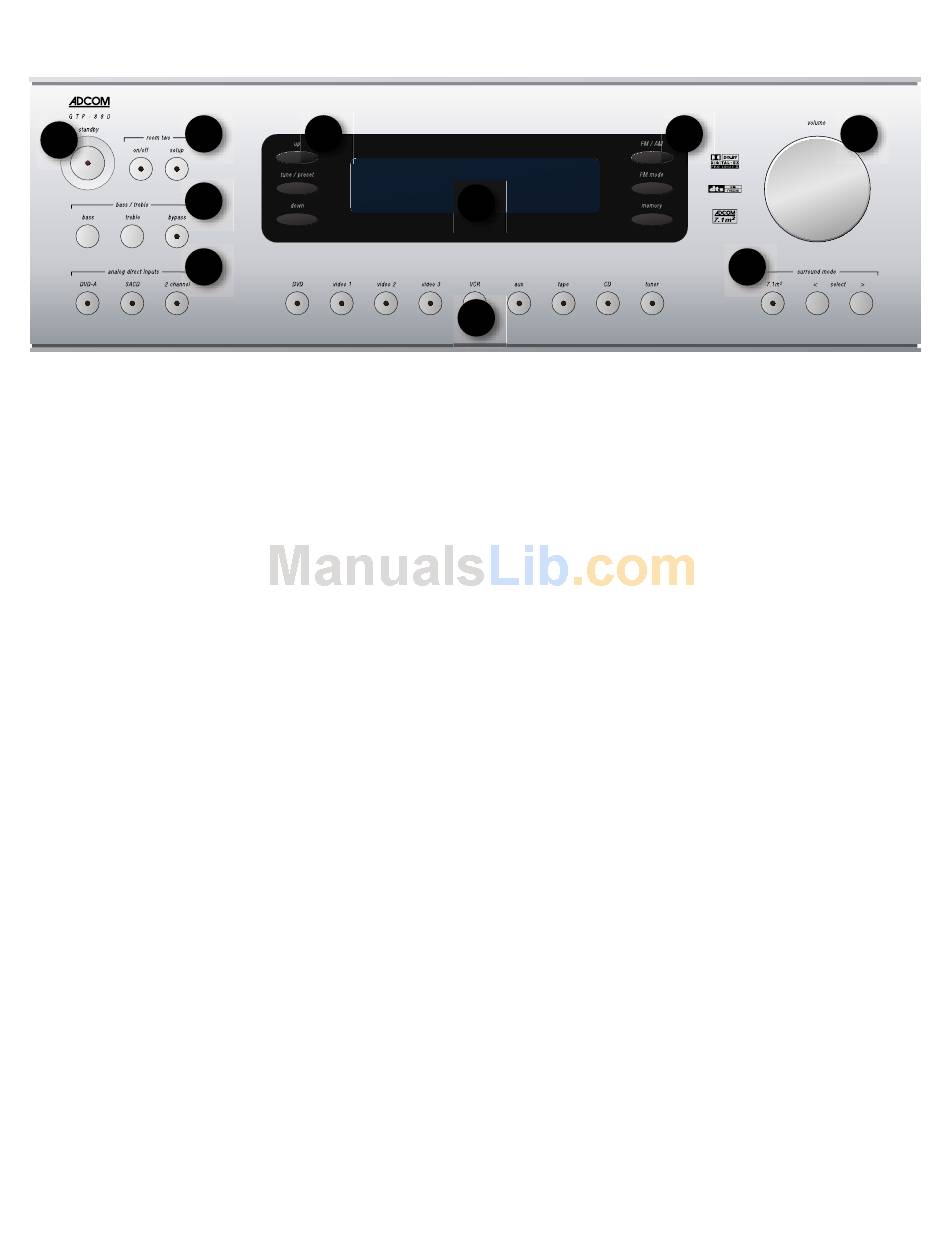

1.1 Front Panel Illustration

2
1
3
4
[ 1 ] Standby Power Button
[ 2 ] Room Two Control
[ 3 ] Bass & Treble

1.2 Introduction to the GTP-880

Congratulations on your decision to purchase the ADCOM
GTP-880 tuner-preamplifier. The GTP-880 provides Dolby
Digital and DTS decoding with 7.1 output channels and
the RDS (Radio Data System) tuner. You have made a wise
choice that will reward you for years to come with excep-
tionally accurate and musical sound reproduction. To real-
ize the full potential of your new preamplifier, and before
making any connections to it, please read these operating
and installation instructions thoroughly

1.3 Interface Overview

The GTP-880's front panel is designed for ease of
operation. All controls are logically grouped for easy,
intuitive operation. Familiarize yourself with the preced-
ing diagram and read the short explanations of each fea-
ture below. When you finish, you will be well on your way
to enjoying the GTP-880's convenience and sound quality.
[ 1 ] Standby Power Button
Pressing this button turns the unit on, indicator is red.
Pressing this button again returns the GTP-880 to standby
mode. The standby indicator is amber.
In this mode of operation, the front panel display is turned
off, control functions are disabled, and all outputs to the
main room are turned off. Outputs to room two remain
active and available. It should be noted that they are only
"active" oif room two power is on.
6 | ADCOM GTP-880 Owner's Manual
5
6
7
[ 4 ] Analog Direct Select
[ 5 ] Digital Tuner Controls
[ 6 ] Front Panel Display
Note: The rear panel power switch must be on for this
button to function.
[ 2 ] Room Two Control
The GTP-880 has the ability to play and control an analog
audio signal in a second room from the front panel or
remote control. Any of the incoming analog audio signals
can be distributed to the second room, with the exception
of analog direct inputs.
On/Off Button: Pressing this button activates the room
.
two functionality and control. The on/off indicator light
illuminates.
Note: This light will remain lit when the other
indicators are off, as long as the second room is active.
Pressing this button again turns room two off, indicator
light extinguishes.
Setup Button: Pressing this button enters the room two
setup mode, pressing this button again will cycle a list of
room two options. Use the volume control knob to make
selections while in setup.
After entering setup the first option presented turns room
two off or on. Pressing this button again gives the option
to select a source to be played in room two.
Pressing this button again presents the option to mute the
output in room two.
5
9
[ 7 ] Source Selections
[ 8 ] Volume Control Knob
[ 9 ] Surround Mode
