New Power Supply Implementation Kit (NGC-3069)
Distribution
Field service personnel.
Application
All domestic and international NGC ovens requiring power supply replacement.
Kit Components
•

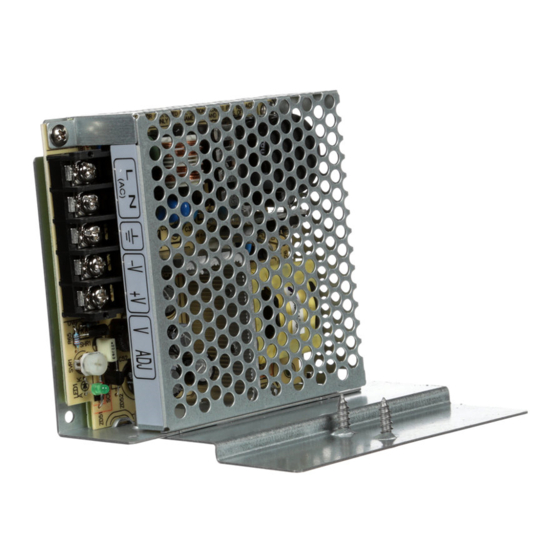

Power supply (101211)
•
Bracket, power supply (NGC-1391)
•
Screw, #8 x ½ SS, Phillips truss type 17 with serrations (101688) x2
•
Screw, M3 (GB818-9) x3
•
Washer, split lock, M3 (GB93-1) x3
•
Field service bulletin (FSB-10062)
Required Parts
•
Phillips screwdriver
Step 1—Ensure the oven is removed from power source.
Step 2—Remove the right side panel.
Step 3—Remove the top panel.
Step 4—Remove and discard the old power supply and hardware.
a. The old power supply is attached to the top of the electrical compartment frame via three screws and three
standoffs.
b. Remove and discard the power supply, screws, and standoffs.
FSB10062A
3/29/07
Page 1 of 2
