American Standard PATIENCE T106.502 General Description

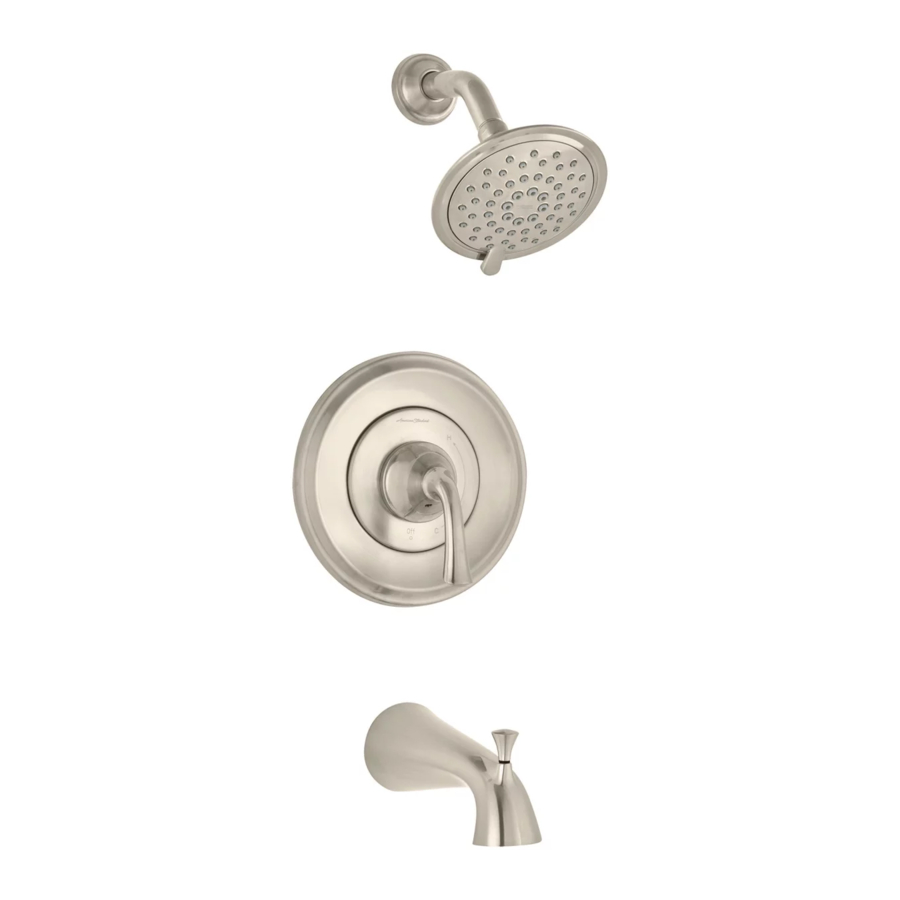

T106.502 Bath/Shower Trim Shown
GENERAL DESCRIPTION:
SHOWERHEAD
3-Function Showerhead at maximum
2.5 gpm/9.5 L/min. flow rate.
WALL TUB SPOUT
Metal slip-on diverter spout.
WALL VALVE TRIM
Available with metal lever handle.
Metal wall escutcheon.
ADA COMPLIANT EPA
WATERSENSE®
CERTIFIED
SUGGESTED SPECIFICATION
Bath/shower filling shall feature 3 function showerhead with Max. 2.5 gpm/9.5 L/min. flow rate. Fitting shall be:
American Standard - Trim Kit Model # T106.50_.__ and Valve Body Model #R11_.
© 2017 AS America, Inc.
PRESSURE BALANCE BATH/SHOWER FITTING
MODEL NUMBER:
TRIM KIT:
❏ T106.502 Patience BATH/SHOWER Trim Kit
Metal Lever Handle. LESS Valve Body.
❏ T106.501 Patience SHOWER ONLY Trim Kit
Metal Lever Handle. LESS Valve Body.
❏ T106.500 Patience VALVE ONLY Trim Kit
Metal Lever Handle. LESS Valve Body.
For use with R110 Series Pressure Balance Valves.
See reverse side for available Rough Valves.
FINISHED WALL
9-1/2"
(223 mm)
3-7/8"
(99 mm)
7-3/8"
(187 mm)
74" (1879 mm)
FOR HEAD
CLEARANCE
4-1/8"
(105 mm)
18" (457 mm)
OPTIONAL
(208 mm)
1-1/2"
3-3/16"
(81 mm)
(177 mm)
TOP OF TUB RIM
BOTTOM OF TUB
2" TO 3"
(51 TO 76 mm)
1/2" NPT
6-3/4"
(171 mm)
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 78"
(1651 AND 1981 mm)
7-13/16"
(198 mm)
8-3/16"
1/2" COPPER
7"
FOR SLIP-ON
SPOUT
PATIENCE
™
4"
8/17
