LEFT WING ASSEMBLY

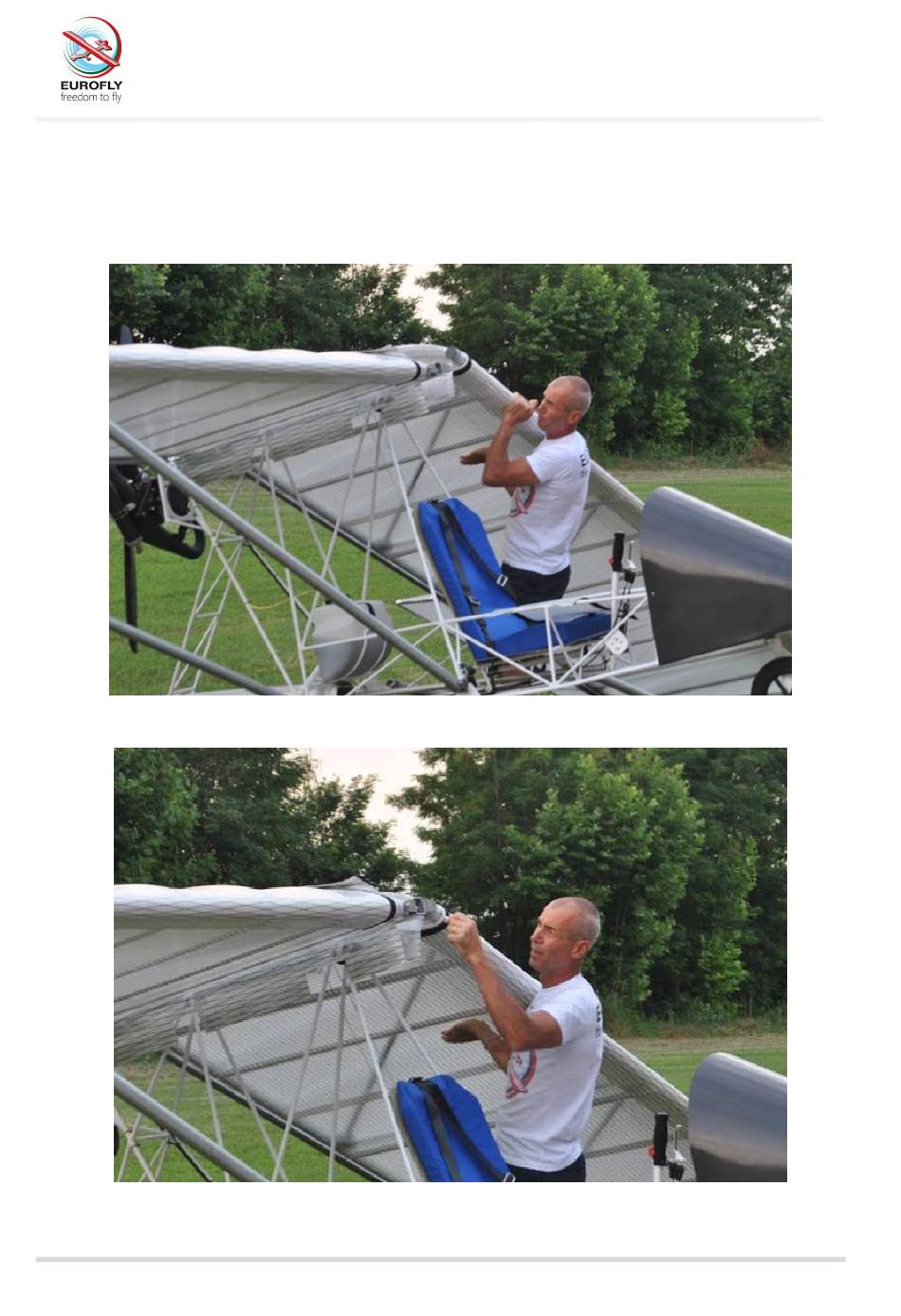

Similarly as we did for the right half-wing, we take from the relative support the left half-wing and we bring it
in proximity of the joints of the fuselage's longeron. Then, we fix the frontal and back pivots as in figure 8
and 9.
Freedom to fly
Figure 8
Figure 9
