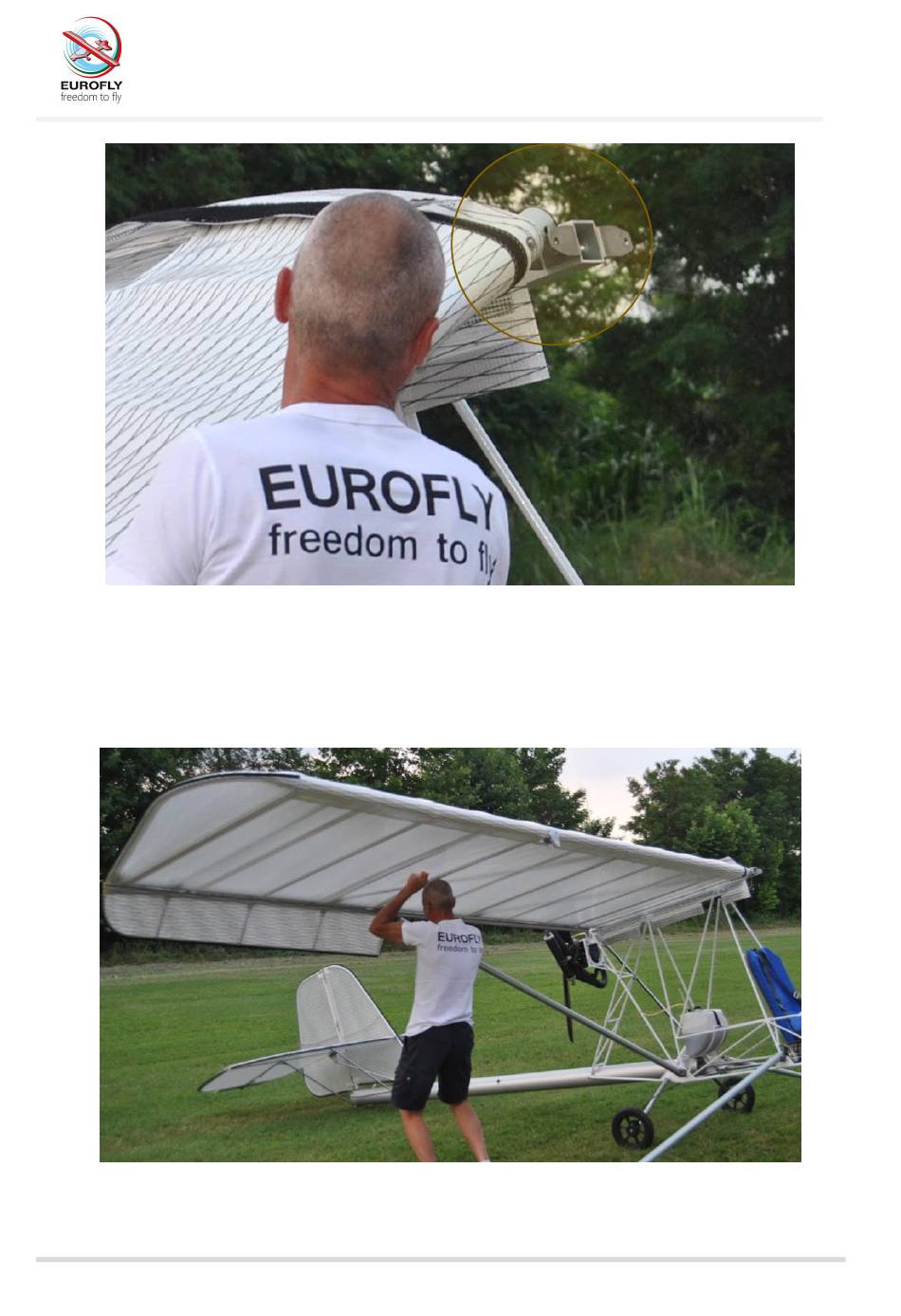

Now, we fix the pivots from front to back through the holes (figure 5) and the relative rear so that to allow
the half-wing to
We take the half-wing in correspondence of the pillar's fixing. Then, we lift it and we fix the first pillar with the
pivot as in the figure 6. In the pivots' fixing we leave the plugs not inserted. We will insert them later.
Freedom to fly
rotate successively,
Figure 5
when we have to
Figure 6
lift it to fix the pillars.
5
