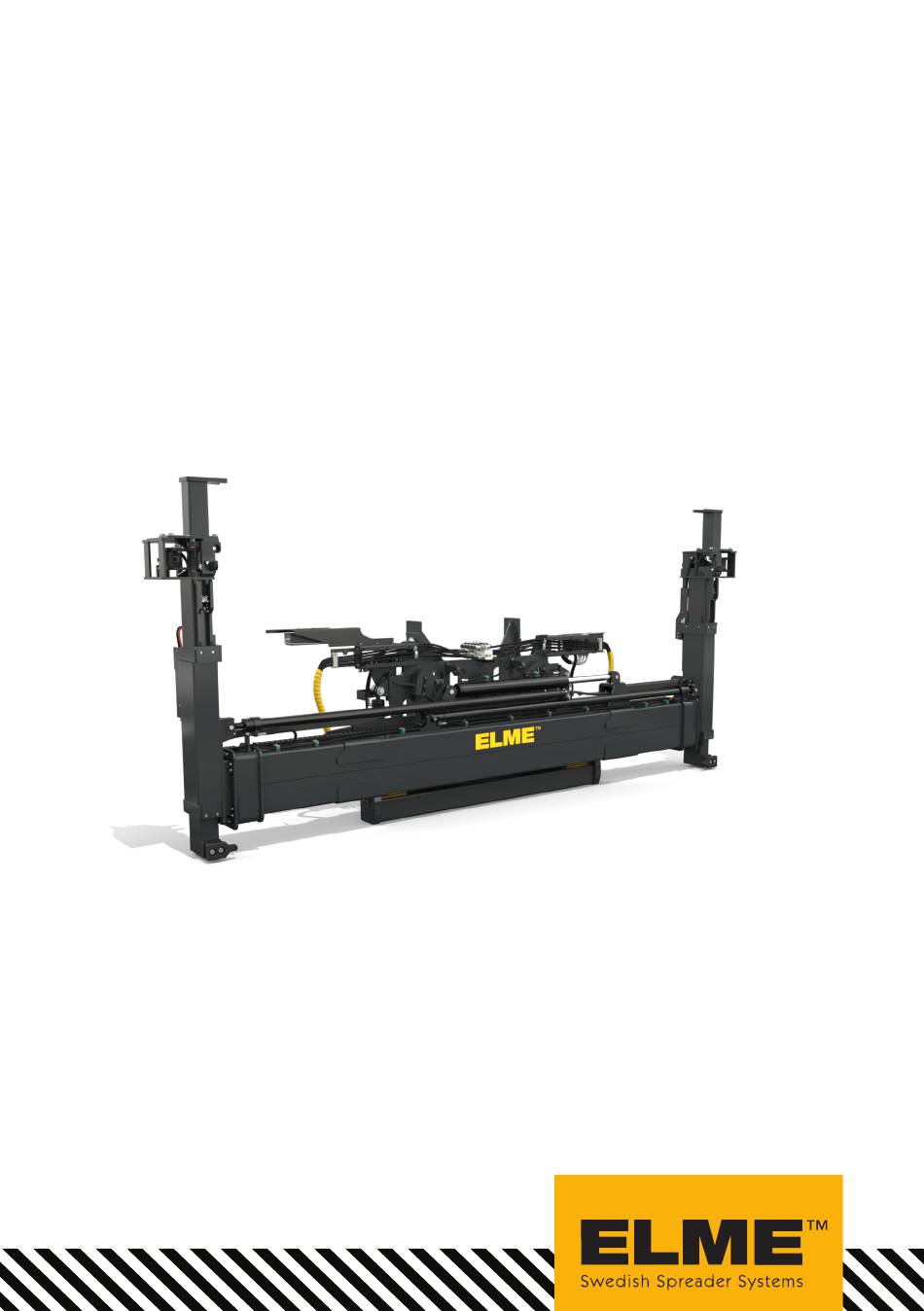

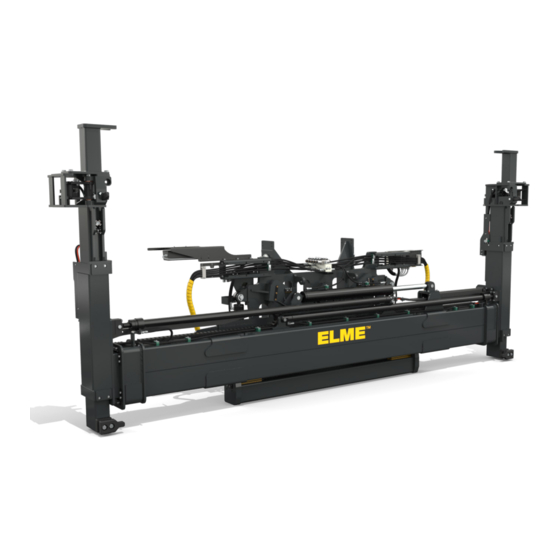

- Page 1 MANUAL Servicebox 584LA/LB/LD...
-
Page 2: Table Of Contents
Why use Genuine Parts? All information, illustrations and specifications in this manual are based on the latest information at the time of publication. The right is reserved to make changes at any time without notice. COPYRIGHT© 2015 ELME Spreader AB. -
Page 3: Hook Assembly
HOOK ASSEMBLY The hook is a genuine ELME part, which is certified and marked with a unique serial number. - Page 5 To remove the hook, proceed as follows: 1 Bend out the edge of the lock washer (item 3) to be able to remove the nut (item 4). 2 Unscrew and remove the nut (item 4). 3 Remove the pin (item 2) by gently knocking it through the hook (item 1). 4 Remove the hook (item 1).
-
Page 6: Wear Pads & Shims
WEAR PADS & SHIMS To eliminate mechanical friction, there are plastic pads between extension beams and main frame. The pads are positioned for support to reduce and also to absorb horizon- tal and vertical shock loads, they are mounted in several retainers. This design makes inspection and replacement easy. - Page 7 Plastic wear pads The plastic wear pads (item 1) should be inspected for wear. Replacing the wear pads can be done with ordinary hand tools and without removing the beams. Shims If the play on the sides of the extension beam is more than 10 mm, it is possible to use different sizes of shims (item 2) to reduce the play.
-
Page 8: Pps Option
PPS option Nylon wear pad on PPS frame The plastic wear pad (item 1) and the bronze wear pad (item 3) should be inspected for wear. Replacing the wear pad can be done with ordinary hand tools. Shims Shims (item 2) are also included in the service box for PPS and should be replaced if necessary. -
Page 9: Flextrack Chain
FLEXTRACK CHAIN Included in this service box is a complete flextrack chain. On this page, you will find instructions how to replace the flextrack chain. Remove the flextrack chain (item 1) by first opening all links on it. IMPORTANT! Carefully open each link with a suitable screwdriver or similar. When all links are opened, unscrew the bolts (item 2), the washers (item 3) and the nuts (item 4) on the brackets mounted in each end of the flextrack chain (item 1). -
Page 10: Back Up Parts
BACK UP PARTS A number of back up parts are also included in this servicebox, in case of breakdown. Proximity switch For replacement of proximity switch / sensor in hook assembly. Seal kits For replacement of seal kits in extension, sideshift, tilt and side clamp cylinders. See instructions on following pages. - Page 11 Seal replacement - Sideshift cylinder and Tilt cylinder (PPS option) Remove the side shift cylinder or tie up the cylinder when working on the spreader. Loosen gland (item 3) and hydraulic hoses and pull out the piston rod (item 1). Be careful not to damage the piston rod when removing and beware of the oil spill.
- Page 12 Seal replacement - Extension cylinder Remove the extension cylinder from the spreader. Loosen the 8 bolts (item 12) and pull out the piston rod. Be carefulnot to damage the piston rod and beware of oil spill. (It is best if you attach a hose on the front oil connection of the cylinder and place the other end in a oil bin or a jerry can) Remove the roll pin (item 2), the nut (item 3), the piston (item 4), the spacer (item 5), the gland (item 7) and the washer (item 9) from the rod.
- Page 13 Seal replacement - Side clamp cylinder Remove the cylinder from the head. Loosen gland (item 3) and pull out the piston rod. Be careful not to damage the piston rod and beware of oil spill. Remove the set roll pin (item 6), the piston (item 4) and the gland (item 3) from the rod.
-
Page 14: Summary Of All Parts Included
Summary of all parts included in the box: Hook Hook Assembly Lock washer Bushing Wear pads & Shims Wear pad - Endbeam Wear pad - Mainframe Wear pad - Carriage Shims - Mainframe Shims - Endbeam Flextrack Chain Flex track chain Back up Parts Proximity switch Seal kit - Sideshift cylinder... -
Page 15: Why Use Genuine Parts
- this must be corrected before use. If the spreader needs to be repaired, please contact a specialist and see to that only ELME Genuine Parts are used if need of replacement. This is to ensure that the spreader still is reliable. Repairs made by a non-qualified person or use of non-genuine parts may lead to increased risk of personal injuries or damages. - Page 16 HEADOFFICE SALES AND SPARE PARTS SPARE PARTS ELME Spreader AB ELME Spreader Trading (Shanghai) Co. Ltd ELME Americas Inc. Älmhult, Sweden Shanghai, China Martin, TN, United States sales@elme.com sales.cn@elme.cn sales.us@elme.com www.elme.com...
