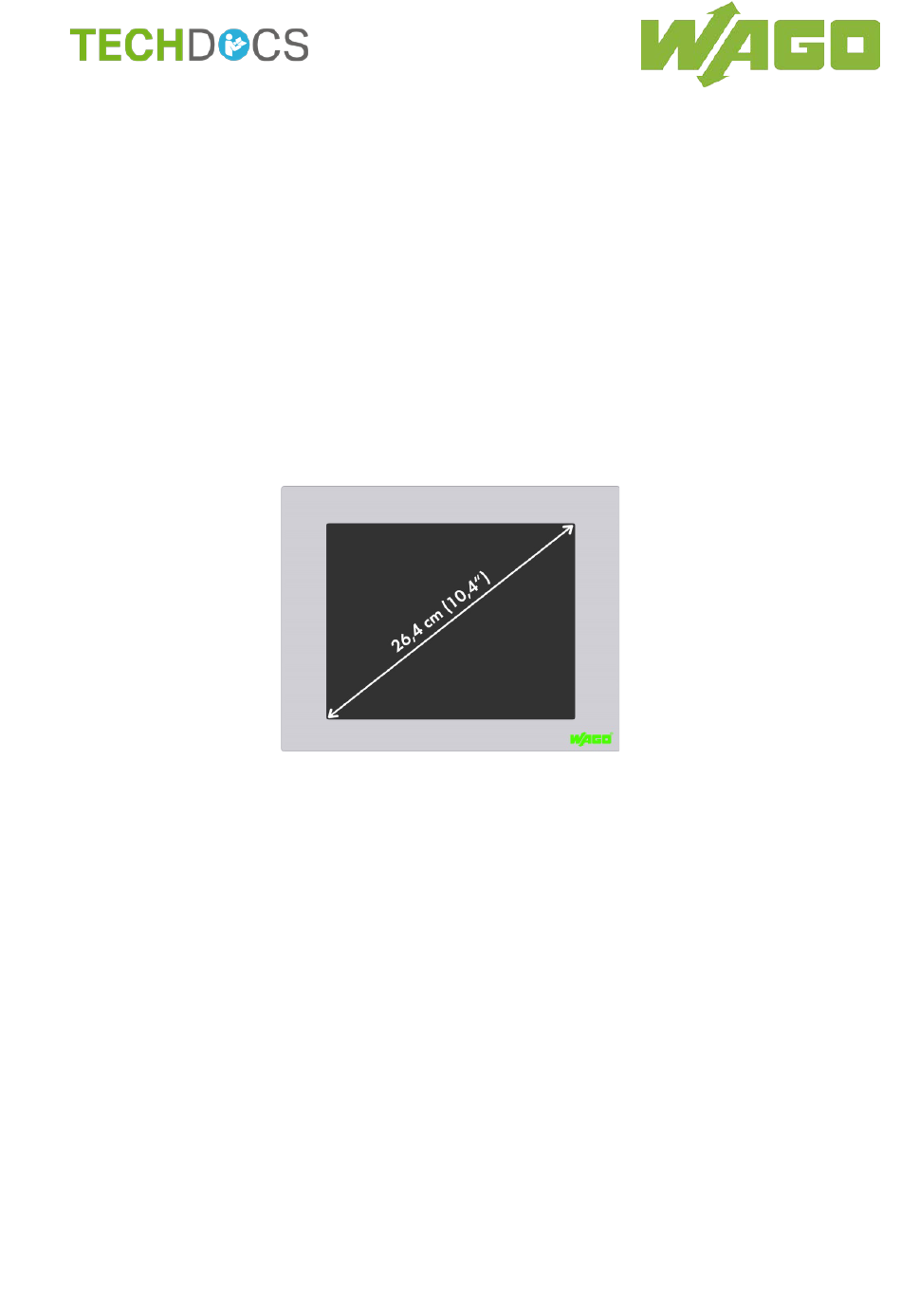

- Page 1 Manual WAGO PERSPECTO® 762 762-1104 WP 104 VGA PERSPECTO® WP - Web Panel Version 1.3.1...
- Page 2 WAGO PERSPECTO® 762 762-1104 WP 104 VGA © 2018 WAGO Kontakttechnik GmbH & Co. KG All rights reserved. Manual Version 1.3.1...
-
Page 3: Table Of Contents
WAGO PERSPECTO® 762 Table of Contents 762-1104 WP 104 VGA Table of Contents Notes about this Documentation ............. 5 Scope of Validity ..................5 Copyright ....................5 Symbols ....................6 Number Notation ..................8 Font Conventions ................... 8 Important Notes ..................9 Legal Bases .................... - Page 4 6.2.2 Setting the IP Address ..............30 6.2.3 IP Address ..................31 The WAGO Control Center ..............32 6.3.1 Starting the WAGO Control Center ..........32 6.3.2 “General” Tab .................. 33 6.3.3 “Autostart Applications” Tab ............. 34 6.3.4 “Users” Tab ..................35 6.3.5...
-
Page 5: Notes About This Documentation
Manual by third parties that violate pertinent copyright provisions is prohibited. Reproduction, translation, electronic and phototechnical filing/archiving (e.g., photocopying) as well as any amendments require the written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany. Non-observance will involve the right to assert damage claims. Manual... -
Page 6: Symbols
Notes about this Documentation WAGO PERSPECTO® 762 762-1104 WP 104 VGA Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. - Page 7 WAGO PERSPECTO® 762 Notes about this Documentation 762-1104 WP 104 VGA Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Manual Version 1.3.1...
-
Page 8: Number Notation
Font Conventions Table 2: Font Conventions Font Type Indicates italic Names of paths and data files are marked in italic-type. e.g.: C:\Program Files\WAGO Software Menu Menu items are marked in bold letters. e.g.: Save > A greater-than sign between two names means the selection of a menu item from a menu. -
Page 9: Important Notes
2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents. - Page 10 Important Notes WAGO PERSPECTO® 762 762-1104 WP 104 VGA following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: • Repairs, • Changes to the hardware or software that are not described in the operating instructions, •...
-
Page 11: Safety Advice (Precautions)
WAGO PERSPECTO® 762 Important Notes 762-1104 WP 104 VGA Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the following safety precautions shall be observed: Do not work on devices while energized! All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work. - Page 12 Important Notes WAGO PERSPECTO® 762 762-1104 WP 104 VGA Do not use any contact spray! Do not use any contact spray. The spray may impair contact area functionality in connection with contamination. Do not use in telecommunication circuits! Only use devices equipped with ETHERNET or RJ-45 connectors in LANs.
-
Page 13: Characteristics Of The Codesys Web Visualization
The CODESYS Web visualization contains some limitations and particularities. In connection with the Web panel, the following description must be observed for continuous operation: To use this file with the WAGO Web panel, the call for the function "CookieHandling()" is disabled. -
Page 14: Description Of The Function "Cookiehandling()
Important Notes WAGO PERSPECTO® 762 762-1104 WP 104 VGA Response time depends on the number, type and form of the objects displayed This device has been designed for presentation of simple CODESYS Web visualizations. The device establishes communication with a controller (e.g. from the series 750-88x or 758-8xx) and displays the visualization pages stored there. -
Page 15: Device Description
762-1104 WP 104 VGA Device Description The 762 Series panels are used to operate and visualize the controllers of the WAGO-I/O-SYSTEM. The integrated WAGO-AUTOMATION COCKPIT development environment is used to program the panels and controllers. PERSPECTO WP Web Panel Featuring specialized software, the Web Panel functions as Web browser, connecting a controller with its own Web server. -
Page 16: View
Device Description WAGO PERSPECTO® 762 762-1104 WP 104 VGA View 3.2.1 Front View Figure 1: Front View Table 3: Legend for Figure “Front View” Description Front panel Touch screen display Manual Version 1.3.1... -
Page 17: Back View
WAGO PERSPECTO® 762 Device Description 762-1104 WP 104 VGA 3.2.2 Back View Figure 2: Back View Table 4: Legend for Figure “Back View” Designation Description Housing Connection for 24VDC power supply RS-232 serial interface (COM 3) and RS-485/RS-422 serial interface (COM 2) as D-sub 9 connector... -
Page 18: Connectors
Device Description WAGO PERSPECTO® 762 762-1104 WP 104 VGA Connectors 3.3.1 X1 – Supply Voltage Use the X1 connection for the device power supply. More information about the power supply and power consumption is available in the "Technical Data" section. -
Page 19: X6 - Ethernet Interface
WAGO PERSPECTO® 762 Device Description 762-1104 WP 104 VGA 3.3.2 X6 – ETHERNET Interface An RJ45 jack is used for the ETHERNET interface. The connections and cables must meet CAT.5 and the guidelines for ETHERNET interfaces. If there are more than 2 devices in a network, then they must be connected to each other by a HUB or SWITCH. -
Page 20: X8/X9 - Usb Interfaces
Device Description WAGO PERSPECTO® 762 762-1104 WP 104 VGA 3.3.3 X8/X9 – USB Interfaces The interfaces are designed as USB host interfaces, type A. The following table and illustration provide information on the pin assignment of the interfaces. The interface connection meets the USB specification 2.0. -
Page 21: Battery Case
WAGO PERSPECTO® 762 Device Description 762-1104 WP 104 VGA Battery Case Do not charge, disassemble or burn the battery! Incorrect use of the lithium battery contained in this device may cause damage incurred by fire or chemical burns. The battery must not be charged, disassembled, burned or exposed to temperatures exceeding 100°C (212°F). -
Page 22: Slot For Memory Card
Slot for Memory Card The panel 762-1104 is equipped with a Flash memory slot on the side for a CF card. It supports cards with a 2 GB maximum. Supported memory cards (item no. 758-879/000-000) are available from WAGO. Manual Version 1.3.1... -
Page 23: Operating Elements
Operating Elements 3.6.1 Service Button The service switch on the back of the device is used to call up the Windows CD desktop. The WAGO Control Center can be launched, for example, to configure the device. Figure 7: Service Button Manual... -
Page 24: Technical Data
Device Description WAGO PERSPECTO® 762 762-1104 WP 104 VGA Technical Data 3.7.1 Housing Table 8: Technical Data ‒ Housing Front panel Anodized aluminium, polyester film Housing material Varnished sheet steel Dimensions (W x H x L) 284 x 222 x 46 mm... -
Page 25: Hardware
WAGO PERSPECTO® 762 Device Description 762-1104 WP 104 VGA 3.7.4 Hardware Table 11: Technical Data ‒ Hardware Processor 32 Bit XScale 520 MHz RAM / Flash / SRAM 64 MB / 32 MB / 1 MB Memory expansion CF-Card (max. 2 GB) 3.7.5... -
Page 26: Approvals
Device Description WAGO PERSPECTO® 762 762-1104 WP 104 VGA Approvals The following approvals have been granted to 762-1104 panels: Conformity Marking Standards and Guidelines 762-1104 panels meet the following requirements on emission and immunity of interference: EMC CE-Immunity to interference... -
Page 27: Mounting
The operating temperature ranges specified in the technical data apply to the recommended mounting position. If the panel is mounted in a position different than recommended, cooling can be affected. Contact WAGO Service for more information. The PERSPECTO Series panels are used in the panel cutout provided and bolted down with the included clamping elements from behind (note the following installation diagram). -
Page 28: Connect Devices
Connect Devices WAGO PERSPECTO® 762 762-1104 WP 104 VGA Connect Devices Supply voltage Connect the supply voltage to contact 1 (24 VDC) and contact 2 (GND) of the included 734-103 female connector. Use an appropriate operating tool to open ®... -
Page 29: Commissioning
Time window for launching the Windows CE desktop! The WAGO Control Center can be used to set the time window for launching the Windows CE desktop after the boot and self-test phase. If the time is set to 0, the Windows CE desktop can only be launched by the service switch. -
Page 30: Ip Address Of The Device
DHCP to a fixed IP address. 6.2.2 Setting the IP Address The WAGO Control Center is used to set the IP address. Call up the WAGO Control Center from the Start menu: Start > Programs > Utilities > WAGO Control Center Click the Advanced tab and then on the [LAN] button. -
Page 31: Ip Address
WAGO PERSPECTO® 762 Commissioning 762-1104 WP 104 VGA Figure 9: IP Address 6.2.3 IP Address When using a crossover cable to connect between the panel and configuring PC directly, it is recommended that both devices have fixed IP addresses with an open address in the range 192.168.1.xxx. -
Page 32: The Wago Control Center
762-1104 WP 104 VGA The WAGO Control Center The WAGO Control Center can be used to configure the device. Settings for the Autostart programs, uses, FTP/HTTP and RAS access can be made. General device settings can also be checked and modified. -
Page 33: General" Tab
WAGO PERSPECTO® 762 Commissioning 762-1104 WP 104 VGA 6.3.2 “General” Tab Figure 10: “General” Tab Device Information Information about the device is found here. This information is important, for example, for support cases. General Watchdog: A watchdog can be configured here, which can restart the device if it crashes after a set time. -
Page 34: Autostart Applications" Tab
Commissioning WAGO PERSPECTO® 762 762-1104 WP 104 VGA 6.3.3 “Autostart Applications” Tab You can enter programs here that should launch automatically after booting. The HMI runtime is entered here by default. The time window for launching the programs after the boot and self-test phase of the device can also be set here. -
Page 35: Users" Tab
WAGO PERSPECTO® 762 Commissioning 762-1104 WP 104 VGA 6.3.4 “Users” Tab You can create FTP users, grant rights and assign directories. The menu is generally self-explanatory. Figure 12: “Users” Tab User/Virtual Roots: A directory from another (protected) tree, for example, can be put in the user's home directory. -
Page 36: Ftp" Tab
Commissioning WAGO PERSPECTO® 762 762-1104 WP 104 VGA 6.3.5 “FTP” Tab You can configure the FTP server of the device here. More information about creating users is available in the "Users Tab" section. Figure 13: “FTP” Tab Manual Version 1.3.1... -
Page 37: Http" Tab
WAGO PERSPECTO® 762 Commissioning 762-1104 WP 104 VGA 6.3.6 “HTTP” Tab You can configure the Web server of the device here. Figure 14: “HTTP” Tab Application example: An \httptest directory with the /test alias was created on the flash disk. -
Page 38: Ras" Tab
Both RAS functions, server and client, are supported. The connection between a RAS client and the RAS server can be established via a modem, VPM or direct connection. For more information about the Remote Access Service (RAS) of the device, please contact WAGO Support. Manual Version 1.3.1... -
Page 39: Backup/Restore" Tab
WAGO PERSPECTO® 762 Commissioning 762-1104 WP 104 VGA 6.3.8 “Backup/Restore” Tab You can save and restore the device configuration and project data, for example, on a memory card. Figure 16 “Backup/Restore” Tab The [Backup] button is used to save the parameters defined in the backup_restore.cfg and entries on the target data carrier. -
Page 40: Advanced" Tab
Commissioning WAGO PERSPECTO® 762 762-1104 WP 104 VGA 6.3.9 "Advanced" Tab You can perform advanced settings for the device. The menu is generally self- explanatory. Figure 17: "Advanced" Tab 6.3.9.1 Read Memory Consumption Click the [System …] button and select the [Memory] tab. -
Page 41: Figure 18: Memory Consumption
WAGO PERSPECTO® 762 Commissioning 762-1104 WP 104 VGA Figure 18: Memory Consumption A progress bar displays the memory consumption. Manual Version 1.3.1... -
Page 42: Saving The Configuration
Commissioning WAGO PERSPECTO® 762 762-1104 WP 104 VGA 6.3.10 Saving the Configuration After configuring the panel, the settings must be permanently saved in the registry. Call up the following utility program: Start -> Programs -> Utilities -> Save Registry Fail-safe saving of the configuration! If the settings are not saved as described, they are lost when the device is restarted. -
Page 43: Optimizing Web Visualization
WAGO PERSPECTO® 762 Commissioning 762-1104 WP 104 VGA Optimizing Web Visualization The following settings have been made to optimize visualization. 6.4.1 Starting the Java Virtual Machine as an Applet Viewer The following call is enabled by default in the Autostart Applications tab. -
Page 44: Adjustments In The Webvisu.htm Of The Controller
"WebVisu.htm" and "WebVisu_wago.htm" files: <param name="UPDATETIME" value="100"> <param name="USEURLCONNECTION" value="False"> After installation of the WAGO-CODESYS application, the htm files and jar file are located in the CODESYS installation directory. Example path: C:\Program Files\WAGO Software\CODESYS V2.3\visu Manual Version 1.3.1... -
Page 45: Service
WAGO PERSPECTO® 762 Service 762-1104 WP 104 VGA Service Battery Maintenance Do not charge, disassemble or burn the battery! Incorrect use of the lithium battery contained in this device may cause damage incurred by fire or chemical burns. The battery must not be charged, disassembled, burned or exposed to temperatures exceeding 100°C (212°F). -
Page 46: List Of Figures
List of Figures WAGO PERSPECTO® 762 762-1104 WP 104 VGA List of Figures Figure 1: Front View ...................16 Figure 2: Back View ...................17 Figure 3: Connector X1 – Supply Voltage ............18 Figure 4: Connector X6 ‒ ETHERNET RJ45 ............19 Figure 5: Connectors X8/X9 – USB Interfaces ...........20 Figure 6: Battery Case ..................21... -
Page 47: List Of Tables
WAGO PERSPECTO® 762 List of Tables 762-1104 WP 104 VGA List of Tables Table 1: Number Notation ................... 8 Table 2: Font Conventions .................. 8 Table 3: Legend for Figure “Front View” .............16 Table 4: Legend for Figure “Back View” .............17 Table 5: X1 Pin Assignment ................18...
