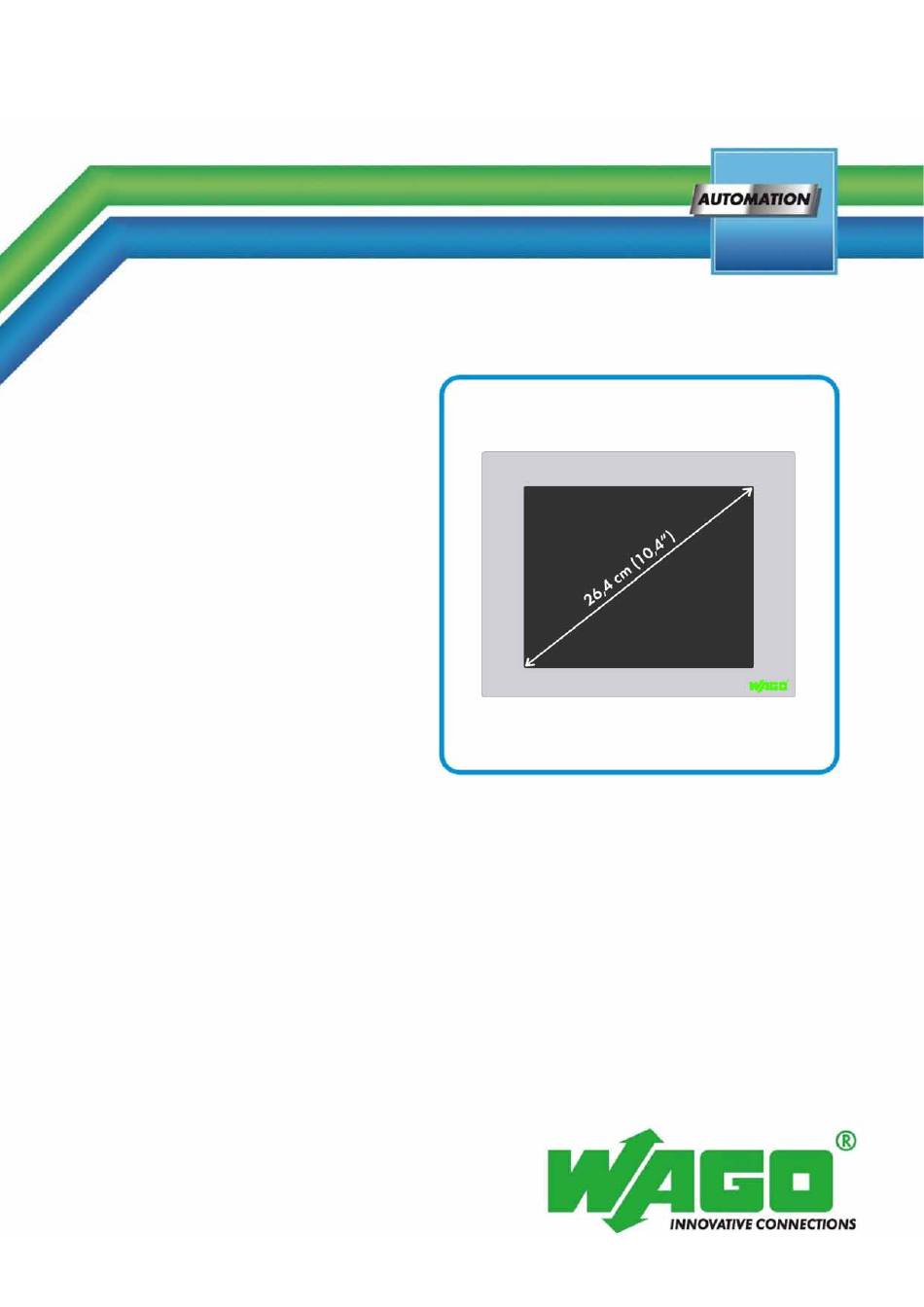

Pos: 2 /Dokumentation allgemein/Einband/Einband Handbuch - Deckblatt ohne Variantenfeld (Standard) @ 9\mod_1285229289866_0.doc @ 64941 @ @ 1
Manual
WAGO-PERSPECTO® 762
CP 104 VGA TV
762-3104/000-001
PERSPECTO® CP, Control Panel with CoDeSys
Target Visualisation
Version 1.0.1
Pos: 3 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Impressum für Standardhandbücher - allg. Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.doc @ 21060 @ @ 1
Advertisement
Chapters
Table of Contents
Related Manuals for WAGO WAGO-PERSPECTO 762-3104/000-001
Summary of Contents for WAGO WAGO-PERSPECTO 762-3104/000-001
- Page 1 Pos: 2 /Dokumentation allgemein/Einband/Einband Handbuch - Deckblatt ohne Variantenfeld (Standard) @ 9\mod_1285229289866_0.doc @ 64941 @ @ 1 Manual WAGO-PERSPECTO® 762 CP 104 VGA TV 762-3104/000-001 PERSPECTO® CP, Control Panel with CoDeSys Target Visualisation Version 1.0.1 Pos: 3 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Impressum für Standardhandbücher - allg. Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.doc @ 21060 @ @ 1...
- Page 2 WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV © 2012 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...
-
Page 3: Table Of Contents
WAGO-PERSPECTO® 762 Table of Contents 762-3104/000-001 CP 104 VGA TV Po s: 5 /Dokumentation allgemein/Verzeichnisse/Inhaltsverzeichnis - ohne Gliederung - und Verzeichnis @ 3\mod_1219151230875_21.doc @ 21063 @ @ 1 Table of Contents Notes about this Documentation..............5 Scope of Validity..................5 Copyright.................... - Page 4 6.2.2 Setting the IP Address ................ 32 6.2.3 IP Address ..................33 The WAGO Control Center ..............34 6.3.1 Starting the WAGO Control Center ........... 34 6.3.2 “General” Tab..................35 6.3.3 “Autostart Applications” Tab ............. 36 6.3.4 “Users” Tab ..................37 6.3.5...
-
Page 5: Notes About This Documentation
Reproduction, translation, electronic and phototechnical filing/archiving (e.g., photocopying) as well as any amendments require the written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany. Non-observance will involve the right to assert damage claims. Po s: 11.2 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.0.1... -
Page 6: Symbols
Notes about this Documentation WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 11.3 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Hinweis zur Dokumentation/Symbole - Überschrift 2 @ 13\mod_1351068042408_21.doc @ 105270 @ 2 @ 1 Symbols Po s: 11.4.1 /Alle Serien (Allgemeine Module)/Wichtige Erläuterungen/Sicherheits- und sonstige Hinweise/Gefahr/Gefahr: _Warnung vor Personenschäden allgemein_ - Erläuterung @ 13\mod_1343309450020_21.doc @ 101029 @ @ 1... - Page 7 WAGO-PERSPECTO® 762 Notes about this Documentation 762-3104/000-001 CP 104 VGA TV Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). s: 11.5 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.0.1...
-
Page 8: Number Notation
Notes about this Documentation WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 11.6 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Zahlensysteme @ 3\mod_1221059454015_21.doc @ 21711 @ 2 @ 1 Number Notation Table 1: Number Notation Number code Example Note Decimal Normal notation... -
Page 9: Important Notes
2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications that serve to increase the efficiency of technical progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents. -
Page 10: Use Of The 762 Series In Compliance With Underlying Provisions
The components to be supplied Ex Works, are equipped with hardware and software configurations, which meet the individual application requirements. WAGO Kontakttechnik GmbH & Co. KG will be exempted from any liability in case of changes in hardware or software as well as to non-compliant usage of components. -
Page 11: Safety Advice (Precautions)
WAGO-PERSPECTO® 762 Important Notes 762-3104/000-001 CP 104 VGA TV s: 14.10 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Wichtige Erläuterungen/Sicherheitshinweise - Überschrift 2 @ 6\mod_1260180299987_21.doc @ 46724 @ 2 @ 1 Safety Advice (Precautions) Po s: 14.11 /Alle Serien (Allgemeine Module)/Wichtige Erläuterungen/Sicherheits- und sonstige Hinweise/Einleitung Sicherheitshinweise Hardware @ 6\mod_1260180170493_21.doc @ 46720 @ @ 1... - Page 12 Important Notes WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV Do not use any contact spray! Do not use any contact spray. The spray may impair contact area functionality in connection with contamination. s: 14.13.5 /Alle Serien (Allgemeine Module)/Wichtige Erläuterungen/Sicherheits- und sonstige Hinweise/Achtung/Achtung: Elektrostatische Entladung vermeiden! @ 6\mod_1260181364729_21.doc @ 46759 @ @ 1...
-
Page 13: Device Description
Pos: 17 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Beschreibung/Gerätebeschreibung 0762-xxxx allgemein @ 9\mod_1294144990053_21.doc @ 67820 @ @ 1 The 762 Series panels are used to operate and visualize the controllers of the WAGO-I/O-SYSTEM. The integrated WAGO-AUTOMATION COCKPIT development environment is used to program the panels and controllers. -
Page 14: View
Device Description WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 20 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Gerätebeschreibung/Ansicht - Überschrift 2 @ 4\mod_1240984217343_21.doc @ 31958 @ 2 @ 1 View Po s: 21 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Ansicht/Frontansicht 0762-x104/xxxx-xxxx @ 9\mod_1294231211300_21.doc @ 67993 @ 3 @ 1 3.2.1... -
Page 15: Back View
WAGO-PERSPECTO® 762 Device Description 762-3104/000-001 CP 104 VGA TV s: 23 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Ansicht/Rückansicht 0762-3104/xxxx-xxxx @ 10\mod_1313591868511_21.doc @ 77198 @ 3 @ 1 3.2.2 Back view Figure 2: Back view Table 4: Legend acc. to figure “Back view” Designation Description... -
Page 16: Connectors
Device Description WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 25 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Gerätebeschreibung/Anschlüsse - Überschrift 2 @ 4\mod_1240984262656_21.doc @ 31961 @ 2 @ 1 Connectors Po s: 26.1 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Anschlüsse/Anschluss X1 – Versorgungsspannung @ 9\mod_1294223878130_21.doc @ 67929 @ 3 @ 1 3.3.1... -
Page 17: Figure 4: Connector X2 - Serial Interfaces Rs-232 And Rs-485/Rs422
WAGO-PERSPECTO® 762 Device Description 762-3104/000-001 CP 104 VGA TV s: 26.3 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Anschlüsse/Anschluss X2 - Serielle Schnittstellen RS-232 (COM 3) und RS-485/RS-422 (COM 2) @ 10\mod_1306214598744_21.doc @ 73090 @ 3 @ 1 3.3.2 X2 – Serial Interfaces RS-232 (COM 3) and RS-485/RS-422... -
Page 18: X3 - Serial Interface Rs-232 (Com 1)
Device Description WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 26.5 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Anschlüsse/Anschluss X3 - Serielle Schnittstelle RS-232 (COM 1) @ 9\mod_1294224260741_21.doc @ 67937 @ 3 @ 1 3.3.3 X3 – Serial Interface RS-232 (COM 1) The interface is designed as an RS-232 interface. It is DC coupled with the device ground. -
Page 19: X4 - Can 1 Interface
WAGO-PERSPECTO® 762 Device Description 762-3104/000-001 CP 104 VGA TV s: 26.7 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Anschlüsse/Anschluss X4 - CAN-Schnittstelle 1 @ 9\mod_1294224396001_21.doc @ 67941 @ 3 @ 1 3.3.4 X4 – CAN 1 Interface The interface is designed as a 9-pole D-SUB connector. The interface is used to communicate with CANopen-enabled modules. -
Page 20: X5 - Can 0 Interface
Device Description WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 26.9 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Anschlüsse/Anschluss X5 - CAN-Schnittstelle 0 @ 9\mod_1294224520981_21.doc @ 67945 @ 3 @ 1 3.3.5 X5 – CAN 0 Interface This interface is designed as an RJ45 connector. The interface is used to communicate with CANopen-enabled modules. -
Page 21: X6 - Ethernet Interface
WAGO-PERSPECTO® 762 Device Description 762-3104/000-001 CP 104 VGA TV s: 26.11 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Anschlüsse/Anschluss X6 - Ethernet-Schnittstelle 10/100 MBit @ 9\mod_1294225066866_21.doc @ 67949 @ 3 @ 1 3.3.6 X6 – Ethernet Interface An RJ45 jack is used for the Ethernet interface. -
Page 22: X8/X9 - Usb Interfaces
Device Description WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 26.13 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Anschlüsse/Anschluss X8/X9 - USB-Schnittstellen Typ A @ 9\mod_1294225243422_21.doc @ 67953 @ 3 @ 1 3.3.7 X8/X9 – USB Interfaces The interfaces are designed as USB host interfaces, type A. -
Page 23: Battery Case
WAGO-PERSPECTO® 762 Device Description 762-3104/000-001 CP 104 VGA TV s: 28 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Gerätebeschreibung/Batteriefach - Überschrift 2 @ 9\mod_1296045996505_21.doc @ 68960 @ 2 @ 1 Battery Case Po s: 29 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Batteriefach/Batteriefach CR1/2AA / Z3600A @ 9\mod_1294745081377_21.doc @ 68154 @ @ 1... -
Page 24: Slot For Memory Card
The panel 762-3104/000-001 is equipped with a Flash memory slot on the side for a CF card. It supports cards with a 2 GB maximum. Supported memory cards (item no. 758-879/000-000) are available from WAGO. Po s: 34 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.0.1... -
Page 25: Operating Elements
3.6.1 Service Button The service switch on the back of the device is used to call up the Windows CD desktop. The WAGO Control Center can be launched, for example, to configure the device. Figure 11: Service button Po s: 37 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.0.1... -
Page 26: Technical Data
Device Description WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 38 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Gerätebeschreibung/Technische Daten - Überschrift 2 @ 3\mod_1232967587687_21.doc @ 26924 @ 2 @ 1 Technical Data Po s: 39 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Technische Daten/Technische Daten 0762-3104/0000-0001 @ 9\mod_1294146866361_21.doc @ 67835 @ 333333 @ 1 3.7.1... -
Page 27: Hardware
WAGO-PERSPECTO® 762 Device Description 762-3104/000-001 CP 104 VGA TV 3.7.4 Hardware Table 15: Technical data hardware Processor 32-bit XScale 520 MHz RAM / Flash / SRAM 64 MB / 32 MB / 1 MB Memory expansion CF card (max. 2 GB) 3.7.5... -
Page 28: Approvals
Device Description WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 41 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Gerätebeschreibung/Zulassungen - Überschrift 2 @ 3\mod_1224055364109_21.doc @ 24030 @ 2 @ 1 Approvals Po s: 42 /Serie 762 (PERSPECTO)/Gerätebeschreibung/Zulassungen/Zulassungen Panel 762-xxxx/xxxx-xxxx Allgemein, ohne Variantenangabe @ 9\mod_1294226972032_21.doc @ 67917 @ @ 1... -
Page 29: Mounting
The operating temperature ranges specified in the technical data apply to the recommended mounting position. If the panel is mounted in a position different than recommended, cooling can be affected. Contact WAGO Service for more information. The PERSPECTO Series panels are used in the panel cutout provided and bolted down with the included clamping elements from behind (note the following installation diagram). -
Page 30: Connect Devices
Connect Devices WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 53 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Anschließen/Geräte anschließen - Überschrift 1 @ 3\mod_1234172889468_21.doc @ 27460 @ 1 @ 1 Connect Devices Po s: 54 /Serie 762 (PERSPECTO)/Anschließen/Geräte anschließen 0762-1xxx, 0762-3xxx/xxxx-xxxx RS-232/RS-845/RS-422 @ 9\mod_1294149028298_21.doc @ 67844 @ @ 1 The RS-232 interface is used to program and diagnose the devices. -
Page 31: Commissioning
The service switch on the back of the device can be used to launch the Windows CE desktop at any time. The WAGO Control Center can be used to change the start behavior of the device. Time window for launching the Windows CE desktop! The WAGO Control Center can be used to set the time window for launching the Windows CE desktop after the boot and self-test phase. -
Page 32: Ip Address Of The Device
Therefore, a TCP/IP connection is required. An IP address must be assigned to the device after switching it on for the first time. The WAGO Control Center installed on the device is used to assign the IP address by default (observe "Setting the IP Address" section). -
Page 33: Ip Address
WAGO-PERSPECTO® 762 Commissioning 762-3104/000-001 CP 104 VGA TV Figure 13: IP address Po s: 59.5 /Serie 762 (PERSPECTO)/In Betrieb nehmen/IP-Adresse/IP-Adresse @ 9\mod_1294213725358_21.doc @ 67869 @ 3 @ 1 6.2.3 IP Address When using a crossover cable to connect between the panel and configuring PC directly, it is recommended that both devices have fixed IP addresses with an open address in the range 192.168.1.xxx. -
Page 34: The Wago Control Center
Autostart programs, uses, FTP/HTTP and RAS access can be made. General device settings can also be checked and modified. Po s: 61.2 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Starten des WAGO Control Centers @ 9\mod_1294215574529_21.doc @ 67875 @ 3 @ 1 6.3.1... -
Page 35: General" Tab
WAGO-PERSPECTO® 762 Commissioning 762-3104/000-001 CP 104 VGA TV s: 61.4 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Registerkarte General @ 9\mod_1294216222373_21.doc @ 67888 @ 3 @ 1 6.3.2 “General” Tab Figure 14: “General” tab Device Information Information about the device is found here. This information is important, for example, for support cases. -
Page 36: Autostart Applications" Tab
Commissioning WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 61.6 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Registerkarte Autostart Applications - 0762-3xxx/0000-000x CPTV @ 9\mod_1294222787415_21.doc @ 67920 @ 3 @ 1 6.3.3 “Autostart Applications” Tab You can enter programs here that should launch automatically after booting. The target-visu runtime, the autoscan function and the WAGO Control Center are entered here by default. -
Page 37: Users" Tab
WAGO-PERSPECTO® 762 Commissioning 762-3104/000-001 CP 104 VGA TV s: 61.8 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Registerkarte Users @ 9\mod_1294223195152_21.doc @ 67923 @ 3 @ 1 6.3.4 “Users” Tab You can create FTP users, grant rights and assign directories. The menu is generally self-explanatory. -
Page 38: Ftp" Tab
Commissioning WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 61.10 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Registerkarte FTP @ 9\mod_1294223722918_21.doc @ 67926 @ 3 @ 1 6.3.5 “FTP” Tab You can configure the FTP server of the device here. More information about creating users is available in the "Users Tab" section. -
Page 39: Http" Tab
WAGO-PERSPECTO® 762 Commissioning 762-3104/000-001 CP 104 VGA TV s: 61.12 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Registerkarte HTTP @ 9\mod_1294225628954_21.doc @ 67957 @ 3 @ 1 6.3.6 “HTTP” Tab You can configure the Web server of the device here. Figure 18: “HTTP” tab Application example: An \httptest directory with the /test alias was created on the flash disk. -
Page 40: Ras" Tab
Commissioning WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 61.14 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Registerkarte RAS @ 9\mod_1294225745496_21.doc @ 67960 @ 3 @ 1 6.3.7 “RAS” Tab The Remote Access Service (RAS) is a service for remote access to a Windows CE device. -
Page 41: Backup/Restore" Tab
WAGO-PERSPECTO® 762 Commissioning 762-3104/000-001 CP 104 VGA TV s: 61.16 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Registerkarte Backup/Restore - 0762-3xxx/0000-000x @ 9\mod_1294225990268_21.doc @ 67963 @ 3 @ 1 6.3.8 “Backup/Restore” Tab You can save and restore the device configuration and project data, for example, on a memory card. -
Page 42: Figure 20: "Backup/Restore" Tab
Commissioning WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV Figure 20: “Backup/Restore” tab The Backup button is used to save the parameters defined in the backup_restore.cfg and entries on the target data carrier. The Restore button is used to restore the parameters defined in the backup_restore.cfg and entries on the device. -
Page 43: Advanced" Tab
WAGO-PERSPECTO® 762 Commissioning 762-3104/000-001 CP 104 VGA TV s: 61.18 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Registerkarte Advanced - 0762-3xxx/0000-000x CPTV @ 9\mod_1294226255805_21.doc @ 67966 @ 3 @ 1 6.3.9 “Advanced” Tab You can perform advanced settings for the device. The menu is generally self- explanatory. -
Page 44: Saving The Configuration
Commissioning WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 61.20 /Serie 762 (PERSPECTO)/In Betrieb nehmen/WAGO Control Center/Speichern der Konfiguration @ 9\mod_1294226632900_21.doc @ 67969 @ 3 @ 1 6.3.10 Saving the Configuration After configuring the panel, the settings must be permanently saved in the registry. -
Page 45: Target-Visu
WAGO-PERSPECTO® 762 Commissioning 762-3104/000-001 CP 104 VGA TV Po s: 63 /Serie 762 (PERSPECTO)/In Betrieb nehmen/Target Visu @ 9\mod_1294227049837_21.doc @ 67972 @ 2 @ 1 Target-Visu The following status window appears after starting the Target-Visu panel: Figure 22: PLCWinCE status window This window displays the loaded CoDeSys programs with project details. -
Page 46: Service
Service WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 65 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Service - Überschrift 1 @ 4\mod_1241771948421_21.doc @ 32830 @ 1 @ 1 Service Po s: 66 /Serie 762 (PERSPECTO)/Service/Batterie wechseln @ 9\mod_1294738564312_21.doc @ 68141 @ 2 @ 1... -
Page 47: List Of Figures
WAGO-PERSPECTO® 762 List of Figures 762-3104/000-001 CP 104 VGA TV Po s: 69 /Dokumentation allgemein/Verzeichnisse/Abbildungsverzeichnis - ohne Gliederung - und Verzeichnis @ 3\mod_1219222916765_21.doc @ 21080 @ @ 1 List of Figures Figure 1: Front view ....................14 Figure 2: Back view ....................15 Figure 3: Connector X1 –... -
Page 48: List Of Tables
List of Tables WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV s: 71 /Dokumentation allgemein/Verzeichnisse/Tabellenverzeichnis - ohne Gliederung - und Verzeichnis @ 3\mod_1219222958703_21.doc @ 21084 @ @ 1 List of Tables Table 1: Number Notation..................8 Table 2: Font Conventions ..................8 Table 3: Legend acc. - Page 49 WAGO-PERSPECTO® 762 762-3104/000-001 CP 104 VGA TV Po s: 73 /Dokumentation allgemein/Einband/Einband Handbuch - Leerseite für gerade Seitenzahl @ 3\mod_1219230851078_0.doc @ 21123 @ @ 1 Manual Version 1.0.1...
