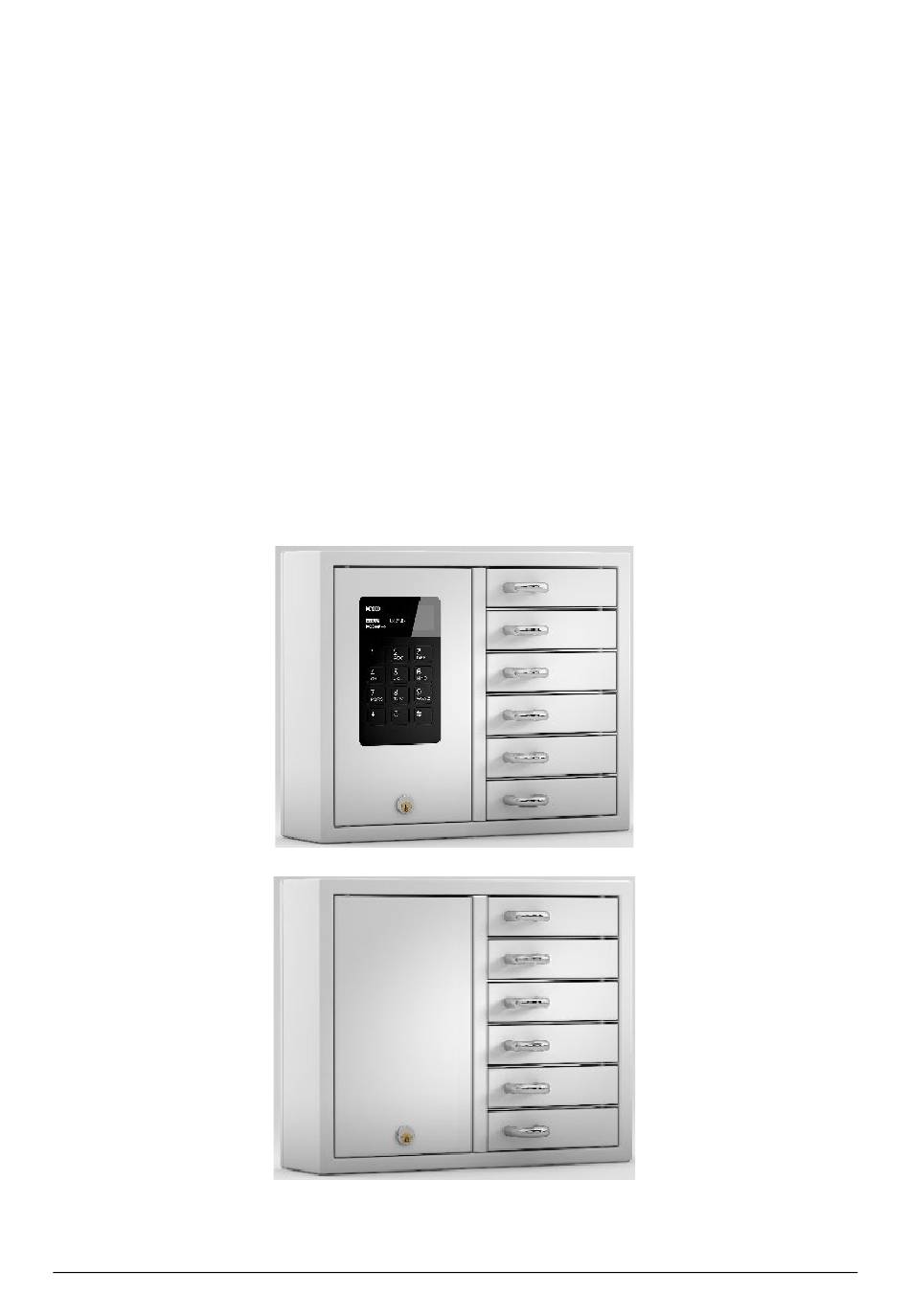

USER MANUAL
Keybox
Safe Art.-Code 9201-00018 & 9201-00019
Extension Art.-Code 9201-00020
Seite 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Keybox 9000 Series

  • Page 1 USER MANUAL Keybox Safe Art.-Code 9201-00018 & 9201-00019 Extension Art.-Code 9201-00020 Seite 1...
  • Page 2: Table Of Contents

    Content 1. General Information 2. Testing 3. Connection of 230V power cable 4. Wall mounting 5. Codes set on delivery 6. User menus 7. Display 8. Programming 8.1 Codes 8.2 Analysis 8.3 Load settings 8.4 Save log 8.5 Language 8.6 System 9.
  • Page 3: General Information

    1. General information The KeyBox 9000 has six key compartments – and each user opens one or several compartments with their personal PIN code. The KeyBox can be delivered witha keypad and a display for simple programming (art.code 9201-00019). The KeyBox can be expanded with a maximum of 15 expansion cabinets from the KeyBox Expansion series.
  • Page 4: Codes Set On Delivery

    5. Codes set on delivery Service code Service code All KeyBox 9000 S are supplied with a service code set to 301042. Only persons with access to the service code can enter new codes, delete codes or change the settings for KeyBox.
  • Page 5: Display

    5 Language 0 Back 5 Finnish 1 English 6 Spanish 2 Swedish 7 France 3 German 8 Italian 4 Danish 6 System 0 Back 5 Twin code 1 Clock 6 Alarm 2 Date 7 Remote 3 Solenoid time 8 Door sequence 4 Lock out time 9 Factory reset 7.
  • Page 6: Programming

    8. Programming Programming is based entirely on the Main Menu and Function Menu. All programming must start from the programming position and can only be executed by those who have access to the service code. To enter the programming position the operator has to input the relevant service code.
  • Page 7 NB! The service code is the code you use to access the programming position. This is the most important code to enable operation of KeyBox. If this code is forgotten you have to reset KeyBox, then all previous programming will be deleted.
  • Page 8: Analysis

    Enter code (1-7 characters) and press # • This code has the same function as in the section before. You can then have two different codes to use to program KeyBox. Alle Codes löschen • Enter current service code and press # Enter 1 = CODES •...
  • Page 9: Load Settings

    Select the time from which you want to have analysis. Press # Press 4 for END TIME Select the time to which you want to have analysis. Press # Press 5 for NAME Select the name for which you want to have analysis. Press # Press 6 for LOCKER Select the door for which you want to have analysis.
  • Page 10: System

    8.6 System Select option 6 in the main menu to access SYSTEM to change settings in your KeyBox. 1 - Clock Set the time and press # 2 - Date Set the date and press # 3 - Solenoid time Set how many seconds the solenoid is to be active when open a door.
  • Page 11: Technical Data

    Press # to start. All doors in the system will now open and close after each other. TIP: It is a good idea to use this function when new cabinets are installed in the system. All doors are then tested and you know that the system is correctly installed.
  • Page 12: Pcb Layout

    10. PCB layout Seite 12...
  • Page 13: Extensions

    11. Extensions If there is a requirement for a larger number of keys to be stored, the system can be expanded with a Key- Box Extension. A total of 15 extension cabinets can be connected to a main cabinet. 12. Technical data extension Lock: Electron magnet 12V, 1A Material:...
  • Page 14: Pcb Layout Extensions

    13. PCB layout extension 14. Service and Support EICHNER Organisation GmbH & Co. KG Postfach 15 38, D-96405 Coburg Uferstraße 28, D-96450 Coburg Telefon: 0 95 61 / 27 07 - 0 Telefax: 0 95 61 / 27 07 - 29, - 27 E-Mail: info@eichner-org.de Internet: www.eichner-org.com Seite 14...
