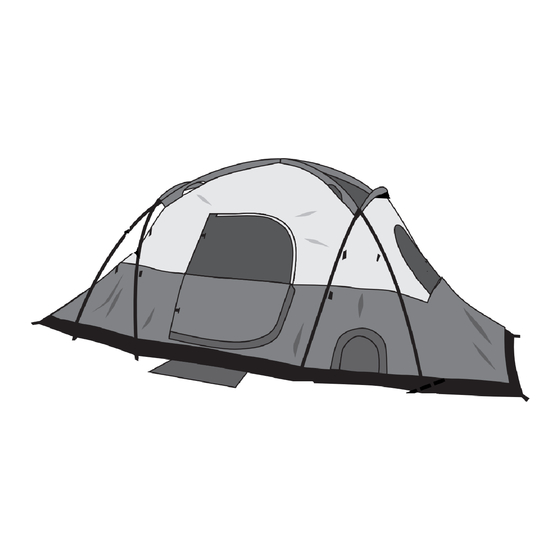

Coleman Pegasus 9161-171C Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
position the end of tent into the wind.

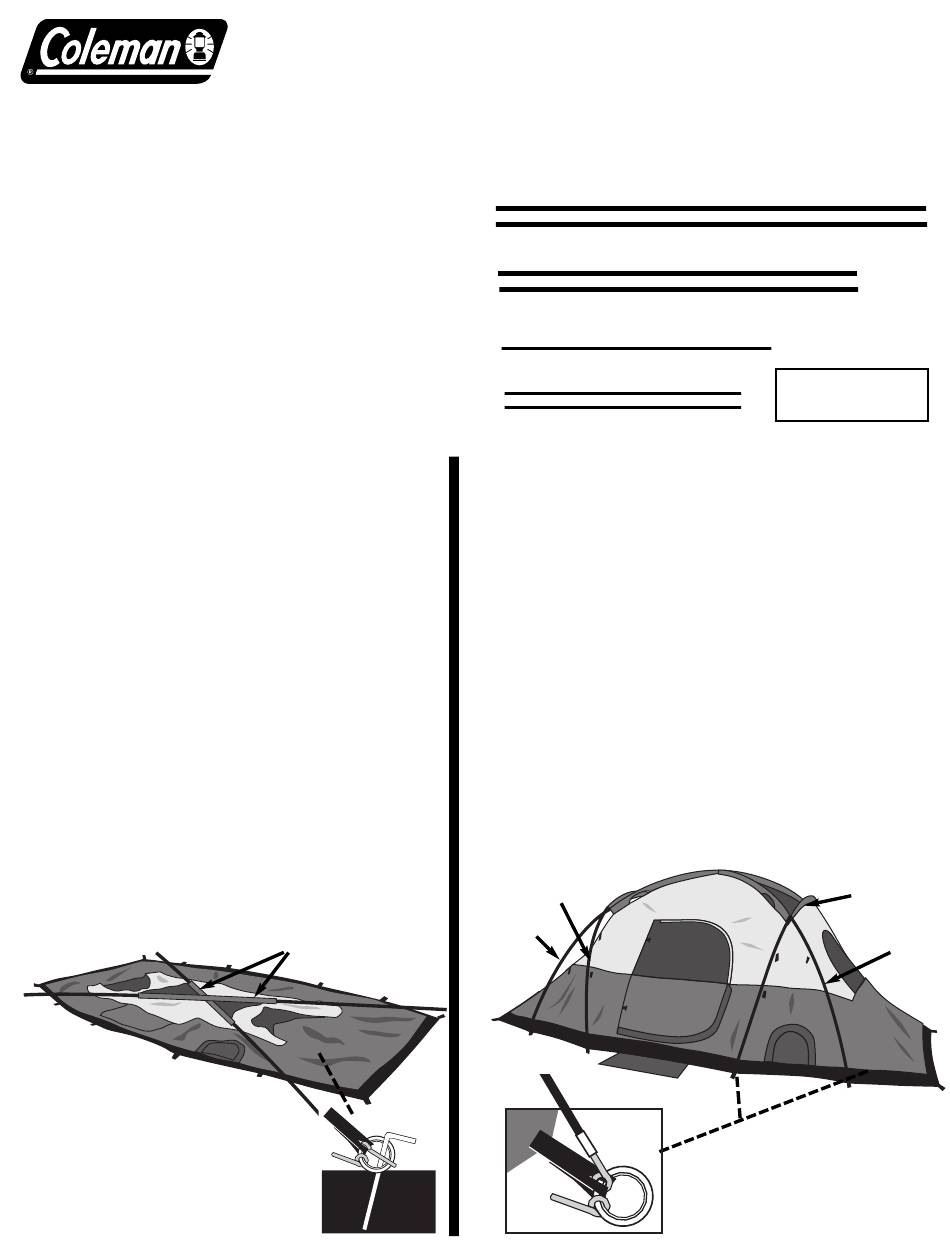

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with front
door facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent corners only, using
the stake loops. Keep the floor taut.
(illus. 2)(Intermediate loops will be
staked later.)
– Assemble main tent poles by
interlocking shock-corded poles.
(two poles)
– Insert the main poles into pole
sleeves.The poles should cross
forming an "X" in the middle of tent.
(illus. 1)
illus. 1
through stake loop
Instructions apply to Part Number 9161-171C
POLE ASSEMBLY PARTS
(2) Main Tent Poles
(2) Side Poles
(1) Rainfly Main Pole Part No. 9161-1071
(2) Rainfly Side Poles Part No. 9161-1081
Assembled Main poles
inserted through
pole sleeves
illus. 2
Tent stake
Pegasus
Part No. 9161-1051
(Black)
Part No. 9161-1061
(Gray)
2

Connect Frame to Tent

– Insert pin near tent corner into the end of
main tent pole. (illus. 3, illus. 4)
– Go to opposite end of pole and gradually
apply pressure to the pole forming an arch
until you are able to insert the pin into the
pole end. Repeat for second main pole.
(illus. 3, illus. 4)
– Assemble gray side shock-corded poles and
insert through side pole sleeves. (illus. 4)
– Insert one pin into the end of side tent pole
at tent center. (illus. 3, illus. 4)
– At the opposite pole end gradually apply
pressure to the pole forming an arch until
you are able to insert the pin into the pole
end. Repeat for second side pole.(illus. 4)
Side Pole
Main pole
™
17'x10'
Rainfly Part No.
9161-1091
Side pole
Tent center
frame set-up
illus. 3
Insert pin into pole end
sleeve
Main pole
illus. 4
