BLEMO ER12 User Manual

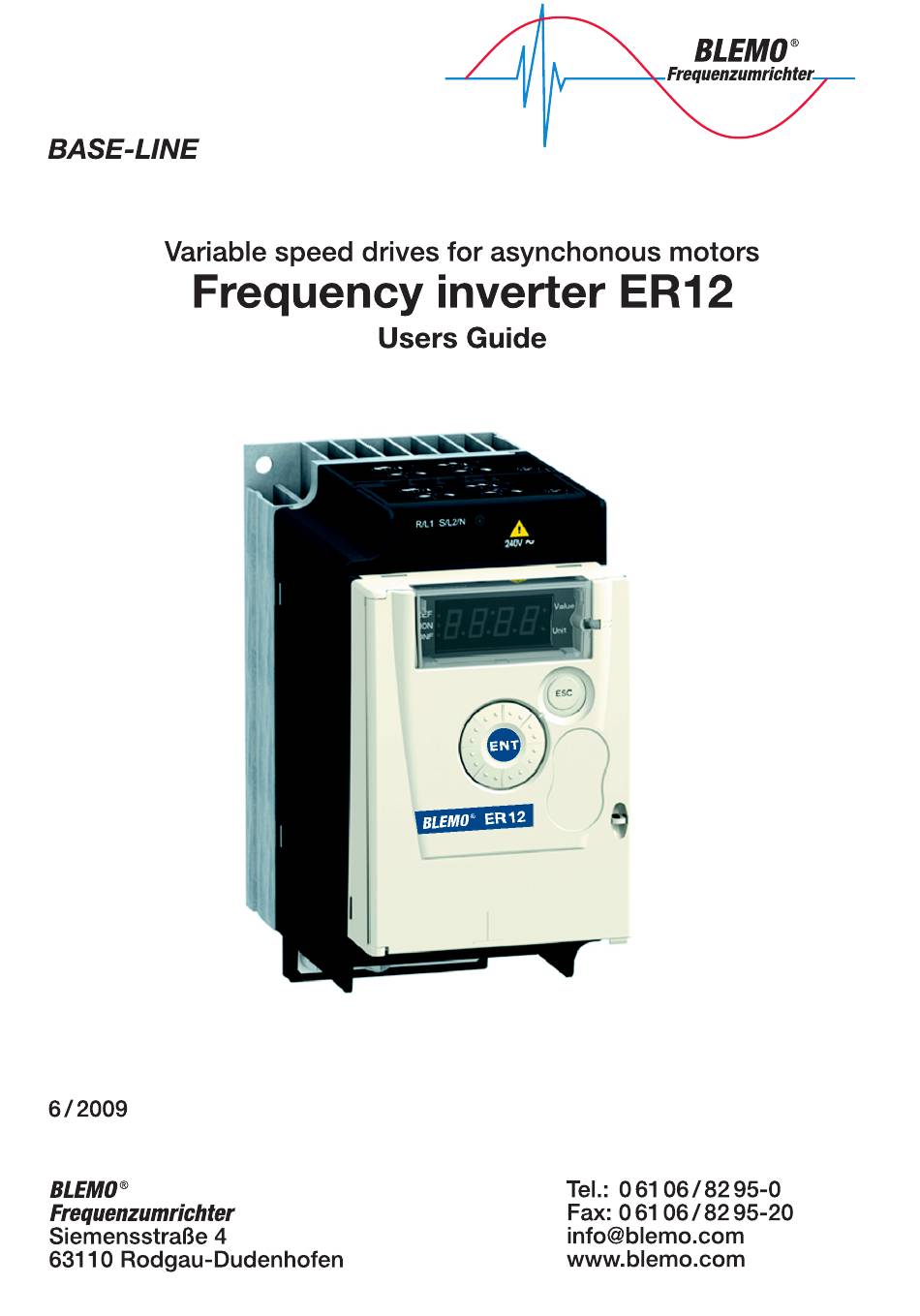

Base-line, variable speed drives for asynchronous motors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER12 and is the answer not in the manual?

Questions and answers

Related Manuals for BLEMO ER12

Summary of Contents for BLEMO ER12

  • Page 2: Table Of Contents

    Organization tree ___________________________________________________________________________________________ 100 Parameter index ____________________________________________________________________________________________ 101 Energy savings Speed control process regulating enables significant energy savings, particulary with pump and fan applications. Furthermore some ER12 functions enable to henance these savings: Motor control type page 55, Sleep/wake page and PID regulation...

  • Page 3: Important Information

    The word "drive" as used in this manual refers to the controller portion of the adjustable speed drive as defined by NEC. Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by BLEMO for any consequences arising out of the use of this product. © 2009 BLEMO. All Rights Reserved.

  • Page 4: Before You Begin

    DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH • Read and understand this manual before installing or operating the ER12 drive. Installation, adjustment, repair, and maintenance must be performed by qualified personnel. • The user is responsible for compliance with all international and national electrical code requirements with respect to grounding of all equipment.
  • Page 5 Before you begin WARNING LOSS OF CONTROL • The designer of any control scheme must - consider the potential failure modes of control paths and, for certain critical control functions, - provide a means to achieve a safe state during and after a path failure. Examples of critical control functions are emergency stop and overtravel stop.

  • Page 6: Documentation Structure

    Documentation structure The following ER12 technical documents are available on the BLEMO website (www.blemo.com) as well as on DVD-ROM. User manual This manual describes how to install, commission, operate and program the drive. Simplified manual This manual is a simplified version of the user manual.

  • Page 7: Steps For Setting Up (Also Refer To Quick Start)

    Check that the part number printed on the label is the same as that on the purchase order. • Remove the ER12 from its packaging and check that it has not been damaged in transit. 2. Check the line voltage •...

  • Page 8: Setup - Preliminary Recommendations

    DANGER UNINTENDED EQUIPMENT OPERATION • Read and understand this manual before installing or operating the ER12 drive. • Any changes made to the parameter settings must be performed by qualified personnel. • Ensure that all logic inputs are inactive to help prevent an accidental startup when modifying parameters.

  • Page 9: Drive Ratings

    100 V at 120 V 60 s current (1) 0.18 0.25 ER12-0.18KU 0.37 11.4 ER12-0.37KU or BU 0.75 18.9 15.7 ER12-0.75KU Single-phase supply voltage: 200…240 V 50/60 Hz For three Phase Output 200/240 V motors Motor Line supply (input)

  • Page 10: Dimensions And Weights

    Dimensions and weights Ø Weight ER12- screws (lb) 0.18KU 102.2 2 x 5 0.18K (1.5) 0.18/3K 0.37KU/BU 121.2 2 x 5 0.37K/B (1.8) (102.2) 0.37/3K/B 0.55K/B 131.2 2 x 5 0.75K/B (1.8) (102.2) 0.75/3K/B Ø Weight ER12- screws (lb) 156.2 2 x 5 0.75KU...

  • Page 11: Mounting

    Mounting Mounting and temperature conditions Install the unit vertically, at ± 10˚. Do not place it close to heating elements. Leave sufficient free space to ensure that the air required for cooling purposes can circulate from the bottom to the top of the unit.
  • Page 12 3 Measure the voltage of the DC bus between the PA/+ and PC/– terminals to ensure that the voltage is less than 42 Vdc. 4 If the DC bus capacitors do not discharge completely, contact your local BLEMO representative. Do not repair or operate the drive.
  • Page 13 Mounting Installing the EMC plates EMC mounting plate: to be ordered separately Mount the EMC mounting plate to the holes in the ER12 using the 2 screws supplied, as shown in the drawings below. Size 1: ER12-0.18KU, ER12-0.18KU/BU, ER12-0.18K, ER2-0.37K/B to ER12-0.75K/B ER12-0.18/3K to ER12-0.75/3K/B...

  • Page 14: Wiring

    Before wiring power terminals, connect the ground terminal to the grounding screws located below the output terminals (see Access to the motor terminals if you use ring terminals, page 20. The drive must be grounded in accordance with the applicable safety standards. ER12 K/B drives have an internal EMC filter, and as such the leakage current is over 3.5 mA.
  • Page 15 Wiring WARNING RISK OF DRIVE DESTRUCTION • The drive will be damaged if input line voltage is applied to the output terminals (U/T1,V/T2,W/T3). • Check the power connections before energizing the drive. • If replacing another drive, verify that all wiring connections to the drive comply with wiring instructions in this manual. Failure to follow these instructions can result in death, serious injury or equipment damage.
  • Page 16 Wiring General wiring diagram ER12 KU/BU Single-phase supply 100...120 V -... ER12 -... Single-phase supply 200...240 V Three-phase supply 200...240 V ER12 3K/B -... Source 3-phase motor (1) R1 relay contacts, for remote indication of the drive status. (2) Internal + 24 VDC. If an external source is used (+ 30 VDC maximum), connect the 0 V of the source to the COM terminal, and do not use the + 24 VDC terminal on the drive.
  • Page 17 Wiring Wiring labels ER12-...KU/BU Input 120 V Output 240 V ER12-...K/B Input 240 V Output 240 V ER12-...3K/B Input 240 V Output 240 V...

  • Page 18: Power Terminals

    Use pliers to remove snap-off of the wiring trap. Failure to follow these instructions can result in injury or equipment damage. Access to the line supply terminals to connect ring terminals Wiring trap A) IT jumper on ER12-..K/B B) Grounding screws located below the output terminals.
  • Page 19 Power terminals Access to the motor terminals if you use ring terminals Characteristics and functions of power terminals Terminal Function For ER12 Ground terminal All ratings R/L1 - S/L2/N Power supply 1-phase 100…120 V R/L1 - S/L2/N 1-phase 200…240 V R/L1 - S/L2 - T/L3 3-phase 200…240 V...
  • Page 20 Power terminals Arrangement of the power terminals Applicable wire Recommended Tightening size (1) wire size (2) torque (3) ER12 (AWG) (AWG) N·m (lb.in) ER12-0.18KU ER12-0.37KU/BU ER12-0.18K 2 to 3.5 0.8 to 1 (14 to 12) (14) (7.1 to 8.9) ER12-0.75K/B ER12-0.18/3K...

  • Page 21: Control Terminals

    0.6 x 3.5. +24V +24 V supply provided by the drive Connection for Software software, Modbus network or remote display. RJ45 ER12 Control terminals Applicable wire size (1) Tightening torque (2) (AWG) N·m (lb.in) 0.75 to 1.5 (18 to 16) R1A, R1B, R1C 0.5 to 0.6 (4.4 to 5.3)
  • Page 22 Control terminals Characteristics and functions of the control terminals Terminal Function Electrical characteristics NO contact of the relay Min. switching capacity: • 5 mA for 24 V DC Maximum switching capacity: NC contact of the relay • 2 A for 250 V AC and for 30 V DC on inductive load (cos ϕ...
  • Page 23 Control terminals Control connection diagrams Logic inputs type parameter page is used to adapt the operation of the logic inputs to the technology of the programmable controller outputs. • Set the parameter to for Source operation. • Set the parameter to for Sink operation.
  • Page 24 Wiring Electromagnetic compatibility (EMC) IMPORTANT: The high frequency equipotential ground connection between the drive, motor, and cable shielding does not eliminate the need to connect the ground (PE) conductors (green-yellow) to the appropriate terminals on each unit. See Wiring recommendations on page 15.
  • Page 25 Wiring Installation diagram (example) 1. Non-shielded wires for the output of the status relay contacts. 2. Sheet steel grounded casing not supplied with the drive, to be mounted as indicated on the diagram. 3. PA and PC terminals, to the braking module DC bus 4.
  • Page 26 Internal EMC filter on ER12-...K/B All ER12-...K/B drives have a built-in EMC filter. As a result they exhibit leakage current to ground. If the leakage current creates compatibility problems with your installation (residual current device or other), then you can reduce the leakage current by opening the IT jumper as shown below.

  • Page 27: Check List

    • Wire the control terminals as required, see Control terminals on page 22. Separate the power cable and the control cable according to the EMC compatibility rules on page 25. • The ER12-...K/B range integrates an EMC filter. The leakage current can be reduced using the IT jumper as explained in the paragraph Internal EMC filter on ER12-...K/B on page 27.

  • Page 28: Factory Configuration

    Factory configuration Drive factory settings The ER12 is factory-set for the most common operating conditions (motor rating according to drive rating): • Display: drive ready (rdY) motor stopped or motor frequency reference while running • Automatic adaptation of the deceleration ramp in the event of overvoltage on braking.

  • Page 29: Basic Functions

    Basic functions Status relay, unlocking The R1 status relay is energized when the drive power is applied with no fault detected. It de-energizes in the event of a detected fault or when the drive power is removed. The drive is reset after a detected fault: •...

  • Page 30: Programming

    (c) If illuminated, indicates that a unit is displayed, for example, AMP is displayed for "Amps" WARNING LOSS OF CONTROL The stop buttons on ER12 drive and on the remote keypad display can be programmed to not have priority. To retain stop key priority, Stop key priority page to YES.
  • Page 31 Programming Remote control Remote operation and programming by HMI is possible using the optional remote HMI part. The dimensions are 70 mm (2.76 in) x 50 mm (2.76 in). Important: when connected, the remote control shows an exact copy of the drive display, it is totally interactive with the embedded keypad.
  • Page 32 (see page 43), by selecting which menus and parameters will be hidden or accessible for the user. Once the configuration COnF has been adjusted, it can be downloaded to the ER12 by connecting the drive to the computer or by downloading the configuration through the multiloader or simpleloader.

  • Page 33: Structure Of Parameter Tables

    Structure of parameter tables The modes, sections, menus, sub-menus and parameter tables description is organized as below. Note: Parameters containing the sign in the code column can be modified with the drive running or stopped Example: Configuration Mode - Complete menu (FULL) Code Name / Description Adjustment...

  • Page 34: Function Compatibility Table

    Function compatibility table Preset speed (page 68) ● PI regulator (page 70) ● Jog operation (page 66) Auto DC injection (page 65) Catch on the fly (page 78) Fast stop (page 64) Freewheel (page 64) Incompatible functions Compatible functions Not applicable Priority function (function which can be active at the same time) The function indicated by the arrow has priority over the other.

  • Page 35: Reference Mode Ref

    Reference Mode rEF Use the reference mode to monitor and if local control is enabled (Reference channel 1 page set to AIU1) adjust the actual reference value by rotating the jog dial. When local control is enabled, the jog dial on the HMI acts as a potentiometer to change the reference value up and down within the limits preset by other parameters (LSP or HSP).

  • Page 36: Monitoring Mode Mon

    Monitoring mode MOn When the drive is running, the value displayed is that of one of the monitoring parameters. The default value displayed is the motor Output frequency page 38. While the value of the desired new monitoring parameter is being displayed, press a second time on the jog dial button to display the units. Organization tree values units...
  • Page 37 Monitoring mode MOn Code Name/Description Unit External reference value • External keypad or local force mode configured. Forced local reference page set to and and FLOC Forced local assignment page different to nO. Displays the speed reference coming from the remote keypad. This value is not visible in factory setting. Analog input virtual AIU1 •...
  • Page 38 Monitoring mode MOn Code Name/Description Product status StAt • This parameter shows the state of the drive and motor. • Drive ready • Drive running, the last six segments to the right of the code also indicate direction and speed. •...
  • Page 39 Monitoring mode MOn Code Name/Description Unit Maintenance menu MAI- Parameters of MAI menu can’t be selected for monitoring State of logic inputs LI1 to LI4 LIS1 • Can be used to visualize the state of the 4 logic inputs LI. State 1 State 0 LI2 LI3...
  • Page 40 Monitoring mode MOn Code Name/Description Unit Maintenance menu MAI- (continued) Run elapsed time display rtHI • 0.01 Total time the motor has been powered up. Range: 0 to 65535 hours. Value displayed is as described in the table below. Parameter resettable by services Hours Display 0.01...
  • Page 41 Code disabled • Code activated Range 2 to 9999 If you have lost your code, please contact BLEMO. This parameter is used to restrict access to the drive. To lock the drive, go to the HMI Password parameter, enter a code within the above range.

  • Page 42: Configuration Mode Conf

    Configuration Mode ConF Configuration mode includes 3 parts: 1. MyMenu includes 11 factory set parameters (among them 9 visible by default). Up to 25 parameters are available for user customization using software. 2. store/recall parameter set: these 2 functions are used to store and recall customer settings. 3.

  • Page 43: Configuration Mode - Mymenu

    Configuration Mode - MyMenu Code Name/Description Adjustment range Factory setting External reference value • -400 Hz to 400 Hz This parameter allows to modify the frequency reference with the jog dial. External keypad or local force mode configured. Forced local reference page set to and and...
  • Page 44 (Integrated display with jog dial). LI assignment information It is possible with ER12 to use multi assignment function (ie: on the same LI). It is also possible on some functions to assign LIH (high) or LIl (low), which means that the assigned function will be activated to high (LIH)

  • Page 45: Configuration Mode - Complete Menu (Full)

    PID regulation. Activate PID function, dedicated AI1 for feedback and AIU1 for reference. • Speed. Allocate LI to preset speed (same allocation as ER12) which provides a means of speeding up the configuration of functions for a specific field of application.
  • Page 46 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Input Output menu I_O- FLt- COM- Type of control • • 2-wire control (see page 50) The open or closed state of the input controls the running or stopping. Example of "source"...
  • Page 47 Configuration Mode - Complete menu (FULL) I-O- drC- 2 wire control diagrams (see page 50) CtL- Drive powered and ready FUN- FLt- 2-Wire with transient detection COM- Drive ready to start Speed Forward Reverse (1) Forward Reverse (1) 2-Wire without transient detection Speed Forward Reverse (1)
  • Page 48 Configuration Mode - Complete menu (FULL) I-O- drC- 3-wire control diagram (see page 50) CtL- F: motor frequency FUN- Reference FLt- COM- LI Run Enable LI Forward LI Reverse Drive ready to respond to commands...
  • Page 49 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Input Output menu I_O- (continued) FLt- COM- 2 wire type control • DANGER UNINTENDED EQUIPMENT OPERATION Check that the modification of the 2 wire type control is compatible with the wiring diagram used. Failure to follow these instructions will result in death or serious injury.
  • Page 50 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Input Output menu I_O- (continued) FLt- AI1 configuration menu AI1- COM- • AI1 type AI1t This function makes interface from the analog input signal to a drive internal value. •...
  • Page 51 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Input Output menu I_O- (continued) FLt- LO1 Configuration menu (LO1-) LO1- COM- LO1 assignment • Allows to adapt the logic output to the application need Same values as r1.
  • Page 52 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Input Output menu I_O- (continued) FLt- Application underload time delay • 0 to 100 s COM- can be adjusted between 0 and 100 s. If the motor current undershoots the underload threshold for longer than the adjustable time delay ULt, the drive will stop running and display...
  • Page 53 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Input Output menu I_O- (continued) FLt- AO1 configuration menu AO1- COM- AO1 assignment • This parameter is used to set the value of an analog output. •...
  • Page 54 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment Factory setting range FUN- Motor control menu drC- FLt- COM- Standard motor frequency • 50 Hz See page 44. NCV -5 to According to drive rating Rated motor power •...
  • Page 55 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Motor control menu drC- (continued) FLt- IR compensation (law U/F) • 25 to 200% 100% COM- Used to optimize torque at very low speed, or to adapt to special cases (for example: for motors connected in parallel, decrease IR compensation (law U/F) ).
  • Page 56 It is restored to its original value when the temperature returns to normal. CAUTION RISK OF DAMAGE TO THE DRIVE On ER12...K ratings, if the filters are disconnected, the drive’s switching frequency must not exceed 4 kHz. Failure to follow these instructions can result in equipment damage. Switching frequency type •...
  • Page 57 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Motor control menu drC- (continued) FLt- Auto-tuning • COM- DANGER HAZARD OF ELECTRIC SHOCK OR ARC FLASH • During auto-tuning, the motor operates at rated current. •...
  • Page 58 Configuration Mode - Complete menu (FULL) I-O- drC- Control menu CtL- Control channel diagram FUN- FLt- COM- Stop priority reg. Preset speed...
  • Page 59 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Control menu CtL- FLt- Reference channel 1 • COM- • Terminal • Remote display • Modbus • Integrated display with Jog dial AIUI This parameter is already included in "my menu" section, page 44. -400 Hz to 400 Hz External reference value •...
  • Page 60 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Control menu CtL- (continued) FLt- Command channel 1 • COM- This parameter allows selection of the command channel. • Terminals • Local • Remote display •...
  • Page 61 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- FLt- Ramp menu rPt- COM- 0.0 s to 999.9 s Acceleration • 3.0 s Acceleration time between 0 Hz and the Rated motor frequency page 55.
  • Page 62 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- (continued) FLt- Ramp menu rPt- COM- (continued) • Acceleration 2 0.0 to 999.9 s 5.0 s Visible only if Ramp switching commutation page is not set to nO.
  • Page 63 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Function menu FUn- (continued) FLt- Stop configuration menu Stt- COM- • Type of stop Stop mode on disappearance of the run command and appearance of a stop command •...
  • Page 64 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- (continued) FLt- Auto DC injection menu AdC- COM- • Automatic DC injection • Function inactive, no DC injected current. • Time limited DC injection •...
  • Page 65 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Function menu FUn- (continued) FLt- Jog assignment • COM- This parameter provides step by step control of motor running, using a logic input associated with a 2 and 3-wire control logic input.
  • Page 66 Configuration Mode - Complete menu (FULL) I-O- Preset speeds drC- CtL- 2, 4, or 8 speeds can be preset, requiring 1, 2 or 3 logic inputs respectively FUN- Combination table for preset speed inputs FLt- COM- 8 speeds 4 speeds 2 speeds Speed reference LI (PS8)
  • Page 67 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- (continued) FLt- Preset speed menu PSS- COM- 2 Preset speeds • • Function inactive • L1h: LI1 active high • L2h: LI2 active high •...
  • Page 68 Configuration Mode - Complete menu (FULL) I-O- drC- PID diagram CtL- FUN- FLt- COM- Auto Man. Preset speed...
  • Page 69 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- (continued) FLt- PID menu PId- COM- • PID feedback assignment • Not assigned • Terminal. Choice not possible if Fr1 is set to AI1 PID proportional gain •...
  • Page 70 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- (continued) FLt- PID menu PId- COM- (continued) 4 preset PID assignment • Visible only if PID feedback assignment page is not set to nO. •...
  • Page 71 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Function menu FUn- (continued) FLt- PID menu PId- COM- (continued) • Acceleration 2 0.0 to 999.9 s 5.0 s This parameter is active only when the system is starting. Second acceleration ramp time, adjustable from 0.1 to 999.9 s Time to accelerate from 0 to the Rated motor frequency...
  • Page 72 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- (continued) FLt- PID menu PId- COM- (continued) PID wake up level • 0 to 100% If PID functions and Low speed operating timetLS are set at the same time, the PID regulator may try to set a speed lower than LSP, resulting in unwanted operation consisting of start, running at LSP, stopping...
  • Page 73 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- (continued) FLt- Current limitation menu CLI- COM- current limitation commutation • Assignment • Function inactive. • L1H: LI1 active high • L2H: LI2 active high •...
  • Page 74 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Function menu FUn- (continued) FLt- Speed limit menu SPL- COM- 0 Hz to HSP 0 Hz Low speed • Motor frequency at minimum reference. This parameter is already included in "my menu"...
  • Page 75 Configuration Mode - Complete menu (FULL) I-O- drC- High speed configuration CtL- The logic inputs enable selection of the desired high speed. FUN- Desired Setting FLt- High speed Parameter State COM- assigned HSP2 HSP3 assigned assigned HSP4 assigned Code Name/Description Adjustment range Factory setting Function menu...
  • Page 76 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Fault detection management menu FLt- FLt- • Detected fault reset assignment COM- Manual fault reset. • Function inactive • L1h: LI1 active high • L2h: LI2 active high •...
  • Page 77 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Fault detection management menu FLt- (continued) FLt- • Catch on the fly COM- Used to enable a smooth restart if the run command is maintained after the following events: •...
  • Page 78 Configuration Mode - Complete menu (FULL) I-O- drC- Motor thermal protection CtL- Function: FUN- Thermal protection by calculating the I FLt- • Naturally-cooled motors: COM- The tripping curves depend on the motor frequency. • Force-cooled motors: Only the 50 Hz tripping curve needs to be considered, regardless of the motor frequency. Trip time in seconds Motor current/ItH CAUTION...
  • Page 79 • drive rating Invisible if drive rating is F1 and factory setting is Invisible if drive rating is ER12-...KU/BU and ER12-...K/B. In this case no factory settings appears. • Fault ignored. To be used when the drive is supplied via a single phase supply.
  • Page 80 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Fault detection management menu FLt- (continued) FLt- Undervoltage menu USb- COM- • Undervoltage fault management Behavior of the drive in the event of an undervoltage •...
  • Page 81 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Fault detection management menu FLt- (continued) FLt- • Modbus fault management COM- Behavior of the drive in the event of a communication fault with integrated Modbus. •...
  • Page 82 Configuration Mode - Complete menu (FULL) I-O- drC- CtL- Code Name/Description Adjustment range Factory setting FUN- Communication menu COM- FLt- Modbus address • OFF to 247 COM- Modbus address is adjustable from to 247. When OFF, communication is not active. Modbus baud rate •...
  • Page 83 Configuration Mode - Complete menu (FULL) I-O- drC- Code Name/Description Adjustment range Factory setting CtL- FUN- Communication menu COM- (continued) FLt- Input scanner access menu ISA- COM- (values are expressed in hexadecimal) ETA VALUE • Com scanner read address value 1 Value of the 1st input word RFRD value •...

  • Page 84: Maintenance

    Maintenance Servicing The ER12 does not require any preventive maintenance. However, it is advisable to perform the following checks regularly: • The condition and tightness of connections. • Ensure that the temperature around the unit remains at an acceptable level and that ventilation is effective. Average service life of fans: 10 years.

  • Page 85: Migration Er11 - Er12

    Migration ER11 - ER12 Functions - Comparison with ER11 versions Function ER11 ER12 Comments, Action Code Value Code Value Frequency No change. High Speed No change. LI operation Logic - (Positive) "Depend on LI assignment on each function (LI1 to LI4 L or H).

  • Page 86: Diagnostics And Troubleshooting

    • If the display does not light up, check the power supply to the drive (ground and input phases connection, see page 19). • The assignment of the "Fast stop" or "Freewheel" functions will prevent the drive starting if the corresponding logic inputs are not powered up. The ER12 then displays in freewheel stop and in fast stop, it will display en freewhell stop.
  • Page 87 SCF4 IGBT short circuit • Internal power component short • Contact your local BLEMO representative circuit detected at power on Overspeed • Instability • Check the motor • Overspeed associated with the •...
  • Page 88 Diagnostics and Troubleshooting Fault detection codes that can be reset with the automatic restart function, after the cause has disappeared These faults can also be reset by turning on and off or by means of a logic input (parameter Detected fault reset assignment page 77).
  • Page 89 • Use a 3-phase line supply. • Failure of one phase • Disable the fault by setting Input Phase loss detection • 3-phase ER12 used on a single- page = nO. phase line supply • Unbalanced load • This protection only operates with...
  • Page 90 • If the fault remains after reverting to the factory settings, • The current configuration of contact your local BLEMO representative customer parameters is inconsistent Invalid configuration • Invalid configuration •...
  • Page 91 Diagnostics and Troubleshooting Remote keypad error messages Code Name Description On initializing itself • Micro controller initializing InIt • Communication configuration search COM.E Communication error • It has 50ms time out error. • This message is shown after 220 retry attempts. A-17 Key alarm •...

  • Page 92: Application Notes

    Application notes 2-wire control (source) 1. Connect the ground terminal to the grounding screws located below the output terminals. 2. Connect the power terminals. 3. Connect the logic inputs. 4. Turn on the drive without giving a run command. 5. Assign factory settings to the drive, Factory / recall customer parameter set page set to...
  • Page 93 Applicative notes Speed control 0-20 mA (source) 1. Connect the ground terminal to the grounding screws located below the output terminals. 2. Connect the power terminals. 3. Connect the logic input LI1 and analog input AI1. 4. Turn on the drive without giving a run command. 5.
  • Page 94 Applicative notes 4 Preset speeds (source) Important: Please refer to Function compatibility table page 35. 1. Connect the ground terminal to the grounding screws located below the output terminals. 2. Connect the power terminals. 3. Connect the logic inputs. 4. Turn on the drive without giving a run command. 5.
  • Page 95 Applicative notes Preset speed 3 page to 30 Hz.
  • Page 96 Applicative notes 4 Preset speeds (source) continued Preset speed 4 page to 40 Hz. Output frequency SP4 - 40 Hz SP3 - 30 Hz SP2 - 20 Hz Forward (LI1) PS2 (LI2) PS4 (LI3)
  • Page 97 Applicative notes Terminals command channel with Modbus reference channel Important: Please refer to Function compatibility table page 35. 1. Connect the ground terminal to the grounding screws located below the output terminals. 2. Connect the power terminals. 3. Connect the logic input LI1 and plug RJ45 cable to the Modbus socket. 4.

  • Page 98: Recommended Branch Circuit Protection

    Reference Voltage Input Output Branch circuit protection Rating withstand rating Interrupt rating (Z1) (Z2) (X) (2) ER12-0.18KU 100 - 120 Ferraz HSJ ER12-0.37KU/BU 100 - 120 Ferraz HSJ ER12-0.75KU 100 - 120 Ferraz HSJ ER12-0.18K 200 - 240 Fast Acting Class CC Ferraz ATDR ER12-0.37K/B...

  • Page 99: Organization Tree

    Organization tree...

  • Page 100: Parameter Index

    Parameter index User Code Page Name Unit Possible value / Function Factory setting setting Acceleration 2 999.9 Acceleration 3.0 s 999.9 Automatic DC injection Continuous Modbus address Voltage AIIt AI1 type Voltage Current AIU1 Analog input virtual Motor current Output frequency Ramp output PID reference AO1 assignment...
  • Page 101 Parameter index User Code Page Name Unit Possible value / Function Factory setting setting Current limitation 2 1.5 A 0.25 Code disabled HMI Password Code activated r0t0 rOt1 COM1 Modbus communication status r1t0 r1t1 according to Rated motor cos phi drive rating AI1 current scaling parameter CrH1...
  • Page 102 Parameter index User Code Page Name Unit Possible value / Function Factory setting setting Terminal FLOC Forced local reference Jog dial AIU1 Catch on the fly Terminal Reference channel 1 Modbus Jog dial AIU1 Terminal Speed reference Modbus Jog dial 50 or 60 Hz Rated motor frequency (to bFr)
  • Page 103 Parameter index User Code Page Name Unit Possible value / Function Factory setting setting L1h: LI1 active high L2h: LI2 active high L3h: LI3 active high current limitation L4h: LI4 active high commutation L1L: LI1 active low L2L: LI2 active low L3L: LI3 active low L4L: LI4 active low Motor current...
  • Page 104 Parameter index User Code Page Name Unit Possible value / Function Factory setting setting according to Rated motor current A (1) 0.25 drive rating Drive Power rating Com scanner read address value 1 Com scanner read address value 2 Com scanner read address value 3 Com scanner read address value 4...
  • Page 105 Parameter index Factory User Code Page Name Unit Possible value / Function setting setting PID feedback assignment Terminal Activation internal PID reference PID manual reference Terminal 2 preset PID assignment 4 preset PID assignment as Pr2 PID reference ramp 99.9 L1h: LI1 active high 2 Preset speeds L2h: LI2 active high...
  • Page 106 Parameter index User Code Page Name Unit Possible value / Function Factory setting setting 2 preset PID reference 3 preset PID reference 4 preset PID reference PID reference PID error PID Feedback PID proportional gain 0.01 PID max value reference % PID 100% Internal PID reference...
  • Page 107 Parameter index User Code Page Name Unit Possible value / Function Factory setting setting L1h: LI1 active high 2 HSP assignment L2h: LI2 active high L3h: LI3 active high L4h: LI4 active high 4 HSP assignment Modbus fault management % of Slip compensation 100% Preset speed 2...
  • Page 108 Parameter index User Code Page Name Unit Possible value / Function Factory setting setting Automatic DC injection time 0.5 s tdC1 Modbus format 60 or 72 Hz Maximum frequency (to bFr) Drive thermal state Motor thermal state Self-ventilated Motor protection type Moto-ventilated Low speed operating time 999.9...
