INSTALLATION, OPERATION AND MAINTENANCE
EC_MAN_IST_022
Rev. 5
MANUAL E-MOTION AUTOMATIC CONTROL
EN
E-MOTION

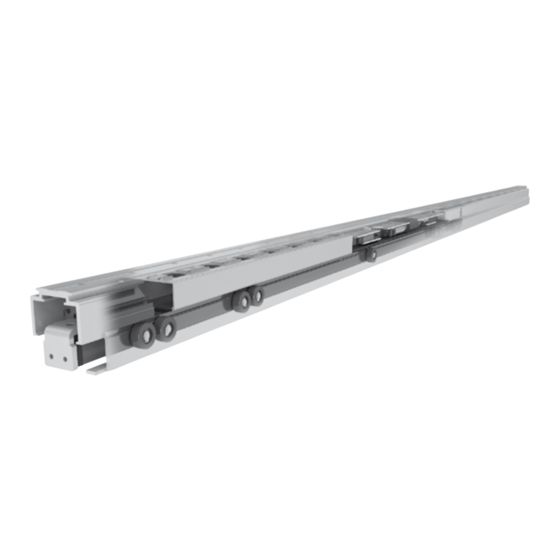

Automatic control E-MOTION for a single automatic sliding door Pocket
sliding system ECLISSE UNICO, ECLISSE LUCE UNICO ECLISSE UNILATERALE,
ECLISSE EWOLUTO® SCORREVOLE
INSTALLATION, OPERATION AND
MAINTENANCE MANUAL
Advertisement
Table of Contents
Related Manuals for eclisse E-MOTION
Summary of Contents for eclisse E-MOTION
- Page 1 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL E-MOTION Automatic control E-MOTION for a single automatic sliding door Pocket sliding system ECLISSE UNICO, ECLISSE LUCE UNICO ECLISSE UNILATERALE, ECLISSE EWOLUTO® SCORREVOLE INSTALLATION, OPERATION AND MAINTENANCE MANUAL...
-
Page 2: Installation Phases
INTRODUCTION Dear client, We would like to thank you for trusting ECLISSE, which you have shown in purchasing the innovative automatic control E-MOTION, which can be installed in our pocket systems ECLISSE UNICO, ECLISSE LUCE UNICO, ECLISSE UNILATERALE, ECLISSE EWOLUTO® SCORREVOLE. - Page 3 This manual aims to provide all the necessary instructions to ensure proper installation and maintenance. ECLISSE S.r.l. reserves the right to modify and improve the manual and the described product at any time without notice.
- Page 4 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 1. 2 WARNINGS FOR CORRECT INSTALLATION OF THE AUTOMATION: Verify that the ductwork for the passage of the conductors is carried out correctly; if it is possible to prepare the wiring.
- Page 5 It is forbidden to stay in the sliding zone of the doors or operate near the moving mechanic parts. 1. 4 WARRANTIES The warranty is void if the use of the E-MOTION automatic control does not comply with the instructions and standards described in this manual and if components, accessories, spare parts...
- Page 6 0,40 0,33 0,28 0,25 0,23 0,21 0,20 2. 2 TECHNICAL DATA E-MOTION CONTROL - ELECTRICAL CHARACTERISTICS ELECTRICAL CHARACTERISTICS Input Voltage: 230 V AC – 50/60 Hz Current: 1 A Fuse protection: 2,5 A Power cable 3x1,0 mm Length: 2 m...
- Page 7 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 1 ON/OFF Button 9 Orange led 17 Protection fuse 2 A 2 Power supply input 220V-50 Hz (button signal active) 18 Operation 3 Accessories circuit connection 10 Green led...
- Page 8 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL ELECTRICAL CHARACTERISTICS POWER SUPPLY LINEAR MOTOR Voltage 230 V AC Type: “PMSM” Permanent magnet synchronous motor Power 120 W Iron core. 3 Phases - 4 Poles - 24 V...
- Page 9 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL DEMOLITION AND DISPOSAL PACKAGING DISPOSAL Package components can be assimilated to municipal waste and they can be disposed of without any difficulty, simply doing the waste separation for recycling.
- Page 10 INTRODUCTION This part of the manual is dedicated to qualified installers only. Before installing the E-MOTION automatic control, you must read and fully understand this part of the manual. The installation of the E-MOTION automatic control must be performed by competent technical staff in possession of technical tools required by the law in the place of installation.
-
Page 11: Table Of Contents
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 4. 3 PRE-INSTALLATION OPERATIONS Read the manual before installation: it is important for your safety to respect the instructions in this document. Incorrect installation can cause serious injury. Make sure the installation area is closed to unauthorized persons. -
Page 12: Track Disassembly
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL TRACK DISASSEMBLY... - Page 13 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL TRACK DISASSEMBLY If needed...
-
Page 14: E-Motion Automatic Control Description
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL E-MOTION AUTOMATIC CONTROL DESCRIPTION Principal profile Power electronic Hung-door track Accessories electronic Stop – closing Permanent magnets’ array Stop – opening Lower cover Linear motor 225x18x26 4P 11a Wooden door adjustable suspension... - Page 15 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL ELECTRICAL SPECIFICATIONS - see pag. 8...
-
Page 16: Cover Disassembly
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL COVER DISASSEMBLY Do not disassemble... -
Page 17: Control Installation In The Pocket System
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL CONTROL INSTALLATION IN THE POCKET SYSTEM... - Page 18 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL CONTROL INSTALLATION IN THE POCKET SYSTEM 230 V AC Buttons Power supply 230 V AC Power supply Green-Yellow EARTH Blue NEUTER Brown PHASE Buttons Brown Blue...
-
Page 19: Electronic Components
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL ELECTRONIC COMPONENTS Operating Rugulation of sensitivity force Door open time Door modes Obstacles detection adjustment weight Switch Switch Operating To confirm the change Operating modes modes Customer Mode Automatic... -
Page 20: Accessories Test And Connection
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL ACCESSORIES TEST AND CONNECTION Internal Radar 230 V AC White Yellow Grey Grey... - Page 21 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL ACCESSORIES TEST AND CONNECTION External Radar 230 V AC White Yellow Grey Grey...
-
Page 22: Functioning Test
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL FUNCTIONING TEST ADVICE: It is raccomended to test the automatic control without the activation elements (button, radar). In case of successful operation, connect the accessories and make the test again. This method allows to detect a potential malfunction. -
Page 23: Cover Assembly
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL COVER ASSEMBLY... -
Page 24: Wooden Door Installation
MANUAL E-MOTION AUTOMATIC CONTROL 8a. WOODEN DOOR INSTALLATION Sliding pocket door PREPARED for E-MOTION Sliding pocket door NOT PREPARED for E-MOTION HP Door panel height = H2 - 37 mm HP Door panel height = H2 - 62 mm LP Door panel width = L + 35 mm... - Page 25 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 8a. WOODEN DOOR INSTALLATION...
- Page 26 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 8a. WOODEN DOOR INSTALLATION...
-
Page 27: Glass Door Installation
MANUAL E-MOTION AUTOMATIC CONTROL 8b. GLASS DOOR INSTALLATION Sliding pocket door PREPARED for E-MOTION Sliding pocket door NOT PREPARED for E-MOTION HP Door panel height = H2 - 28 mm HP Door panel height = H2 - 53 mm LP Door panel width = L + 35 mm... - Page 28 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 8b. GLASS DOOR INSTALLATION...
- Page 29 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 8b. GLASS DOOR INSTALLATION...
-
Page 30: Commissioning On
INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL COMMISSIONING ON 230 V AC Self-regulating... - Page 31 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL PARTE II. USE AND MAINTENANCE MANUAL 5. 1 DETAILS This part of the manual is dedicated ONLY to the final user. Maintenance operations that are not described in this part of the manual must be executed ONLY by qualified and competent technical staff with technical instruments provided of by the law in force in the installation country.
- Page 32 MANUAL E-MOTION AUTOMATIC CONTROL 5. 2. 2 RESIDUAL RISKS Even if E-MOTION automatic control has been designed and developed in order to have a safe functioning and even if all necessary protection measures has been taken, some residual risks may persist.
- Page 33 It includes the following characteristics: Plug & Play E-MOTION is provided assembled and ready to be installed. You just need to connect the guide to the AC 230V power supply and push the “ON” button to set it going. ...
- Page 34 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 5. 3. 2. 2 COMPLETE FUNCTIONING (with Remote Control and Electromechanical Block Optional) Opened Automatic Exit only Door closed 1. Opened: By pushing the button 1 on the remote control, the door remains opened. This mode allows the door to be opened and closed manually.
- Page 35 5. 3. 2. 3 FUNCTIONING IN CASE OF POWER FAILURE 1. Manual open: In case of power failure E-MOTION automatic control allows the door to be opened manually just with a push, obtaining a simple opening. 5. 3. 3 USE RESTRICTION It’s useful to show, assist and advise the client on the correct use of internal sliding doors with...
- Page 36 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 5. 5 PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSE SOLUTION The door doesn’t move correctly The door is too heavy. Change that door with a lighter (self-regulation). one. The door installation is not correct Verify that the door installation is (it isn’t perpendicular to the floor,...
- Page 37 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 5. 6 FINAL CHECK AND TUNING OF E-MOTION CONTROL To be completed by the installer Self-regulating Basic functioning Automatic Push & Go Button Button + 5 sec - Opened...
- Page 38 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL DECLARATION OF CONFORMITY OF INSTALLATION 5. 7 To be completed by the installer INSTALLATION DECLARATION OF CONFORMITY CE (Directive 2006/42/CE - Directive on Machinery) Installer: Address: I declare: Door description:...
- Page 39 INSTALLATION, OPERATION AND MAINTENANCE EC_MAN_IST_022 Rev. 5 MANUAL E-MOTION AUTOMATIC CONTROL 5. 8 DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY (Directive 2006/42/CE - Directive on Machinery) I declare, under my own supervision, that the described model and product possess the essential health...
- Page 40 © ECLISSE, all rights reserved. The use, filing and total or partial reproduction, using any mechanical or electronic means, of texts, drawings and pictures contained in this publication is strictly prohibited, unless specifically approved in writing by ECLISSE.
