eclisse E-MOTION Operating, Use And Maintenance Manual

For a single automatic sliding door pocket sliding system
Hide thumbs Also See for E-MOTION:
Table of Contents

Advertisement

Quick Links

Download this manual

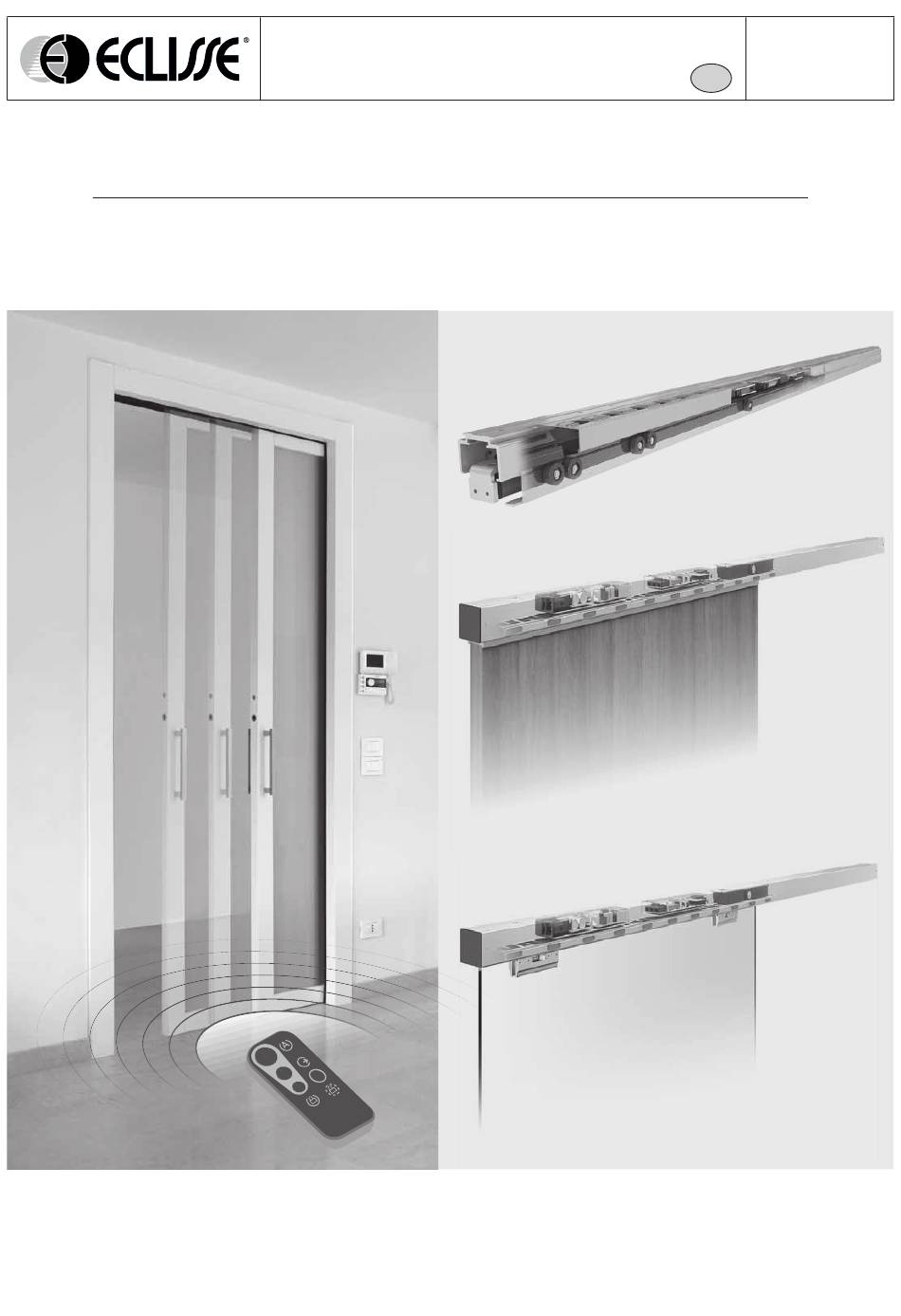

OPERATING MANUAL, USE AND MAINTENANCE
EC_MAN_IST_020
AUTOMATIC GUIDE E-MOTION
Rev. 6
GB
E-MOTION

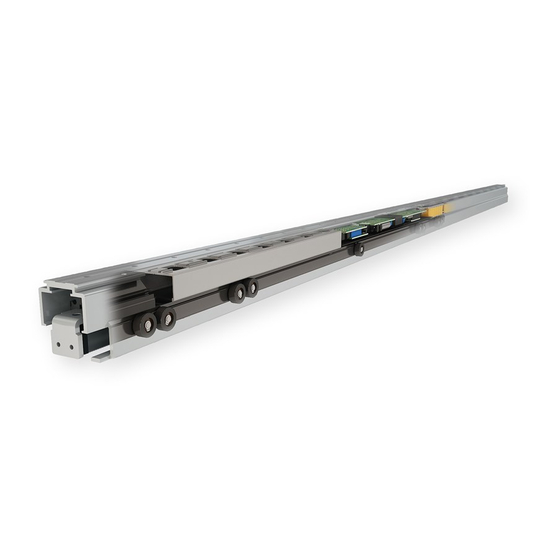

Automatic guide E-MOTION for a single automatic sliding door Pocket sliding system
ECLISSE UNICO, ECLISSE LUCE SD, ECLISSE UNILATERALE, ECLISSE EWOLUTO®
OPERATING MANUAL
USE AND MAINTENANCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-MOTION and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eclisse E-MOTION

Summary of Contents for eclisse E-MOTION

  • Page 1 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 E-MOTION Automatic guide E-MOTION for a single automatic sliding door Pocket sliding system ECLISSE UNICO, ECLISSE LUCE SD, ECLISSE UNILATERALE, ECLISSE EWOLUTO® OPERATING MANUAL USE AND MAINTENANCE...
  • Page 2 ....................... . INTRODUCTION Dear client, We would like to thank you for your trust in ECLISSE, for buying this new and innovative automatic guide, E-MOTION, which can be installed in our pocket systems ECLISSE UNICO, LUCE SD, UNILATERALE, EWOLUTO®.

  • Page 3: General Warnings

    The data presented in this document has been prepared and controlled carefully, but ECLISSE Srl deny liability for any inaccuracies due to press or transcription mistakes or excisions. E-MOTION automatic guide, when installed in pocket system, is to all intents and purposes a machine, as described in Directive 2006/42/EC on machinery.
  • Page 4 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 1. 2 WARNINGS FOR CORRECT INSTALLATION OF THE AUTOMATION: Ensure that the conduits to run the cables has been installed correctly. If possible, prepare the cabling. Ensure that the automation, the floor, the door guide and the surface of the underbody are level and squared with the counter-frame.

  • Page 5: General Rules

    E-MOTION automatic guide has been designed and developed respecting all Norma EN 16005 "Automatic pedestrian doors-Safety in use" requirements. E-MOTION has been designed to work correctly with a maximum weight of 80 kg per door. ECLISSE Srl denies any liability for any harm or damage.
  • Page 6 0,33 0,28 0,25 0,23 0,21 0,20 2. 2 TECHNICAL DATA, E-MOTION GUIDE – ELECTRIC CHARACTERISTICS ELECTRIC CHARACTERISTICS Input Voltage: 230 V AC – 50/60 Hz Intensity: 1 A Fuse protection: 2,5 A Input cable: 3x1,0 mm2 Length: 2 m. Power / Consumption...
  • Page 7 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 1 ON/OFF Button 9 Orange led (button signal active) 18 Operation 2 Power supply input 220V-50 Hz 10 Green led (external radar signal 19 Regulation of opening speed 3 Accessories circuit connection...
  • Page 8 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 ELECTRIC CHARACTERISTICS POWER SUPPLY LINEAR MOTOR 230 V AC “PMSM” Permanent magnet synchronous motor Voltage Type: 120 W Iron core. 3 Phases - 4 Poles - 24 V Power...

  • Page 9: Demolition And Disposal

    OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 DEMOLITION AND DISPOSAL PACKAGE DISPOSAL Package components can be assimilated to municipal waste and they can be disposed of without any difficulty, simply doing the waste separation for recycling.

  • Page 10: Risk Analysis

    This part of the manual is dedicated to qualified installers only. Before installing automatic guide E-MOTION this part of the manual must be read and fully understood. The installation of E-MOTION automatic guide must be performed by competent technical staff in possession of technical tools required by the law in the place of installation.
  • Page 11 ........................E-MOTION AUTOMATIC GUIDE DESCRIPTION .
  • Page 12 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 GUIDE DISASSEMBLY...
  • Page 13 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 GUIDE DISASSEMBLY If needed...
  • Page 14 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 E-MOTION AUTOMATIC GUIDE DESCRIPTION Principal profile Power electronic Hung-door track Accessories electronic Stop – closing Permanent magnets’ array Stop – opening 10 Lower cover Linear motor 225x18x26 4P 11a Wooden door adjustable suspension...
  • Page 15 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6...

  • Page 16: Cover Disassembly

    OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 COVER DISASSEMBLY Do not disassembly...
  • Page 17 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 GUIDE INSTALLATION IN THE POCKET SYSTEM...
  • Page 18 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 GUIDE INSTALLATION IN THE POCKET SYSTEM 230 V AC Buttons Power supply 230 V AC Power supply Green-Yellow EARTH Blue NEUTER Brown PHASE Buttons Black...

  • Page 19: Electronic Components

    OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 ELECTRONIC COMPONENTS Automatic mode/Impulse mode Regulation of door opened time Remote mode Regulation of opening speed Low Energy mode Rugulation of sensitivity force - Obstacles detection Parameters memorization Switches...
  • Page 20 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 ACCESSORIES TEST AND CONNECTION Internal radar 230 V AC White Yellow Grey Grey...
  • Page 21 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 ACCESSORIES TEST AND CONNECTION External radar 230 V AC White Yellow Grey Grey...

  • Page 22: Functioning Test

    OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 FUNCTIONING TEST ADVICE: It is raccomended to test the automatic guide without the activation elements (button, radar). In case of successful operation, connect the accessories and make the test again. This method allows to detect a potential malfunction.

  • Page 23: Cover Assembly

    OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 COVER ASSEMBLY...
  • Page 24 Rev. 6 8a. WOODEN DOOR INSTALLATION COUNTERFRAME PREPARED FOR E-MOTION COUNTERFRAME NOT PREPARED FOR E-MOTION HP Door panel height = H2 - 37 mm HP Door panel height = H2 - 62 mm LP Door panel width = L + 35 mm...
  • Page 25 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 8a. WOODEN DOOR INSTALLATION...
  • Page 26 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 8a. WOODEN DOOR INSTALLATION...
  • Page 27 Rev. 6 8b. GLASS DOOR INSTALLATION COUNTERFRAME PREPARED FOR E-MOTION COUNTERFRAME NOT PREPARED FOR E-MOTION HP Door panel height = H2 - 28 mm HP Door panel height = H2 - 53 mm LP Door panel width = L + 35 mm...
  • Page 28 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 8b. GLASS DOOR INSTALLATION...
  • Page 29 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 8b. GLASS DOOR INSTALLATION...
  • Page 30 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 COMMISSIONING ON 230 V AC Auto-learning...
  • Page 31 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 PART II. USE AND MAINTENANCE MANUAL 5. 1 DETAILS This part of the manual is dedicated ONLY to the final user. Maintenance operations that are not described in this part of the manual must be executed ONLY by qualified and competent technical staff with technical instruments provided of by the law in force in the installation country.

  • Page 32: Residual Risks

    AUTOMATIC GUIDE E-MOTION Rev. 6 5. 2. 2 RESIDUAL RISKS Even if E-MOTION automatic guide has been designed and developed in order to have a safe functioning and even if all necessary protection measures has been taken, some residual risks may persist.

  • Page 33: Use Instructions

    It includes the following characteristics:  Plug & Play E-MOTION is provided assembled and ready to be installed. You just need to connect the guide to the AC 230V power supply and push the “ON” button to set it going. ...
  • Page 34 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 5. 3. 2. 2 COMPLETE FUNCTIONING (with Remote Control and Electromechanical Block Optional) Opened Automatic Exit only Door colsed 1. Opened: Keeping the button 1 pushed until the door is completely opened, the door remains opened.

  • Page 35: Maintenance

    5. 3. 2. 3 FUNCTIONING IN CASE OF POWER FAILURE 1. Manual open In case of power failure E-MOTION automatic guide allows the door to be opened manually just with a push, obtaining a simple opening. 5. 3. 3 USE RESTRICTION It’s useful to show, assist and advise the client on the correct use of internal sliding doors with...
  • Page 36 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 5. 5 PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSE SOLUTION The door doesn’t move correctly The door is too heavy. Change that door with a lighter (self-regulation). one. The door installation is not correct Verify that the door installation is (it isn’t perpendicular to the floor,...
  • Page 37 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 5. 6 FINAL CHECK AND CONFIGURATION To be completed by the installer Auto learning Basic functioning Automatic Push & Go Button Button + 5 sec - Opened Complete functioning...
  • Page 38 OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 5. 7 INSTALLATION DECLARATION OF CONFORMITY CE To be completed by the installer INSTALLATION DECLARATION OF CONFORMITY CE ( Directive 2006/42/CE - Directive on Machinery -) Installer: Address: I declare:...

  • Page 39: Conformance Statement

    OPERATING MANUAL, USE AND MAINTENANCE EC_MAN_IST_020 AUTOMATIC GUIDE E-MOTION Rev. 6 5. 8 CONFORMANCE STATEMENT CONFORMANCE STATEMENT (Directive 2006/42/CE - Directive on Machinery) I declare, under my own supervision, that the described model and product possess the essential health and safety requirements as expected in the following directives for the law harmonisation at European...
  • Page 40 EURO ARCHITECTURAL, LCC - Tel.:001 800 614 1474 - info@euro-arch.com - www.eclisse.us BUILDING INNOVATIONS LTD - Tel.:00972 3 5136100 - Fax:00972 3 6815308 - ola-g@h-g-trading.co.il - www.h-g-trading.co.il VISHERA-GROUP - Tel. 007 495 518 96 89; 077 495 518 96 80; Fax: 007 495 518 96 85 - info@eclisse.ru - www.eclisse.ru www.eclisseworld.com ©...
